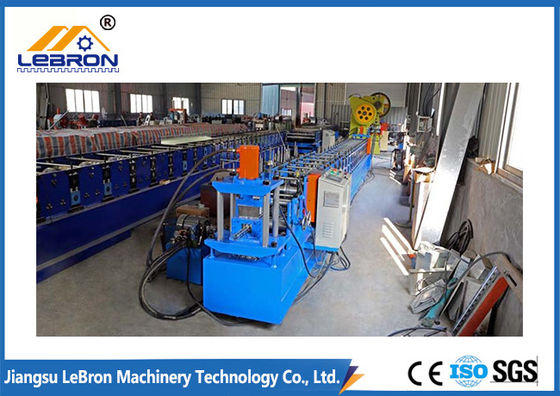

15m/Min GCr15 Pop Channel Making Machine 50mm Quenched Shaft

15m/Min GCr15 Pop Channel Making Machine 50mm Quenched Shaft
15m/Min GCr15 Pop Channel Making Machine 50mm Quenched Shaft

Large Image :  15m/Min GCr15 Pop Channel Making Machine 50mm Quenched Shaft

Product Details:
Place of Origin: Wuxi City, Jiangsu
Brand Name: Lebron-Machinery
Certification: ISO/CE
Model Number: LBM-SCM-016
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD60000~USD85000 per Set
Packaging Details: Standard export packing with each machine tied and protected in the container
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 20 Sets per Month
Detailed Product Description
Main Power: 30 Kw Suitable Material: Galvanized Steel, Cold-rolled Strip
Thickness: 1.5~2.5mm Roller: GCr15 Bearing Steel
Roller Station: 18 Stations Shaft: No. 45 Steel, Quenched
High Light:

GCr15 channel making machine


GCr15 pop channel machine


15m/min channel making machine

Cr12 Heat Treatment Automatic Strut Channel Roll Forming For 0.3 - 0.8 Mm


1. Installation and training:

A.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,

and also trainyour workers/technician face to face.

B.Without visiting, we will send you user manual and video to teach you to install and operate.

C.If buyer needs our technician to go to your local factory, please arrange board and lodging and

other necessary things.

2. after Service
A.One year guarantee for whole machine.
B.24 hours technical support by email or phone call.
C.If there is any problem found of the machine, we will repair it for free in one year.


1. Description of Strut Channel Roll Forming Machine

Briefly, a strut channel roll forming machine is also called Uni strut channel roll forming machine, it is used for produce the steel channels (such as supports wiring, plumbing, or mechanical components) which are usually used in air-conditioning and ventilation systems. Actually, there are standard dimensions for common Uni struct channels, i.e. 21*41, 41*41, and 41*61, etc. Besides, there are continuous punching holes on the bottom of the channels for joints. A roll forming equipment that manufactures strut channels is strut channel roll forming machine


2. Major Technical Parameters

Material Colored steel sheet, galvanized steel sheet, aluminum sheet
Thickness of coil sheet 0.3-0.8 mm
Roller material High grade 45# forged steel, surface hard chromium plating
Shaft material High grade 45# forged steel
Cutting blade Cr12 mould steel with quenched treatment
Diameter of shaft 50mm or as your requirement
Main frame 300 H steel
Forming steps 14 stations
Productivity 10-15m/min
Hydraulic station power 5.5 KW
Hydraulic pressure 10-12MPa
Appearance size 6.5*1.5*1.5 m
Hydraulic oil 40# hydraulic oil
Electric tension 380V 50 Hz 3 Phase or as your requirement
Cut Mode Hydraulic forming after cutting off
Cutter materia Cr12 Heat Treatment
Electronic control system PLC, Touch Screen, Encoding counter
Color Blue, green or yellow or as your requirement
Rolling material 45# steel,roller surfaces polishing, hard plating


Main Features

1. This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.

2. Rollforming process:uncoiler, rollforming, forming step effect, cut to length.

3. Fully Automatic Control System with PLC.
4. Easy operation: Key in the length and quantity on the control panel.
5. Two years warranty for free, and beyond two years if any part broken, tell us and pay us we delievery any part u need. And support technical skills for machine for whole life.


Install and Training:

If buyers come to our factory to inspect, the training to install and operate is provided face to face.

If not, manual and video are provided to show how to install and operate.


After-sale Service:

a. The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller.

When the technique men go to the buyer's place to debug the machines, the buyer should pay the

expense of accommodation, and round-trip tickets for the seller’s men. and pay the technician USD80 per day.

b. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.


5. FAQ

1. Q: Are you a manufacturer, trading company?

A: We are a manufacturer, and we have built up our company since 2007.


2. Q: Where is your factory located?

A: Our factory address is: No. 551, the Zhenze West Road, Huazhuang Street, Binhu District, Wuxi City, Jiangsu, China


3. Q: How can I get to your factory?

A: Our factory is near Shanghai Airport, we can pick you up at the airport. Or you can by plane direct to Wuxi airport. We can pick you up.


4. Q: If I will need to stay in your place for a few days, is that possible to book the hotel for me?

A: It’s always my pleasure, hotel booking service is available.






15m/Min GCr15 Pop Channel Making Machine 50mm Quenched Shaft 0


15m/Min GCr15 Pop Channel Making Machine 50mm Quenched Shaft 1
