Product Details:
|
Machine Size: | 4900*1000*1500mm | Machine Weight: | 5000kg |
---|---|---|---|
Suitable Material: | G300-G550Galvanzied Coils And Aluzinc | Thickness: | 0.75-1.2mm |
Size: | 89*41mm | Main Motor: | 7.5kw |
High Light: | metal framing machine,light steel frame machine |

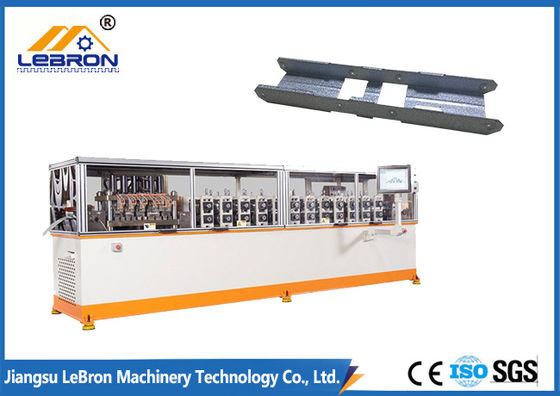

7.5Kw main motor power blue light gauge steel framing machine prefabricate house
1. Description of Light Gauge Steel Framing Machine
1). Automatic vertical single head uncoiler: 1 set
a.Using hand tightening design, Coil ID:460mm-520mm, coil OD:1400mm, Loading:2000kg
b.Frequency conversion automatic uncoiling
c.Power:2.2KW
2). Frame: Using steel plate welding, the overall annealing to stress treatment, to ensure long-term use without deformation. Adopt CNC machining center processing to ensure dimensional accuracy.
3). Arch: the main arch is box structure, box is CNC machining center processing, auxiliary arch is independent structure.
4). Rollingmould: Cr12Mov die steel, after vacuum hardened HRC60-62 ° to refine the hole and the end of the face, CNC lathe finishing the roller surface.
5). Main axis: 40Cr tool steel, quenching and tempering heat treatment, external grinding finishing.
6). Drive system: Servo motor and reducer linkage, between the wheel with the precision hard tooth gear oil immersion operation, to ensure that the long-time service time.
7). . Hydraulic system
a. Energy storage structure, energy saving, and environmental protection
b. Hydraulic components: Germany Bosch Rexroth products
8). Punchingmould
Die model material is used S45C tool steel, mold insert with D2 or SKD11 high-quality steel, mold parts with Japan's rice products.
9). Electrical parts
a. Original imported motion controller and PLC
b.. International first-class brand low voltage components
10). CNC inkjet printer
a. Configuration of the industrial-grade high-quality solvent-based electronic inkjet printer, print writing clear and solid, easy to install
b.Common solvent-based inks, easy to buy, and economical to use
c.Automatically prints automatically generated by the design software, without human intervention
d. The control system can add any additional information, such as, company name, logo, websites and so on.
2. Major technical parameters of the Light Gauge Steel Framing Machine
No. | Item | Description |
1 | Machine Size | 4900*1000*1500mm |
2 | Machine Weight | 5000kg |
3 | Suitable Material | G300-G550Galvanzied coils and Aluzinc |
4 | Thickness | 0.75-1.2mm |
5 | Size | 89*41mm |
6 | Feeding material width | 182mm |
7 | Standard Producing speed | 300-700m/h |
8 | Max producing speed | 1500m/h |
9 | Main motor | 7.5kw |
10 | Hydraulic station | 5.5kw |
11 | Voltage | 380V 50Hz 3phases |
12 | Hydraulic tank capacity | 100L |
13 | Hydraulic cooling | Fan cooling |
14 | Hydraulic pressure | computer set |
15 | Frame and punching dies | Screw hole, chamfer, slot hole, flange cut, pipe hole, suspension, cutting |
16 | De-colier | Automatic decoiler |
3. Introduction of VERTEX BD 2018 design software
No. | Description |
1 | The wall, floor, and roof structure is produced automatically, saving design time |
2 | Automatic 3D molding, insure 100% accuracy |
3 | With analysis project function, the software can calculate bearing capacity |
4 | Create framework 3D map and 3D decoration view |
5 | The whole building frame can be resolve to independent unit drawing |
6 | Calculate the bill of material, including the needed steel, plates, thermal insulation material, doors and windows, screws and other matching material |
7 | Create the processed data including the marked workpiece, docking with the equipment |
8 | Software maintenance and training fee |
