Full Automatic Strut Channel Roll Forming Machine , Solar Support Channel Roll Forming Machine

Description
Suitable Material: GI, GL, Al, CR Coil Or Strip Thickness: 2.0/2.5mm
Profile: U/C Channel Machine Weight: Approx 14 Ton
Frame: 400# H Steel Drive Mode: Differential Box Transmission
High Light:

single layer roll forming machine

,

steel roll forming machine

Hydraulic Cutter Solar Support Strut Channel Roll Forming Machine Full Automatic





1. Description of strut channel roll forming machine



Strut channel is a standardized formed structural system used in the construction and electrical industries for light structural support, often for supporting wiring, plumbing, or mechanical components such as air conditioning or ventilation systems.



A strut is usually formed from a metal sheet, folded over into an open channel shape with inwards-curving lips to provide additional stiffness and as a location to mount interconnecting components. Increasingly, struts are being constructed from fiberglass, a highly corrosion-resistant material that's known for its lightweight strength and rigidity.[4] Struts usually have holes of some sort in the base, to facilitate interconnection or fastening strut to underlying building structures.

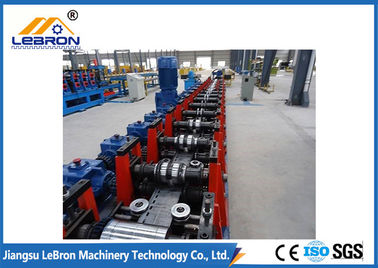

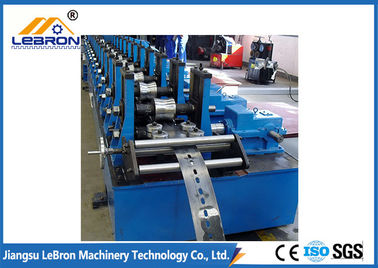

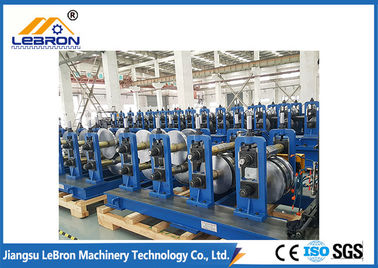

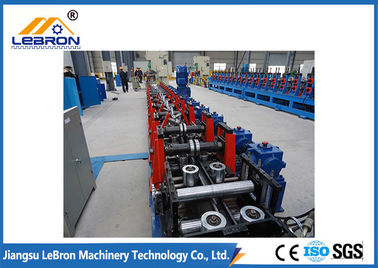

The solar strut channel roll forming machine is designed for producing the main sizes of different strut channel supports. The whole machine unit main including Uncoiler, Entry Beach, Punch unit, Roll Forming Unit, Shearing Mechanism, Hydraulic System, Electric Control System.





2. Main technical parameters of strut channel roll forming machine



No. Item Description
1 Suitable Material GI, GL, Al, CR Coil or Strip
2 Thickness 2.0/2.5mm
3 Profile U/C Channel
4 Machine Weight Approx 14 Ton
5 Frame 400# H steel
6 Drive mode Differential box transmission
7 Material of rollers GCr12MoV
8 Material of shafts 45# steel with tempering
9 Diameter of shafts φ80mm
10 Number of rollers 20 rollers
11 Forming speed 10m/mins
12 Main power 22kw
13 Voltage 380V/50Hz/3Ph
14 Control system PLC control system







3. Main components of strut channel roll forming machine



No. Item Description
1 Manual Uncoiler

Uncoiling width: 1250mm

Inner diameter: 450-550mm

Capacity: 5T

2 Entry Beach guarantee the strips are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
3 Punching system

Hydraulic punching, Cr12 steel, contribute with weld.

Adopt Servo control system.

Power:3kw

4 Main Roll Forming System

Adopt welded sheet structure, motor reducer drive, gear transmission.

Rollers do polishing, hard plating, heat treatment and galvanizational treatment .

The polished surface and the heat treatment towards the molds keep the molding plate surface smooth and not easy to be marked when stamping.

5 Shearing Mechanism

Automatic cutting controlled by PLC

Adopt the hydraulic drive and automatic location to decide the dimension, and cut the target products.

Material of blades: Gcr12 steel, quenched

Hydraulic power

Frame: Pillar style with rack & pinion system

Stroke switch : non-contact photoelectric switch

6 Hydraulic system

Hydraulic oil: 46#

Power: 5.5KW

Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes, two sets of electromagnetism valves

7

Electric Control System



Delta PLC, transducer, touch panel

Other electric element are Delta brand

Equipped movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

8 Counter

One counter gauges length, pulses, and decides length.

Omron encoder for length measurement.





4. Quality Guarantee



The Seller shall guarantee the goods with materials and workmanship in accordance with the required on the drawings, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in drawings and guarantee a good smooth operation for 12 months after the date of shipment (except consumables). This guarantee excludes the parts that require normal plant maintenance. The guarantee is strictly limited to the repairing and the replacing of the mechanical parts supplied by us found to be defective provided that failure has occurred during the ordinary use of the equipment and it is not accepted and claim due to damage to people, property or loss of production.
