Product Details:
|
| Main Power: | 22kw | Roller: | GCr15 Bearing Steel |
|---|---|---|---|
| Roller Station: | 20 Stations | Raw Material: | Galvanized Steel Strip |
| Control System: | Siemens PLC System | Forming Speed: | 8~10m/min |
| Highlight: | automatic roll forming machine,steel roll forming machine |
||

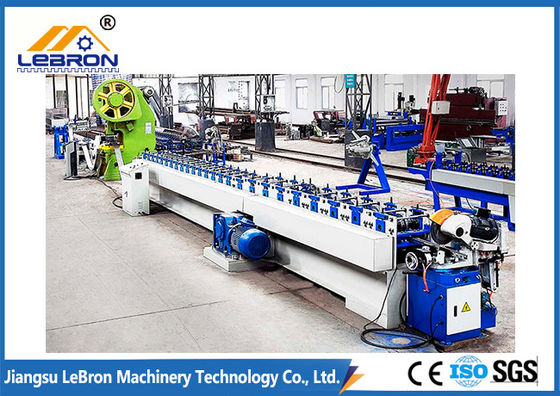

High accuracy hydraulic punch hole strut channel roll forming machine PLC control
1. Description of strut channel roll forming machine
The strut channel roll forming machine is the equipment that produces the strut channels from galvanized steel 1.5mm~2.5mm thickness.
In addition, this strut channel roll forming machine can technically produce 3 profiles by adjusting different spacers between rolling tools. Actually, the key parts in the line are punching unit, roll forming unit and cutting unit. However, the position and working method for punch may vary. Generally, there are two solutions for roll forming the channels, based on the line speed. By this solution, clients can save much money and working areas.
Besides, the main advantage of strut channel in construction is that there are many options available for rapidly and easily connecting lengths together and other items to the strut channel, using various specialized strut-specific fasteners and bolts.
2. Main technical parameters
| No. | Item | Description |
| 1 | Suitable Material | Galvanized Steel Strip |
| 2 | Thickness | 1.5~2.5mm |
| 3 | Leveller | 7 rollers (3 top rollers & 4 bottom rollers) |
| 4 | Roller Stations | 20 stations |
| 5 | Roller Material | GCr15 bearing steel |
| 6 | Shaft Material | 45# steel, quenched |
| 7 | Shaft diameter | 80mm |
| 8 | Forming Speed | 8m~10m/min |
| 9 | Drive method | Gear-box driving |
| 10 | Main Power | 22KW |
| 11 | Control system | Siemens PLC control |
| 12 | Cutting unit | Hydraulic track cutting |
| 13 | Blade material | Cr12MoV steel |
| 14 | Output Length | according to customer's requirement |
3. Main components
| Name | Quantity |
| Uncoiler | 1set |
| Leveller & Servo Feeder | 2sets |
| Main roll forming system | 1set |
| Punching device | 1set |
| Cutting device | 1set |
| Hydraulic station | 1set |
| PLC control system | 1set |
| Support table | 1set |
4. After Sale FAQ:
1). Q: How to acquire for service support?
A: Lebron-Machinery is doing its best to provide timely and convenient service support for the customers, the contents of services including before-sale technical counseling, field installation, operate technical training, application solution training, and troubleshooting support, etc. You can gain service support from our distributors in your region.
2). Q: After purchase Lebron-Machinery’s machine, what kind of training could Lebron-Machinery provide?
A: Lebron-Machinery will provide 7 days’ free field training. The training place can be in Lebron-Machinery company or in places designated by the customer where installation takes place, this can all be predetermined by clients in the contract.
3). Q: What kind of warranty do Lebron-Machinery’s gutter machine provide?
A: Except for the consumables, the whole machine has a one-year limited warranty.
4). Q: After buying Lebron-Machinery’s equipment, is there technician in charge of supporting on-site installation?
A: Yes, if the equipment is directly sold from Lebron-Machinery, we will arrange experienced technicians to support for the installation and collaboration when the machine arrives. If the device is sold by Lebron-Machinery’s distributors, LBM will authorize them to send experienced engineers to support for the installation and collaboration when the machine arrives. Except the contract made other agreement for the installation.
