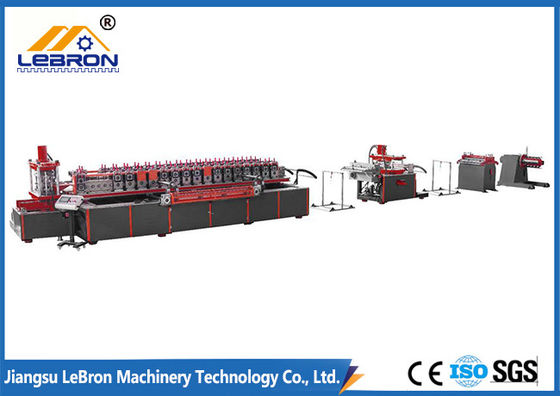

Green Steel Frame Roll Forming Machine 1.5mm - 2.5mm For Solar Panel Frame

Green Steel Frame Roll Forming Machine 1.5mm - 2.5mm For Solar Panel Frame
Green Steel Frame Roll Forming Machine 1.5mm - 2.5mm For Solar Panel Frame Green Steel Frame Roll Forming Machine 1.5mm - 2.5mm For Solar Panel Frame Green Steel Frame Roll Forming Machine 1.5mm - 2.5mm For Solar Panel Frame Green Steel Frame Roll Forming Machine 1.5mm - 2.5mm For Solar Panel Frame

Large Image :  Green Steel Frame Roll Forming Machine 1.5mm - 2.5mm For Solar Panel Frame

Product Details:
Place of Origin: Wuxi City, Jiangsu
Brand Name: Lebron-Machinery
Certification: ISO9001: 2008
Model Number: LBM-SCM-015
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Standard export packing with each machine fixed and protected in the container
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 25 Sets per Month

Green Steel Frame Roll Forming Machine 1.5mm - 2.5mm For Solar Panel Frame

Description
Suitable Material: Galvanized Steel Coil, Aluminum Coil Thickness: 1.5mm~2.5mm
Roller Material: GCr15 Steel, Quenched, Coated With Chrome Shaft Material: 45# Steel, Quenched, Coated With Hard Chrome
Shaft Diameter: Dia 80mm Roller Station: 22 Stations
High Light:

automatic roll forming machine

,

steel roll forming machine

Automatic Green Solar Panel Frame Strut Channel Roll Forming Machine PLC Control





1. Description of strut channel roll forming machine



Strut channel is used to mount, brace, support, and connect lightweight structural loads in building construction. These include pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems. Strut channel is also used for other applications that require a strong framework, such as workbenches, shelving systems, equipment racks, etc. Specially made sockets are available to tighten nuts, bolts, etc. inside the channel, as normal sockets are unable to fit through the opening.



The strut is normally made of sheet steel, with a zinc coating (galvanized), paint, epoxy, powder coated, or other finish.



The solar strut channel roll forming machine is designed for producing the main sizes of different strut channel supports. The whole machine unit main including Uncoiler, Entry Beach, Punch unit, Roll Forming Unit, Shearing Mechanism, Hydraulic System, Electric Control System.



Lebron-Machinery is producing the high-quality Strut Channel Roll Forming Machines. Most of them are exported to Russia, Vietnam, Thailand, Philippines, Iran, etc.





2. Main technical parameters of strut channel roll forming machine



No. Item Description
1 Suitable Material Galvanized Steel Coil, Aluminum Coil
2 Thickness 1.5mm~2.5mm
3 Roller Material GCr15 Steel, Quenched and Tempered, Coated with Chrome
4 Shaft Material 45# Steel, Quenched, coated with hard Chrome
5 Shaft Diameter Dia 80mm
6 Roller Station 22 Stations
7 Forming Speed Approx. 18m/min
8 Hydraulic Cutting Cr12MoV Steel, Quenched & Tempered, Coated with Chrome
9 Main Power 22 Kw
10 Hydraulic Power 4 Kw
11 Voltage 380V/50Hz/3Ph
12 Control System PLC Control System





3. Main components of strut channel roll forming machine



No. Item Quantity
1 3T manual un-coiler 1 set
2 Feeding and leveling device 1 set
3 Main roll forming machine 1 set
4 Hydraulic station 1 set
5 Control system (including control box) 1 set
6 Out tables 2 sets
7 Spare parts 1 package
8 Cutting dies 2 sets
9 Punching die set 2 sets





4. After Sale FAQ


1). Q: How to acquire for service support?

A: Lebron-Machinery is doing its best to provide timely and convenient service support for the customers, the contents of services including before-sale technical counseling, field installation, operate technical training, application solution training, and troubleshooting support, etc. You can gain service support from our distributors in your region.



2). Q: After purchase Lebron-Machinery’s machine, what kind of training could Lebron-Machinery provide?

A: Lebron-Machinery will provide 7 days’ free field training. The training place can be in Lebron-Machinery company or in places designated by the customer where installation takes place, this can all be predetermined by clients in the contract.



3). Q: What kind of warranty do Lebron-Machinery’s gutter machine provide?

A: Except for the consumables, the whole machine has a one-year limited warranty.



4). Q: After buying Lebron-Machinery’s equipment, is there technician in charge of supporting on-site installation?

A: Yes, if the equipment is directly sold from Lebron-Machinery, we will arrange experienced technicians to support for the installation and collaboration when the machine arrives. If the device is sold by Lebron-Machinery’s distributors, LBM will authorize them to send experienced engineers to support for the installation and collaboration when the machine arrives. Except the contract made other agreement for the installation.
