Product Details:
|
Roller Material: | No.45 Steel, Coated With Chromed Treatment | Weight: | 6 Ton |
---|---|---|---|
Roll Forming Speed: | 10-16m/min | Roller Stations: | 18-20 |
Color: | Blue And Red | Controller:: | PLC System |
High Light: | single layer roll forming machine,steel roll forming machine |

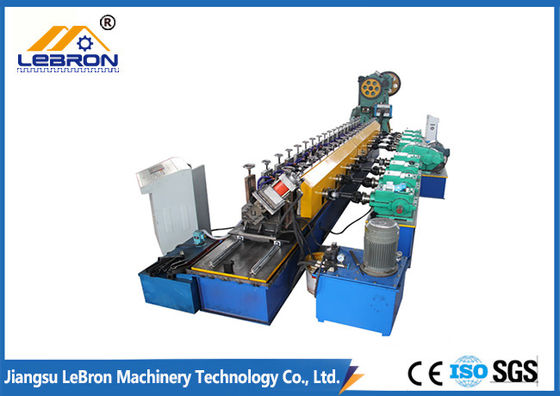

2018 new type Solar Strut Roll Forming Machine PLC control system automatic made in china blue color
1. Description of Solar Strut Roll Forming Machine
Briefly, a solar panel frame roll forming machine produces the steel channels often used as supporting frames of the solar panel.
There are standard dimensions for common uni strut channels, i.e. 21*41, 41*41 and 41*61 etc. And also there are punching holes continuously on the bottom of the channels for joints. The following are some regular joints or connections.
Basic strut channel comes in the open box section, where several variations are available with small different shapes as well as different hole patterns for mounting to walls and supports. Generally, the materials for making the channels are 1.5-2.5mm thick zin-coating steel or cold rolled steel.
In addition, some other materials are also available for different applications. For instance, stainless steel will be used where rusting might become a problem (e.g., outdoors, facilities with corrosive materials), while aluminium alloy is better material when weight is an issue or from fiberglass for very corrosive environments.
A roll forming equipment that manufactures strut channels is strut channel roll forming machine.
2. Technical Parameter of Solar Strut Roll Forming Machine
Raw Material: Cold Rolled Steel Coils or Galvanized Steel Coils
Material Thickness:1.5mm-2.5mm
Material Widths:100mm-180mm
Profiles:21mm*21mm & 41mm*41mm
Leveller:7 Rollers (3 rollers top & 4 rollers bottom)
Feeder:Auto Servo Feeder
Pressing Machine:High-speed pressing machine
Forming Stands Structure: Individual forming stands
Rolling Stations: 18 stations
Forming Speed: Appr.18m/min. Max.
Diameter of Shaft:∮80mm
Material of Shaft:45# steel with tempering treatment.
Material of Roller: Gcr15 Bearing Steel with heating treatment after CNC processing.
Transmission of Machine: Gear-boxes and Universal Joint Shafts.
Main Power: 30 KW
Motors: Siemens motor
Transmission of gear boxes:1”double-roller chains
Cooling/Lubricant system will be used to keep the rollers in better running condition.
Safety Covers will be used for both roll formers
Cutting unit: Hydraulic tracking cutter
Materials of Cutting Die:Cr12MoVsteel
Control system: Siemens PLC control system, Omron Encoder, Yaskawa Inverter and Siemens HMI (touch screen)
3. Layout of Solar Strut Roll Forming Machine
5. After-sell service
A. Foreign debugging
If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day
B. Guarantee period
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).
C. Training
During installation and adjustment of the equipment, our engineers shall provide the training to
buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.
D. Lifetime services
Life time services to every customer.
