Product Details:
|
| Roller Material: | No.45 Steel, Coated With Chromed Treatment | Weight: | 6 Ton |
|---|---|---|---|
| Roll Forming Speed: | 10-16m/min | Roller Stations: | 18-20 |
| Controller:: | PLC System | Maim Motor Power:: | 11 Kw |
| Highlight: | automatic roll forming machine,steel roll forming machine |
||

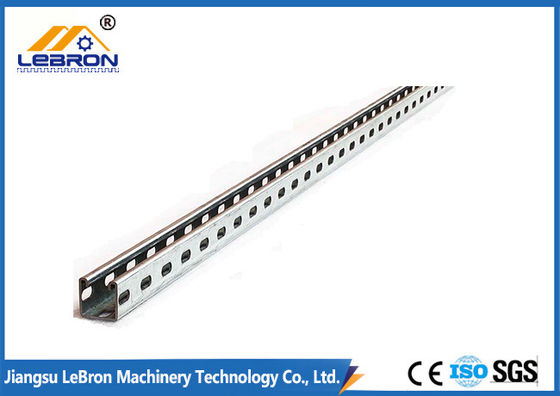

Long Time Service Hydraulic Cut Solar Strut Roll Forming Machine PLC Control
1. Machine Parameters
| Product name | Strut channel roll forming machine | |||
| NO. | Items | Parameters | Remark | |
| 1 |
Suitable
Material |
Type | GI/GL | |
| Width | 1000/1200/1250mm | Custom | ||
| Thickness | 0.70—1.20mm | |||
| 2 |
Product Specifications |
Length | Any length | Programmed |
| Length Tolerance | ±2mm/6m | |||
| 3 | Working Speed | 25 m/min | Standard machine | |
| 4 | Control System | Mitsubishi/Siemens PLC& transducer | Custom | |
| 5 | Total Power | About 20KW | ||
| 6 | Total Weight | About 15T | Up to final design | |
2. About Machine
1). To produce the best strut channel roll forming machine, LBM is taking EUROPEAN quality standard;
2). Choose the best material and components, and adopting our 15+ years experience;
3). LBM achieves that the machine capacity is double of the competitors;
4). The strut channel roll forming machine working speed can be 25m/min;
5). Only 1 worker to operate.
3. FAQ
1), Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We
need your machines running in order to keep your business running.
2), Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3), Q: How does your factory do regarding quality control?
A: Quality is priority. LBM People always attach great importance to quality control from the very
beginning to the end of the production. Every product will be fully assembled and carefully tested before
it's packed for shipment.
4), Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name
components
5. After-sell service
| A. Foreign debugging | If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day |
| B. Guarantee period | The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded). |
| C. Training |
During installation and adjustment of the equipment, our engineers shall provide the training to buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc. |
| D. Lifetime services | Life time services to every customer. |
