Steel Strut Channel Roll Forming Machine , Single Layer Roll Forming Machine CE / ISO Passed

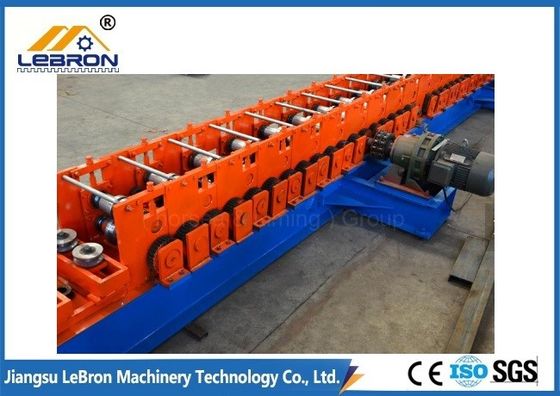

Large Image : Steel Strut Channel Roll Forming Machine , Single Layer Roll Forming Machine CE / ISO Passed

Product Details:

Place of Origin:	Wuxi City, Jiangsu
Brand Name:	LBM
Certification:	ISO 9001: 2008
Model Number:	LBM-SCM-03

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Standard Export Packing with each machine tied and protected in the container
Delivery Time:	30-40 days
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	25 Sets per Month

Contact Now

Detailed Product Description

Thickness:	1.mm~2.5mm	Roller Station:	18 Stations
Forming Speed:	15-20m/min	Shaft Dia:	80mm
Roller Material:	GCr15 Steel, Chromed, Tempered And Quenched	Main Power:	30 Kw
High Light:	single layer roll forming machine , steel roll forming machine

CE and iso passed steel solar strut roll forming machine mounting bracket

1. Main Machine Technical parameter

,NO.	Name		unit	parameter	remark
1	materials	Type		Mild steel galvanized sheet
		Plate strength		≥350
		Plate thickness	mm	1.5~2.5
2	specification		mm	See the picture
3	speed		m/min	6~8
4	Material of the roller			GCr15 Hardening treatment
5	drive type			Gear box
6	power		kw	About40
7	Electrical control system			PCL frequency control
8	Size(lengthXwidthXheight)		m	35X4X3.9

2. Our Services

LMB offer engineers to install and commission the machines at buyer's factory,and also trainyour workers to operate the machine.

a. One year guarantee for whole machine.

b. 24 hours technical support by email or calling

c. Mechnical engineering team with 10 actual working experience
d. Electrical engineering team with 10 actual working experience

3. Layout of Solar Strut Roll Forming Machine

Steel Strut Channel Roll Forming Machine , Single Layer Roll Forming Machine CE / ISO Passed 0

4. Main Accessories:

(1) Main Machine,

(2) Manual/Manual Decoiler(you can choose the one you prefer)

(3) Hydraulic System,

(4) PLC Computer Controlling System,

(5) Forming Cutter,

(6) Run out Table,

(7) Mould for Punching,

(8) Single and Double Holes Punching

(9) Manual in English.

5. Usage :

The purlin machine can produce many sizes C/Z purlin(60-250,80-300…),

They are widely used as the supporter of roof and wall in large-scale and mid-scale construction,.and our automatic C purlin machines can automatically replacement purlins' model number.,have a high speed(20M/min).

Steel Strut Channel Roll Forming Machine , Single Layer Roll Forming Machine CE / ISO Passed 1

Steel Strut Channel Roll Forming Machine , Single Layer Roll Forming Machine CE / ISO Passed 2

Steel Strut Channel Roll Forming Machine , Single Layer Roll Forming Machine CE / ISO Passed 3
