Product Details:
|
Main Power: | 18.5 Kw | Hydraulic Power: | 7.5Kw |
---|---|---|---|
Material: | Galvanized Steel Coil | Thickness : | 1.5~3.0mm |
Roller Station: | 16 Stations | Speed: | Approx. 8-12m/min |
Size: | Approx. 10.0m*1.5m*1.2m | Weight: | 10 Tons |
High Production Capacity Easy Maintain Fully Automatic C Purlin Roll Forming Machine
1. Description of CZ purlin roll forming machine
C purlin production process: use the steel strip as the raw material, the processes such as Leveling, Rolling, Punching, standard length Cutting, etc. become the final product. It can be used for the significant stress structure of large and middle-sized industrial constructions and civilian constructions. The roof load-bearing and wall panel support the plants, warehouses, engine houses, hangars, exhibition halls, cinemas, gymnasiums, fair flower stands, etc.

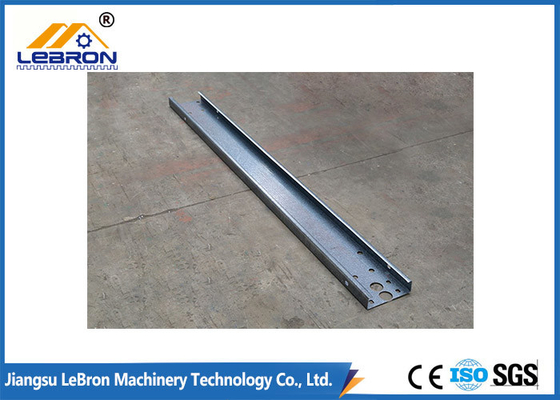

C Purlin Roll Forming Machine is equipment that produces C-shaped steel channels continuously out of galvanized or cold rolled steel strips from feeding, punching for holes, bending, and cutting.

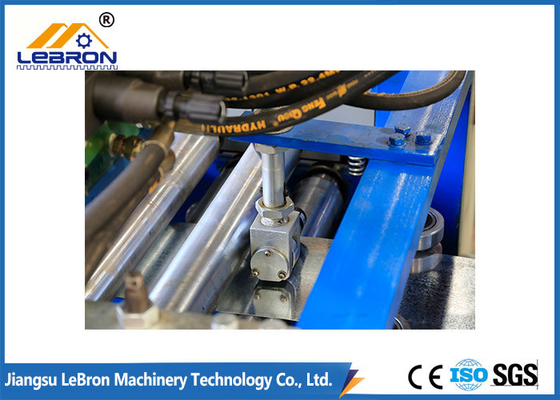

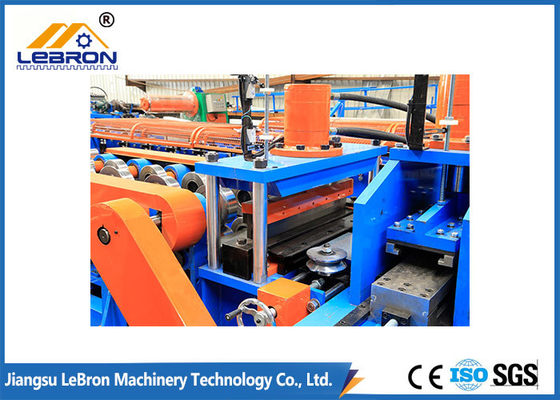

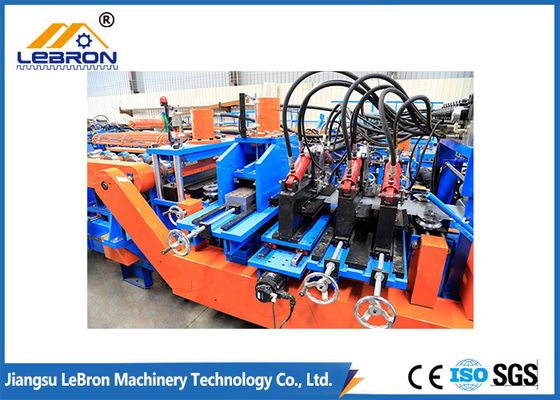

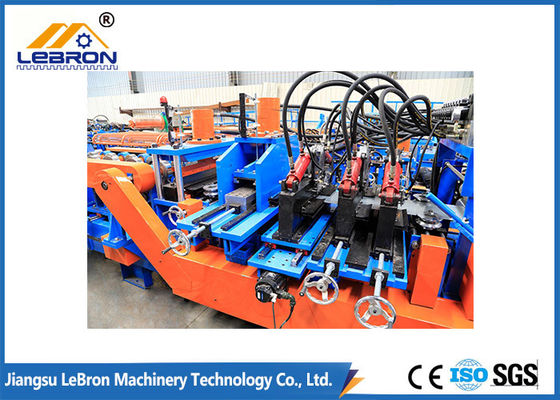

The main components of a C Channel Roll Forming Machine include a manual decoiler, a feeding guide for materials of different sizes, a leveling device, a front hydraulic punching for holes or slots on flanges, a roll forming part, a rear hydraulic punching for holes or slots on the web, a hydraulic cutting for a cut to length, a PLC control cabinet, and a hydraulic oil pump.
LBM factory manufactures high-quality C purlin roll forming machines and exports them to foreign countries such as Australia, India, Uzbekistan, Indonesia, Croatia, Thailand, etc.
2. Technical Parameters of CZ Purlin Roll Forming Machine
No. |
Item |
Description |
1 |
Suitable Material |
GI, GL, PPGI, PPGL Coil, Q235 Coil |
2 |
Suitable Thickness |
1.5~3.0mm |
3 |
Roller Station |
16 stations |
4 |
Forming Speed |
8~12m/min (including the punching and cutting) |
5 |
Roller Material |
GCr15 Bearing Steel. Quenched. Hardness: 58~62 HRC |
6 |
Main Motor Power |
15 KW |
7 |
Shaft Material |
Cr40 steel, Tempering, and Quenching |
8 |
Shaft Diameter |
70mm |
9 |
Cutting |
Hydraulic Cutting |
10 |
Blade Material |
C12MoV, Quenched |
11 |
Hydraulic Station Power |
7.5 KW |
12 |
Drive Type |
Single row Chain Drive |
13 |
Machine Size |
10500mmx1500mmx1200mm (L*W*H) |
14 |
Machine Weight |
Approx 10 tons |
15 |
Machine Frame |
48mm Thick Plate |
16 |
PLC Control System |
Panasonic |
3. Main Components of CZ Purlin Roll Forming Machine
No. |
Name |
Quantity |
Remark |
1 |
5Tmanual decoiler |
1 |
As one complete part |
2 |
Guiding device |
1 |
|
3 |
Pre-cutter |
1 |
|
4 |
Forming system |
1 |
|
5 |
Transmission system |
1 |
|
6 |
Hydraulic guillotine |
2 |
|
7 |
Support table |
2 |
|
8 |
Hydraulic station |
1 |
|
9 |
Control box |
1 |
|
10 |
Spare parts and tools |
1 |
As attaching list |
4. Our Advantages
1). The machine is our new type new design, using all imported electric parts such as PLC, Frequency Converter, and Encoder. The Electromagnetic valves, Aviation Plug, Touch screens, and so on, we also use brands such as Mitsubishi, Panasonic, Siemens, Schneider, etc. Also, for the oil pump and electric motor Reducer, we use Yuken, all the parts of the machine have the best quality and more than 35 years of lifetime.
2). The production size we can design the machine as customizing, the customer just shows us the profile drawing, and we can design the machine according to the request
3). When we finish the machine, we will test the machine and adjust the machine many times to be sure the machine has a perfect status.
4). when customers receive the machine, the machine can be used very easily.
5. FAQ:
Q: How to visit our company:
A: 1). Fly to Wuxi Airport directly;
2). By fast train From Shanghai Hongqiao station to Wuxi station, then we can pick up you at our factory.
Q: What should I provide if I want to customize the machine?
A: You need to provide the profile drawing, material, thickness, voltage, and your special requirements. Then, our technology team will analyze and offer you a suitable technical proposal.
3. Q: What is the Warranty?
A: 12 months
4. Q: What can you do if the machine is broken?
A: Our machine's warranty period is 12 months, if the broken parts can't repair, we will send new free parts to replace the broken parts. You need to pay the cost of the machine that exceeds the warranty period. we can negotiate to solve the problem, and we supply technical support for the whole life of the equipment.
5. Q: If need a technician to the workshop to debug and teach, how to do it?
A: We can send technicians to your country to install the machine. The buyer should bear the expenses including visa, round trip ticket, and suitable accommodation, also the buyer should pay a salary of 100 USD/day.
