Product Details:
|
| Main Power: | 22 Kw | Hydraulic Power: | 7.5Kw |
|---|---|---|---|
| Material: | Galvanized Steel Coil | Thickness : | 1.0~3.0mm |
| Roller Station: | 18 Stations | Speed: | 16~20m/min |
| Size: | Approx. 10.0m*1.5m*1.7m | Weight: | 10 Tons |

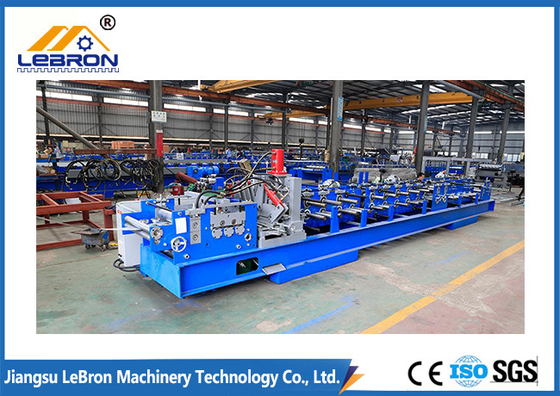

15 Years Long Service Time Durable Fully Automatic C Z Purlin Roll Forming Machine
1. Description of CZ purlin roll forming machine
The fully automatic CZ steel integrated machine is also called C/Z interchangeable roll forming machine. It is a high-automatic purlin forming equipment controlled by a PLC computer, which can realize the interchangeable production of C/Z two types and various specifications of purlins in a short time. In the production process, the computer is automatically controlled, and there is no need to replace the forming roller when changing specifications, which changes the history of using C and Z to process two different types of purlins, saving a lot of investment cost and site space for users.
The main features of the equipment are as follows:
1). No need to change the tool for cutting;
2). Quick type change, any type change within three minutes;
3). Adjustability, the web, flange, and lip can be adjusted, and the adjustment is performed in millimeters;
4). C/Z steel all-in-one machine, C/Z three-step change;
2. Technical Parameters of CZ Purlin Roll Forming Machine
| No. | Item | Description |
| 1 | Main Power | 22 KW |
| 2 | Drive Model | Chain |
| 3 | Machine Frame | The machine frame and structural parts are made of national standard 350H steel, reducing the stress after welding |

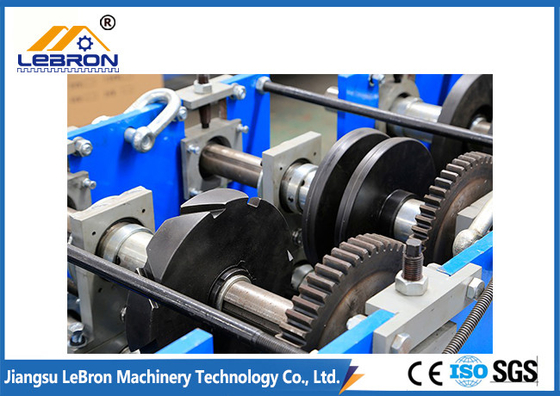

| 4 | Roller Material | Cr12 Steel, Finishing-machining. Coated with hard chrome, Chrome thickness: 0.05mm. Quench heat-treatment |
| 5 | Roller Shafts | 40Cr Steel. Finishing-machining. Diameter: φ80 mm |
| 6 | Cutter Blade | Cr12MoV steel. Finishing-machining. Quenched heat-treatment. HRC 58-62 degrees. Wire-electrode Cutting. Finish-grinding |
| 7 | Roller Station | 18 Stations |
| 8 | Roll Forming Speed | 16~20m/min |
| 9 | Suitable Material | Galvanized Steel Coil, Cold Rolled Coil |
| 10 | Suitable Thickness | 1.0-3.0mm |
| 11 | Out-put Length | Controlled by PLC and according to the user’s demand |
| 12 | Structure Design | The width changes by PLC control. |
| 13 | Machine Size | About 10.0m*1.5m*1.7m |
| 14 | Machine Weight | Around 10 Tons |
3. Main components of CZ Purlin Roll Forming Machine
|
No. |
Name |
Quantity |
Remark |
|
1 |
5Tmanual decoiler |
1 |
As one complete part |
|
2 |
Guiding device |
1 |
|
|
3 |
Pre-cutter |
1 |
|
|
4 |
Forming system |
1 |
|
|
5 |
Transmission system |
1 |
|
|
6 |

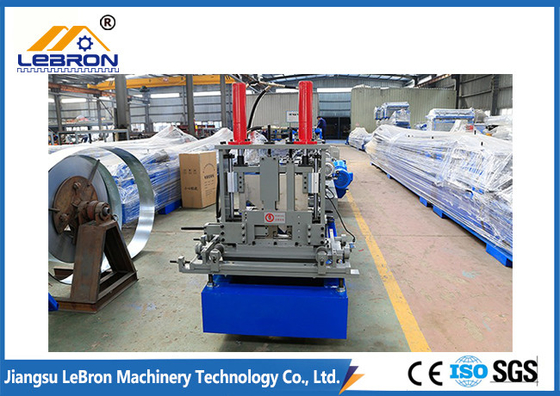

Hydraulic guillotine |
2 |
|
|
7 |
Support table |
2 |
|
|
8 |
Hydraulic station |
1 |
|
|
9 |

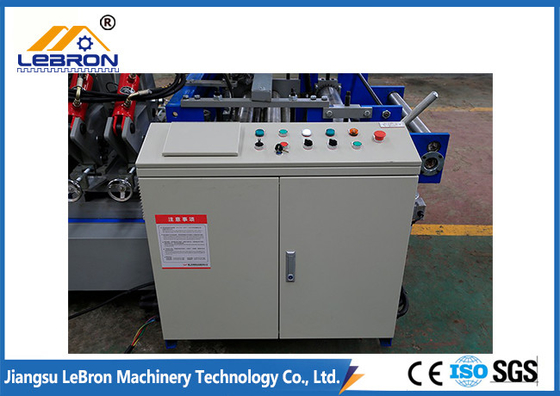

Control box |
1 |
|
|
10 |
Spare parts and tools |
1 |
As attaching list |
4. Our Service
A. Foreign debugging
If you need it, we will arrange for our professional engineers to help you install and debug the machines well. The buyer should pay $100 per day
B. Guarantee period
The warranty will be a maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by humans are excluded).
C. Training
During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.
5. FAQ:
1). Q: Are you a manufacturer, or trading company?
A: We are a manufacturer, and we have built up our company since 2007.
2). Q: Where is your factory located?
A: Our factory address is: No. 551, Zhenze West Road, Huazhuang Street, Binhu District, Wuxi City, Jiangsu, China
3). Q: How can I get to your factory?
A: Our factory is near Shanghai Airport, we can pick you up at the airport. Or you can by plane direct to Wuxi airport. We can pick you up.
4). Q: If I will need to stay at your place for a few days, is that possible to book the hotel for me?
A: It’s always my pleasure, a hotel booking service is available.
Contact Person: Alfred
Tel: +8618115330187
