Product Details:
|
| Main Power: | 7.5KW | Size: | 7.5*1.2*1.0m |
|---|---|---|---|
| Weight: | Approx. 8tons | Speed: | 20-25m/min |
| Roller: | 45# Steel, Coated With Hard Chrome | Roller Station: | 18 Stations |
| High Light: | hard chrome Door Frame Forming Machine,70mm Door Frame Forming Machine,380V Door Frame Forming Machine |
||
High Quality Durable Fully Automatic Door Frame Roll Forming High Production Capacity
1. Description of Door Frame Roll Forming Machine

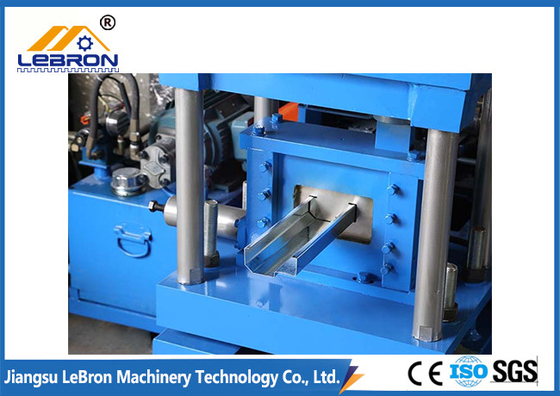

The door frame forming machine is a roll forming machine used in the steel plate cold forming industry. It can continuously shape the steel plate through an automatic press according to the customer's requirements and cut flies to a certain length.
A door frame roll forming machine generally consists of a decoiler (a Hydraulic Decoiler is optional), a main roll forming unit, a transmission system, a cutting tool, a hydraulic system, a hydraulic oil pump, a PLC control cabinet, and run-out tables
The punching also can be designed according to your needs. the door frame surface will be very smooth and beautiful without any scratches on the surface.

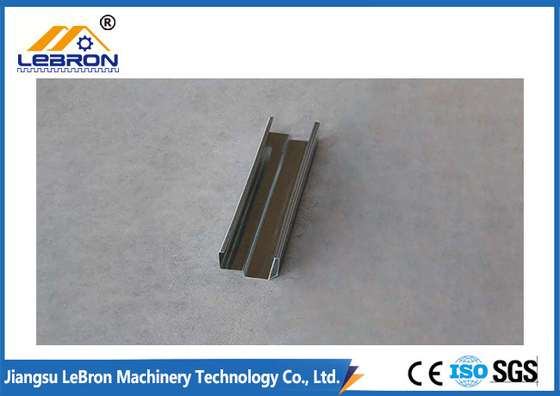

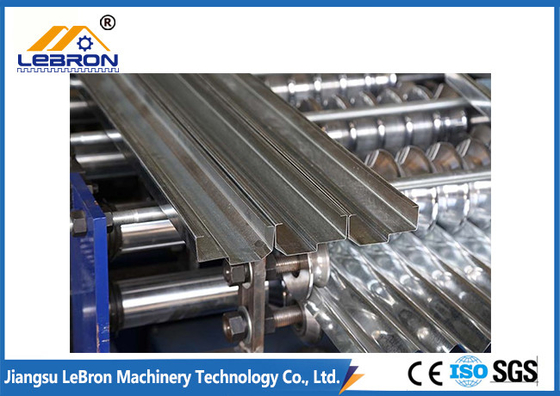

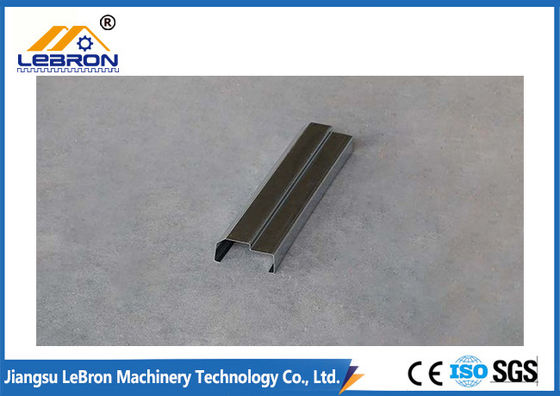

This Door Frame Roll Forming machine can produce various kinds of Roll Formed Aluminum & GI Steel Door or Window frames.
2. Technical Parameters of Door Frame Roll Forming Machine
| Suitable material | Galvanized steel strip |
| Main motor power | 7.5KW with Cycloidal reducer |
| Hydraulic station power | 4KW |
| Hydraulic oil | 36# |
| Thickness of material | 0.8-1.5mm |
| Diameter of the principal axis | Φ70mm |
| Material expands width | 200mm-420mm |
| Electric tension | 380V 3phase 60HZ |
| Material of roller | GCr15 bearing steel HR58-60 |
| Rolling galvanization thickness | 0.05mm |
| Processing speed | 15-20m/min |
| Processing precision within | 10m+/-1.00mm |
| Material of cutting blade | Cr12 mold steel with quenched treatment |
| Kind of drive | 1.5-inch chain link bearing model 6210 |
| Roller station | 18 Rollers |
| Dimension | 8.5m*0.9m*1.3m |
| Weight | 5.5Ton |
| Screen | 5.7-inch Taida screen |
| PLC brand | Mitsubishi |
3. Main components of Door Frame Roll Forming Machine
| Name | Quantity |
| Uncoiler | 1set |
| Coil sheet guiding device | 1set |
| Main roll forming system | 1set |
| Punching device | 1set |
| Cutting device | 1set |
| Hydraulic station | 1set |
| PLC control system | 1set |
| Support table | 1set |
4. Our Advantages
Our factory has more than 11 years of working experience in researching and selling. Products are well sailed all over the world, got many compliments from customers.
1). Germany COPRA software design
2). 5 engineers with more than 20 years of experience
3). 15 professional technicians
4). 11 sets of advanced CNC production lines on site
5). Passionate Team
6). Installation engineers can reach your factory within 6 days
7). 1-year maintenance and whole-life technical support
5. FAQ
Q: How to maintain it?
A: If used frequently, best coating lubricant on the chain and two ends of the shaft every month, replace the hydraulic oil every 1-2 years.
Q: Can you be responsible for transport?
A: Yes, please tell me the destination port or address. we have rich experience in transport.
Q: Can you make the machine according to my design or phototype?
A: Yes. We have an experienced team for working out the most suitable design and production
Q: Can you supply the raw materials?
A: Yes, we can supply the galvanized steel coil, aluminum steel coil, color steel coil
Q: How is this machine's service life?
A: In normal maintenance, the service life is at least 10 years.
