Product Details:
|
| Main Power: | 7.5KW | Size: | 7.5*1.2*1.0m |
|---|---|---|---|
| Weight: | Approx. 8tons | Speed: | 20-25m/min |
| Roller: | 45# Steel, Coated With Hard Chrome | Roller Station: | 18 Stations |
| High Light: | Durable Stable Door Roll Forming Machine,HRC 62 Door Roll Forming Machine,Automatic 1.5mm Door Roll Forming Machine |
||

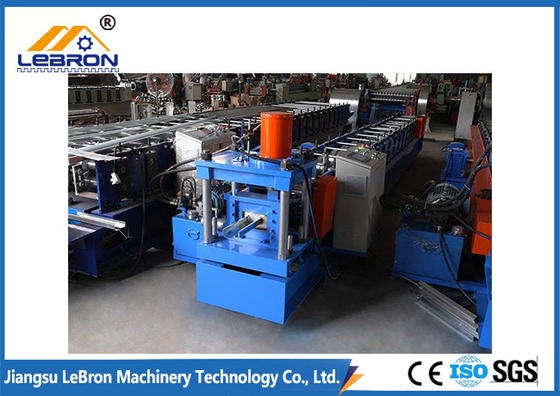

Durable And Stable Fully Automatic Door Frame Roll Forming Machine Long Service Time
1. Description of Door Frame Roll Forming Machine
The door frame forming machine is a roll forming machine used in the steel plate cold forming industry. It can continuously shape the steel plate through an automatic press according to the customer's requirements and cut flies to a certain length.
The machine consists of a decoiler, feeding device, leveling device, cold-rolling forming, hydraulic cutting, receiving system, electrical control system, and hydraulic system. It has the advantages of high production efficiency, a high degree of automation, and low labor intensity.
Lebron-Machinery is manufacturing high quality Door Frame Roll Forming Machines, and most of the machines are exported to: Australia, UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore, Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique, Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
2. Technical Parameters of Door Frame Roll Forming Machine
| No. | Item | Description |
| 1 | Suitable Plate Material | Thickness: 0.8-1.5mm, Galvanized steel coil |
| 2 | Working Speed | 12-15 m/min |
| 3 | Roller quantity | 18 rollers |
| 4 | Material of Roller | Gcr15, Quench HRC58-62 Plated Chrome |
| 5 | Material of Shaft | 45# Advanced Steel (Diameter: 76mm), thermal refining |
| 6 | Driven system | Chain drive |
| 7 | Main Power with reducer | 7.5KW |

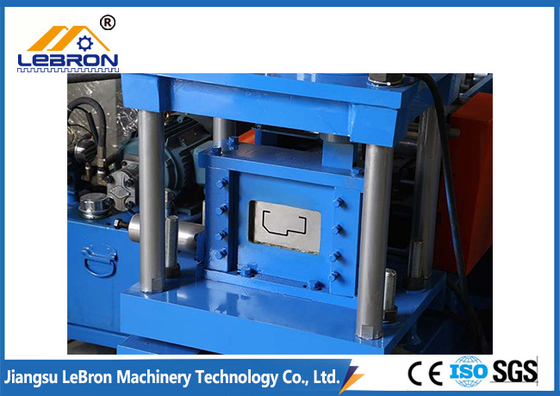

| 8 | Cutting model: | Hydraulic Cutting Cr12mov |
| 9 | Material of Cutting blade | Cr12Mov, Quench HRC58-62 |
| 10 | Hydraulic Station Power | 4.0 KW |
| 11 | Operation system | Controlled by industry computer-PLC system. |
| 12 | PLC brand | Siemens with Japan English and Chinese Language |
| 13 | Touch Screen | Siemens Japan |
| 14 | Encoder | Omron, Japan |
| 15 | Electric parts | Schneider |
3. Main components of Door Frame Roll Forming Machine
|
Name |
Quantity |
|
Uncoiler |
1set |
|
Coil sheet guiding device |
1set |
|
Main roll forming system |
1set |
|
Punching device |
1set |
|
Cutting device |
1set |
|
Hydraulic station |
1set |
|
PLC control system |
1set |
|
Support table |
1set |
4. Our Advantages
1). We are a factory with over 10 years of experience in manufacturing Roll Forming Machines;
2). We have our own powerful research and development team
3). We have more than 15 technicians.
4). 5 engineers with more than 20 years of experience
5). We have an advanced Laser Cutting Machine, CNC Machining Center, Polishing Line, Painting Line, etc. This advanced production equipment guarantees the good quality of each part and the appearance of our machines;
6). Our machines have reached International Inspection Standards;
5. FAQ
1Q: Are you a factory or trading company?
1A: We are a factory.
2Q: Where is your factory located?
2A: Our factory is located in Wuxi City, Jiangsu Province, China. You are warmly welcome to visit us!
3Q: What should I provide if I would love to customize the machine?
3A: We need profile drawing, material information, such as feeding width, thickness, yield strength of steel coil, voltage and your special requirements.
4Q: What I should do if I just start to know roll forming machinery?
4A: Contact us immediately, we provide free consultant pre-sales service.
5Q: Can you make the machine according to my design or phototype?
5A: Yes. We have a professional designer for working out the most suitable design and production plan for the machine that you are going to book with us
6Q: How can I trust you that machines pasted testing running before shipping?
6A: We record the testing video for your reference. You are welcome to visit us and test the machine in our factory.
7Q: Do you provide installing and training overseas?
7A: Overseas machine installation and worker training services are optional.
8Q: How is your after-sales support?
8A: We provide technical support online as well as overseas services by skillful technicians.
9Q: Guarantee period:
9A: Within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
