Durable Corrugated Sheet Roll Forming Machine 0.8mm Roof Panel

Durable Corrugated Sheet Roll Forming Machine 0.8mm Roof Panel
Durable Corrugated Sheet Roll Forming Machine 0.8mm Roof Panel

Large Image :  Durable Corrugated Sheet Roll Forming Machine 0.8mm Roof Panel

Product Details:
Place of Origin: China
Brand Name: Lebron-Machinery
Certification: ISO/CSA/Soncap
Model Number: YX19-76.2-1181
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD8500~USD15000 per Set
Packaging Details: Export Sea-Worthy packing with each set tied and protected
Delivery Time: 35 working days
Payment Terms: L/C, T/T,
Supply Ability: 30 Sets per Month
Detailed Product Description
Machine Size: 9000mm*1500mm*1200mm Machine Weight: Approx. 8 Tons
Feeding Material: GI, PPGI, GL, PPGL Coil Yield Strength: 235MPA-550MPA
Material Thickness: 0.3-0.8mm Material Width: 1250mm
Main Power: 7.5 KW Forming Stations: 20 Stations
High Light:

Corrugated Sheet Roll Forming Machine Durable

,

0.8mm Corrugated Roof Roll Forming Machine

,

Corrugated Roof Panel Roll Forming Machine

Durable Corrugated Roof Panel Making Machine Corrugated Sheet Roll Forming Machine





1. Description of Corrugated Sheet Roll Forming Machine



Made of various metals and alloy steel, corrugated metal sheets have been popular for so many years. The most common materials are prepainted steel, galvanized steel, Alu-zinc steel, and CR steel. People tend to use the sheets for residential, commercial, industrial as well as agricultural buildings.



A corrugated Roofing Sheet roll forming machine uses galvanized steel sheet, colored armor plate, or aluminum plate as the material plate. Its products of it are used as the roof tile and wall panel outside of buildings, to increase the beauty and durability of the roof tile and wall panel. This corrugated tile forming machine has no limit on processing length; you can set several different data on the computer control cabinet according to your own need. After pressing the button "Confirm", the machine can produce the panel automatically according to the set data. The molding plate surface is smooth and not easy to be marked when it is being stamped.

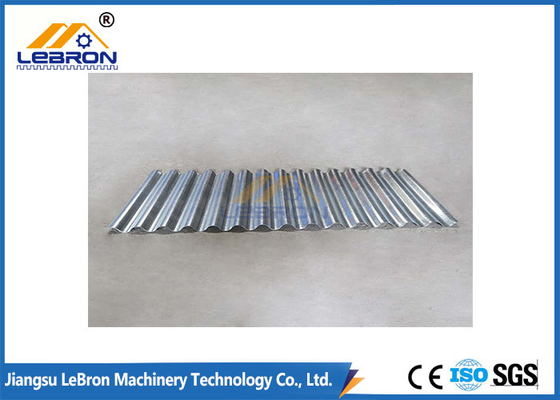

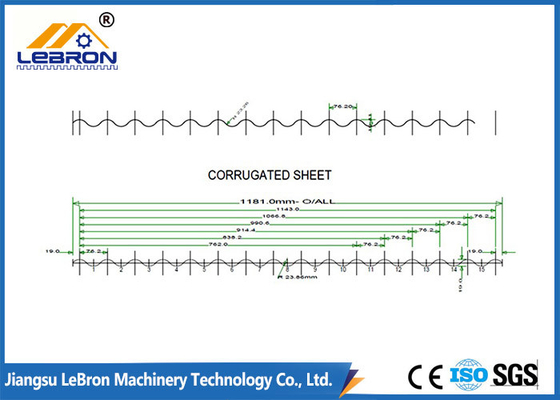

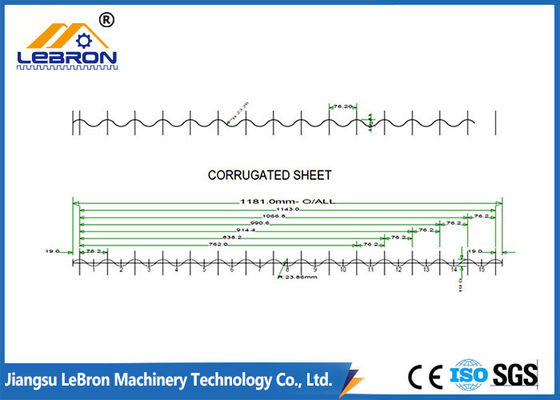

This YX19-76.2-1181 Corrugated Sheet Roll Forming Machine is a common metal roll forming equipment that produces YX19-76.2-1181 Corrugated Sheets, which are used for the cover on the Stacker. It makes the corrugated sheets from materials of 0.3-0.8mm thickness, and 1250mm width of steel coil. The effective width is 1181mm, the wave distance is 76.2mm, and the wave height is 19mm





2. Major Technical Parameters of Corrugated sheet roll forming machine



No. Item Description Remark
1 Machine Size 9000mm*1500mm*1200mm
2 Machine Weight Approx. 8 Tons
3 Feeding Material GI, PPGI, GL, PPGL Coil
4 Yield strength 235MPA-550MPA
5 Raw Material Thickness 0.3-0.8mm
6 Raw Material Width 1250mm
7 Main Power 7.5 KW
8 Forming Speed 15-20m/min
9 Forming stations 20 stations
10 Machine Base 350H Beam Welding
11 Wall Panel Thickness 20mm

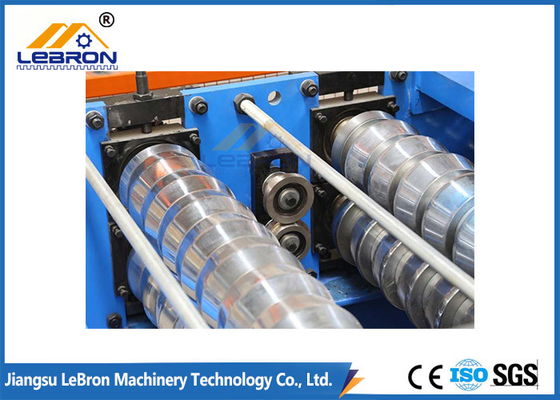

12 Roller 45# steel, quenched, coated with 0.05mm hard chrome
13 Shaft Material High grade 45# steel
14 Shaft Diameter Dia 80mm
15 Hydraulic Cutter Type Post Cut
16 Material of cutting dies Cr12 steel, heat treatment
17 Hydraulic Power 4.0 KW
18 PLC brand Siemens







3. Major Components



No. Item Quantity Remark

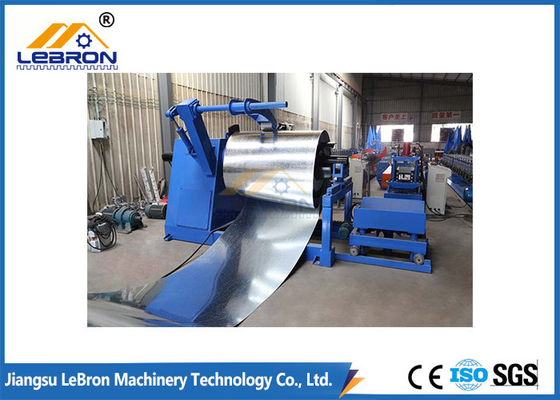

1 Manual decoiler 1 Set
2 Feeding guide 1 Set
3 Roll forming system 1 Set
4 Transmission system 1 Set
5 Hydraulic system 1 Set
6 Control system 1 Set

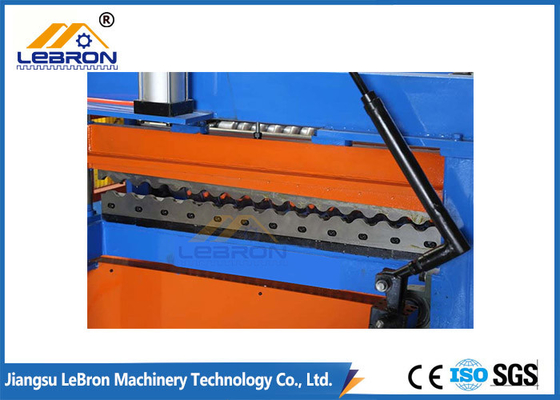

7 Hydraulic cutter 1 Set
8 Oil pump 1 Set

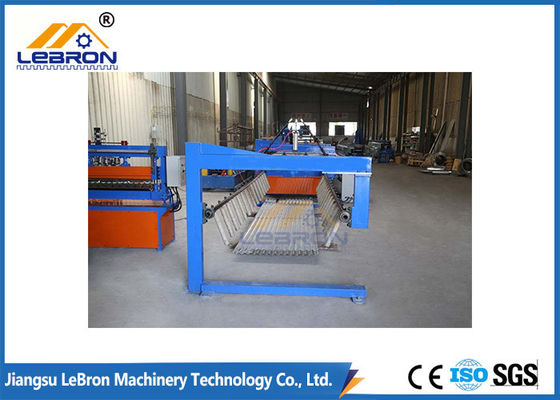

9 Run-out tables 1 Set







4. Our Advantages



1). The machine is our new type new design, use all import electric part such as PLC, Frequency Converter, Encoder. The Electromagnetic Valve, Aviation Plug, Touch Screen, and so on, we also use brands such as Mitsubishi, Panasonic, Siemens, Schneider, etc. Also the oil pump, electric motor Reducer we use Yuken, all the part of the machine have the best quality and more than 35 years lifetime.



2). The production size we can design the machine all as customizing, customer just show us the profile drawing, we can design the machine according to as the request



3). When we finish the machine, we will test the machine and adjust the machine many times to be sure the machine has a perfect status.



4). when customers receive the machine, the machine can be used very easily.







5. FAQ


1Q: Are you a factory or trading company?

1A: We are a factory.



2Q: Where is your factory located?

2A: Our factory is located in Wuxi City, Jiangsu Province, China. You are warmly welcome to visit us!



3Q: What should I provide if I would love to customize the machine?

3A: We need profile drawing, and material information, such as feeding width, thickness, yield strength of steel coil, voltage and your special requirements.



4Q: What I should do if I just start to know roll forming machinery?

4A: Contact us immediately, we provide free consultant pre-sales service.



5Q: Can you make the machine according to my design or phototype?

5A: Yes. We have a professional designer for working out the most suitable design and production plan for the machine that you are going to book with us



6Q: How can I trust you that machines pasted testing running before shipping?

6A: We record the testing video for your reference. You are welcome to visit us and test the machine in our factory.



7Q: Do you provide installing and training overseas?

7A: Overseas machine installation and worker training services are optional.



8Q: How is your after-sales support?

8A: We provide technical support online as well as overseas services by skillful technicians.



9Q: Guarantee period:

9A: Within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic, and hydraulic parts in the line except for the easy-worn parts.
