High Speed Stable C Purlin Roll Forming Machine 18 Stations Fully Automatic Durable

High Speed Stable C Purlin Roll Forming Machine 18 Stations Fully Automatic Durable
High Speed Stable C Purlin Roll Forming Machine 18 Stations Fully Automatic Durable
High Speed Stable C Purlin Roll Forming Machine 18 Stations Fully Automatic Durable High Speed Stable C Purlin Roll Forming Machine 18 Stations Fully Automatic Durable High Speed Stable C Purlin Roll Forming Machine 18 Stations Fully Automatic Durable High Speed Stable C Purlin Roll Forming Machine 18 Stations Fully Automatic Durable High Speed Stable C Purlin Roll Forming Machine 18 Stations Fully Automatic Durable

Large Image :  High Speed Stable C Purlin Roll Forming Machine 18 Stations Fully Automatic Durable

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lebron-Machinery
Certification: ISO 9001: 2008

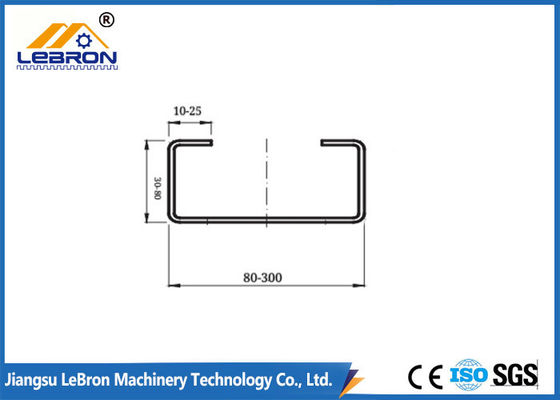

Model Number: C80-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD22000~40000 per Set (Negotiate)
Packaging Details: Standard Export Packing with each machine tied and protected in the container
Delivery Time: 35 days
Payment Terms: L/C, T/T
Supply Ability: 25 Sets per Month

High Speed Stable C Purlin Roll Forming Machine 18 Stations Fully Automatic Durable

Description
Material: Cold Rolled Steel Coil, Galvanized Steel Coil Thickness: 1.5-3.5mm
Main Power: 18.5Kw Hydraulic Power: 7.5Kw
Roller Station: 18 Stations Cutter Material: Cr12MoV Steel. Quench. HRC 58-62℃
High Light:

Stable C Purlin Roll Forming Machine

,

18 Stations Purlin Roll Former

,

Automatic Durable Purlin Roll Former

High Speed Fully Automatic Durable and Stable C Purlin Roll Forming Machine





1. Description of C purlin roll forming machine



Compared to traditional purlins, steel purlins have so many advantages, they are light, easy to install, recyclable for other buildings, etc. Therefore, as we can see, in modern steel industrial buildings or prefab engineered buildings, people always use C purlins, Z purlins, and sometimes U purlins without flange stiffeners as well.



This C purlin roll forming machine is for steel sheet cold-form industries. It can form the steel sheet to the C shape according to the customer’s requirement continuously, automatically cut to length. The equipment adopts PLC control, AC frequency, and adjusting the speed technology. And it has many advantages, just like high forming speed, low noise, stable transmission, easy operation, good appearance and so on.



Lebron Machinery manufactures high-quality C purlin roll forming machines and exports them to foreign countries such as Australia, India, Uzbekistan, Indonesia, Croatia, Thailand, etc.





2. Technical Parameters of C Purlin Roll Forming Machine



No. Item Description
1 Output Speed Approx. 20m/min
2 Thickness 1.5-3.5mm
3 Material Q195~Q235 Cold Rolled Steel Coil, Galvanized Steel Coil
4 Main Power 18.5Kw
5 Hydraulic Power 7.5Kw
6 Flattening 9 Steps
7 Pre-Punching Device 1 Station
8 Roller Station 18 Stations
9 Roller Material GCr15, quenching, and tempering
10 Shaft Material 45# advanced steel, quenching, and tempering,
11 Shaft Diameter 95mm
12 Tolerance 3m±1.5mm
13 Material of cutting Cr12MoV Steel. Quench. HRC 58-62℃
14 PLC Siemens
15 Frequency inverter Yaskawa
16 Encoder Omron
17 Transmission type Gear Chain
18 Dimension (L*W*H) 10m*1.5m*1.2m
19 Weight Approx 15 Tons
20 Voltage 380V/50Hz/3Ph (can custom)






3. Main components of C Purlin Roll Forming Machine



Name Quantity
Uncoiler 1set
Guiding and Leveling Device 1set
Main Roll Forming System 1set
Hydraulic Cutting Device 1set
Hydraulic Station 1set
Electric Control Cabinet 1set
Receiving Table 1set





4. Our Advantages



1). The machine is our new type new design, use all import electric part such as PLC, Frequency Converter, Encoder. The Electromagnetic Valve, Aviation Plug, Touch Screen, and so on, we also use brands such as Mitsubishi, Panasonic, Siemens, Schneider, etc. Also the oil pump, electric motor Reducer we use Yuken, all the part of the machine have the best quality and more than 35 years lifetime.



2). The production size we can design the machine all as customizing, customer just show us the profile drawing, we can design the machine according to as the request



3). When we finish the machine, we will test the machine and adjust the machine many times to be sure the machine has a perfect status.



4). when customers receive the machine, the machine can be used very easily.





5. FAQ



Q: How to visit our company:

A: 1). Fly to Wuxi Airport directly;

2). By fast train From Shanghai Hongqiao station to Wuxi station, then we can pick up you at our factory.



Q: What should I provide if I want to customize the machine?

A: You need to provide the profile drawing, material, thickness, voltage, and your special requirements. Then, our technology team will analyze and offer you a suitable technical proposal.



3. Q: What is the Warranty?

A: 12 months



4. Q: What can you do if the machine is broken?

A: Our machine's warranty period is 12 months, if the broken parts can't repair, we will send new free parts to replace the broken parts. You need to pay the cost of the machine that exceeds the warranty period. we can negotiate to solve the problem, and we supply technical support for the whole life of the equipment.



5. Q: If need a technician to the workshop to debug and teach, how to do it?

A: We can send technicians to your country to install the machine. The buyer should bear the expenses including visa, round trip ticket, and suitable accommodation, also the buyer should pay the salary of 100 USD/day.







High Speed Stable C Purlin Roll Forming Machine 18 Stations Fully Automatic Durable 0





High Speed Stable C Purlin Roll Forming Machine 18 Stations Fully Automatic Durable 1





High Speed Stable C Purlin Roll Forming Machine 18 Stations Fully Automatic Durable 2
