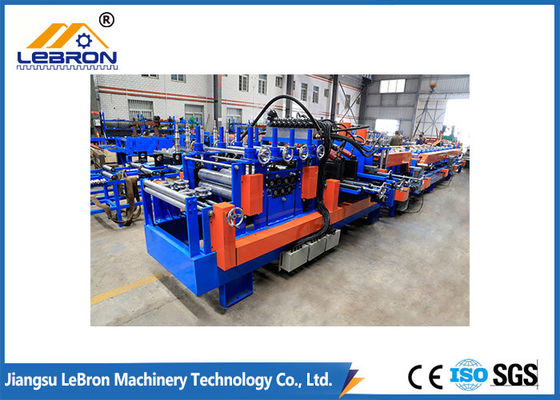

Automatic Heavy Duty C Purlin Roll Forming Machine Pre Punching Pre Cutting
1. Description of C purlin roll forming machine
C purlin production process: use the steel strip as the raw material, by the processes such as Leveling, Rolling, Punching, standard length Cutting, etc. become the final product. It can be used for the significant stress structure of the large and middle-sized industrial constructions and civilian constructions. The roof load-bearing and wall panel supporting the plants, warehouses, engine houses, hangars, exhibition halls, cinemas, gymnasiums, fair flower stands, etc.
The main components of a C Purlin Roll Forming Machine include a manual decoiler (3-Ton capacity), a feeding guide for materials of different sizes, a leveling device, a front hydraulic punching for holes or slots on flanges, a roll forming part, a rear hydraulic punching for holes or slots on the web, a hydraulic cutting for a cut to length, a PLC control cabinet, and a hydraulic oil pump.
LBM factory manufactures high-quality C purlin roll forming machines and exports them to foreign countries such as Australia, India, Uzbekistan, Indonesia, Croatia, Thailand, etc.
2. Technical Parameters of C Purlin Roll Forming Machine
| No. | Item | Description |
| 1 | Output Speed | Approx. 20m/min |
| 2 | Thickness | 1.5-3.5mm |
| 3 | Material | Q195~Q235 Cold Rolled Steel Coil, Galvanized Steel Coil |
| 4 | Main Power | 18.5Kw |
| 5 | Hydraulic Power | 7.5Kw |
| 6 | Flattening | 9 Steps |
| 7 | Pre-Punching Device | 1 Station |
| 8 | Roller Station | 18 Stations |
| 9 | Roller Material | GCr15, quenching, and tempering |
| 10 | Shaft Material | 45# advanced steel, quenching, and tempering, |
| 11 | Shaft Diameter | 95mm |
| 12 | Tolerance | 3m±1.5mm |
| 13 | Material of cutting | Cr12MoV Steel. Quench. HRC 58-62℃ |
| 14 | PLC | Siemens |
| 15 | Frequency inverter | Yaskawa |
| 16 | Encoder | Omron |
| 17 | Transmission type | Gear Chain |
| 18 | Dimension (L*W*H) | 10m*1.5m*1.2m |
| 19 | Weight | Approx 15 Tons |
| 20 | Voltage | 380V/50Hz/3Ph (can custom) |
3. Main Sizes of C Purlin
| Number | D(mm) | B(mm) | L(mm) | T(mm) | Coil width(mm) |
| 1 | 100 | 50 | 15 | 1.5-3.5 | 210 |
| 2 | 120 | 50 | 20 | 1.5-3.5 | 240 |
| 3 | 140 | 50 | 20 | 1.5-3.5 | 260 |
| 4 | 140 | 60 | 20 | 1.5-3.5 | 280 |
| 5 | 150 | 50 | 20 | 1.5-3.5 | 270 |
| 6 | 160 | 60 | 20 | 1.5-3.5 | 300 |
| 7 | 180 | 60 | 20 | 1.5-3.5 | 320 |
| 8 | 180 | 70 | 20 | 1.5-3.5 | 340 |
| 9 | 200 | 65 | 20 | 1.5-3.5 | 350 |
| 10 | 200 | 70 | 20 | 1.5-3.5 | 360 |
| 11 | 220 | 70 | 20 | 1.5-3.5 | 380 |
| 12 | 220 | 80 | 20 | 1.5-3.5 | 400 |
| 13 | 240 | 70 | 20 | 1.5-3.5 | 400 |
| 14 | 240 | 80 | 20 | 1.5-3.5 | 420 |
| 15 | 250 | 80 | 20 | 1.5-3.5 | 430 |
| 16 | 300 | 70 | 20 | 1.5-3.5 | 460 |
| 17 | 300 | 80 | 20 | 1.5-3.5 | 480 |
4. Our Advantages:
1). The machine is our new type new design, use all import electric part such as PLC, Frequency Converter, Encoder. The Electromagnetic Valve, Aviation Plug, Touch Screen, and so on, we also use brands such as Mitsubishi, Panasonic, Siemens, Schneider, etc. Also the oil pump, electric motor Reducer we use Yuken, all the part of the machine have the best quality and more than 35 years lifetime.
2). The production size we can design the machine all as customizing, customer just show us the profile drawing, we can design the machine according to as the request
3). When we finish the machine, we will test the machine and adjust the machine many times to be sure the machine has a perfect status.
4). when customers receive the machine, the machine can be used very easily.
5. After-sale Service FAQ:
1). Q: How to acquire service support?
A: Lebron-Machinery is doing its best to provide timely and convenient service support for the customers, the contents of services include before-sale technical counseling, field installation, operation technical training, application solution training, troubleshooting support, etc.
2). Q: After purchasing Lebron-Machinery’s machine, what kind of training could Lebron-Machinery provide?
A: Lebron-Machinery will provide 7 days’ free training. The training place can be in Lebron-Machinery company or in places designated by the customer where installation takes place, this can all be predetermined by clients in the contract.
3). Q: What kind of warranty do Lebron-Machinery’s roll forming machines provide?
A: Except for the consumables, the whole machine has a one-year limited warranty.
4). Q: After buying Lebron-Machinery’s equipment, are there technicians in charge of supporting on-site installation?
A: Yes, if the equipment is directly sold from Lebron-Machinery, we will arrange experienced technicians to support the installation and collaboration when the machine arrives. If the device is sold by Lebron-Machinery’s distributors, we will authorize them to send experienced engineers to support the installation and collaboration when the machine arrives. Except the contract made other agreements for the installation.
