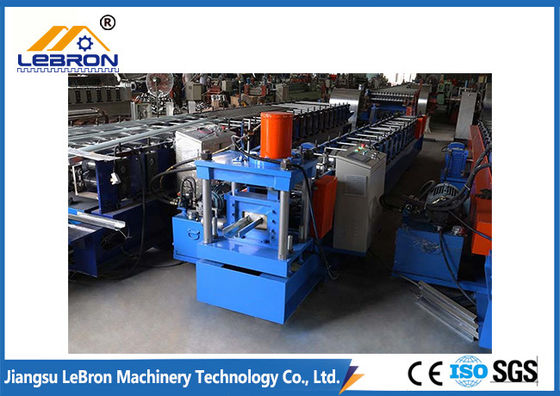

25m/Min Door Frame Roll Forming Machine 18 roller Stations

25m/Min Door Frame Roll Forming Machine 18 roller Stations
25m/Min Door Frame Roll Forming Machine 18 roller Stations
25m/Min Door Frame Roll Forming Machine 18 roller Stations 25m/Min Door Frame Roll Forming Machine 18 roller Stations 25m/Min Door Frame Roll Forming Machine 18 roller Stations 25m/Min Door Frame Roll Forming Machine 18 roller Stations 25m/Min Door Frame Roll Forming Machine 18 roller Stations

Large Image :  25m/Min Door Frame Roll Forming Machine 18 roller Stations

Product Details:
Place of Origin: Wuxi, Jiangsu, China
Brand Name: Lebron-Machinery
Certification: ISO 9001: 2008
Model Number: Door Frame Roll Forming Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD10000~20000 per Set
Packaging Details: Standard Export Packing
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T
Supply Ability: 35 Sets per Month

25m/Min Door Frame Roll Forming Machine 18 roller Stations

Description
Machine Size: About 7.5m*1.2m*1.0m Suitable Material: Galvanized Steel Coil
Thickness: 0.8-1.2mm Speed: 20-25m/min
Roller: 45# Steel, Coated With Hard Chrome Roller Station: 18 Stations
High Light:

25m/min Door Frame Roll Forming Machine

,

Galvanized Door Frame Roll Forming Machine

,

25m/min door frame rolling machine

20-25m/min High Efficiency Door Frame Roll Forming Machine High Stability


1. Description of Door Frame Roll Forming Machine


The Door Frame Roll Forming Machines can be divided into three categories: ordinary door frame forming machines (one-time), door frame half forming machines (adjustable), and fully automatic door frame forming machines.



Among them, the door frame semi-forming machine (adjustable type) is special. Its characteristic is that the double-sided door frame is formed. Two kinds of lace sizes in the above product specifications can be selected, and the pattern is optional;



Compared with the traditional clay brick machine, the door roll frame forming machine can choose industrial waste residues: coal ash, coal gangue, and various tailings as the main raw materials. The door frame roll forming machine adopts the platform mold to vibrate hydraulic pressure forming, the forming cycle is short, and the production efficiency is high.



The use of door frame roll forming machine is more environmentally friendly, more energy-saving, and waste recycling. The door frame roll forming machine uses three bars to press up and down to form at one time, without a brick supporting board.




2. Technical Parameters of Door Frame Roll Forming Machine


Weight About 8000kgs
Size About 7.5m*1.2m*1.0m (L x W x H)
Suitable  Material Galvanized steel strip
Thickness 0.8~1.2mm
Coil width 240mm
Yield strength 235Mpa
Rollers station 18 Stations
Roller Shaft Diameter 75 mm
Roll Forming Speed 20-25m/min
Production Speed Approx.15m/min
Roller Material 45# steel, coated with chrome, quenched
Cutter material Cr12 mold steel, with quenched treatment
Controlling system PLC and Converter
Electric power requirement Main power: 7.5 KW
Hydraulic power: 4 KW
Electric voltage 380V 50Hz 3 Phase (as per local requirement)




3. After-Sale FAQ:



1). Q: How to acquire service support?

A: Lebron-Machinery is doing its best to provide timely and convenient service support for the customers, the contents of services including before-sale technical counseling, field installation, operate technical training, application solution training, and troubleshooting support, etc.



2). Q: After purchasing Lebron-Machinery’s machine, what kind of training could Lebron-Machinery provide?

A: Lebron-Machinery will provide 7 days’ free training. The training place can be in Lebron-Machinery company or in places designated by the customer where installation takes place, this can all be predetermined by clients in the contract.



3). Q: What kind of warranty do Lebron-Machinery’s roll forming machines provide?

A: Except for the consumables, the whole machine has a one-year limited warranty.



4). Q: After buying Lebron-Machinery’s equipment, are there technicians in charge of supporting on-site installation?

A: Yes, if the equipment is directly sold from Lebron-Machinery, we will arrange experienced technicians to support the installation and collaboration when the machine arrives. If the device is sold by Lebron-Machinery’s distributors, we will authorize them to send experienced engineers to support the installation and collaboration when the machine arrives. Except the contract made other agreements for the installation.







4. Our Advantages



1). The machine is our new type new design, use all import electric part such as PLC, Frequency Converter, Encoder. The Electromagnetic Valve, Aviation Plug, Touch Screen, and so on, we also use brands such as Mitsubishi, Panasonic, Siemens, Schneider, etc. Also the oil pump, electric motor Reducer we use Yuken, all the part of the machine have the best quality and more than 35 years lifetime.

2). The production size we can design the machine all as customizing, customer just show us the profile drawing, we can design the machine according to as the request

3). When we finish the machine, we will test the machine and adjust the machine many times to be sure the machine has a perfect status.

4). when customers receive the machine, the machine can be used very easily.
