Product Details:
Payment & Shipping Terms:
|
| Suitable Material: | Galvanized Steel Coil | Thickness: | 1.5~3.0mm |
|---|---|---|---|
| Roller Stations: | 23 Stations | Forming Speed: | Approx. 18m/min |
| Main Power: | 18.5KW | Hydraulic Power: | 7.5KW |
| High Light: | Omron Encode Purlin Roll Forming Machine,18m/min Purlin Roll Forming Machine,Omron Encode c purlin machine |
||
Fully Automatic C Z Purlin Roll Forming Machine Siemens PLC Control Omron Encoder
1. Description of CZ purlin roll forming machine
A c/z purlin interchangeable roll forming machine has been designed to produce both C and Z steel purlins with any sizes available.
The profile change including cutting dies for C to Z takes at most 30 minutes (just clutches taken out, a 180° turning on some rolling tools and clutches inserted in) and size change needs at most 5 minutes (just input the required distance through the touch screen on PLC control cabinet ). So much efficiency has been improved by this quick-change c/z steel purlin roll forming machine
2. Technical Parameters of CZ Purlin Roll Forming Machine
| No. | Item | Description |
| 1 | Suitable Material | GI, GL, PPGI, PPGL Coil, Q235 Coil |
| 2 | Suitable Thickness | 1.5~3.0mm |
| 3 | Roller Station | 16 stations |
| 4 | Forming Speed | 8~12m/min (including the punching and cutting) |
| 5 | Roller Material | GCr15 Bearing Steel. Quenched. Hardness: 58~62 HRC |
| 6 | Main Motor Power | 15 Kw |
| 7 | Shaft Material | Cr40 steel, Tempering and Quenching |
| 8 | Shaft Diameter | 70mm |
| 9 | Cutting | Hydraulic Cutting |
| 10 | Blade Material | C12MoV, Quenched |
| 11 | Hydraulic Station Power | 7.5 Kw |
| 12 | Drive Type | Single row Chain Drive |
| 13 | Machine Size | 10500mmx900mmx1500mm (L*W*H) |
| 14 | Machine Weight | Approx 8 tons |
| 15 | Machine Frame | 48mm Thick Plate |
| 16 | PLC Control System | Panasonic |
| 17 | Frequency converter | Yaskawa |
| 18 | Encoder | Omron |
| 19 | Servo motor | Yaskawa |
| 20 | Other Electrical Components | Schneider |
3. Main Components of CZ Purlin Roll Forming Machine
| No. | Name | Quantity |
| 1 | Uncoiler | 1set |
| 2 | Coil sheet guiding device | 1set |
| 3 | Main roll forming system | 1set |
| 4 | Punching device | 1set |

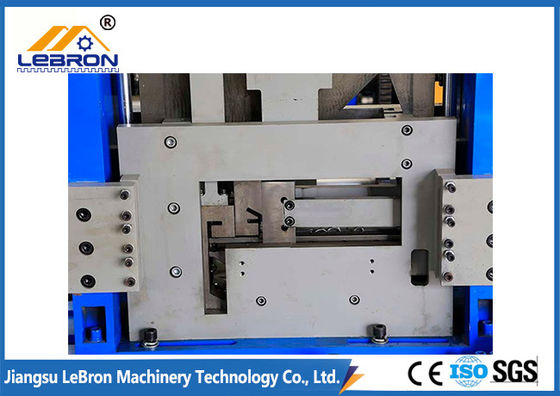

| 5 | Cutting device | 1set |
| 6 | Hydraulic station | 1set |
| 7 | PLC control system | 1set |
| 8 | Support table | 1set |
4. FAQ
Q: How to maintenance?
A: If using frequently, best coating lubricant on the chain and two ends of the shaft every month, replace the hydraulic oil every 1-2 years.
Q: Can you be responsible for transport?
A: Yes, please tell me the destination port or address. we have rich experience in transport.
Q: Can you make the machine according to my design or phototype?
A: Yes. We have an experienced team for working out the most suitable design and production
Q: Can you supply the raw materials?
A: Yes, we can supply the galvanized steel coil, aluminum steel coil, color steel coil
Q: How is this machine's service life?
A: In normal maintenance, the service life is at least 10 years.
