Product Details:
|
| Main Power: | 5.5Kw | Hydraulic Power: | 4Kw |
|---|---|---|---|
| Roller Station: | 19 Stations | Size: | 9.5m*1.8m*1.5m |
| Weight: | Approx 12 Tons | Forming Speed: | 15~20m/min |
| High Light: | CSA Corrugated Sheet Roll Forming Machine,continuous Corrugated Sheet Roll Forming Machine,sinusoidal corrugated roof sheet making machine |
||
High Speed Fully Automatic Bule Color Corrugated Sheet Roll Forming Machine 5.5KW
1. Description of Corrugated Sheet Roll Forming Machine
Steel corrugated roof sheet roll forming machine is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts a coiling steel sheet as the raw material, decoiling, continuous rolling, and cold-forming, automatically cut to the size and specification which is required, and output the finished panels.
Our corrugated roof sheet roll forming machines are customized, if you have the roof tile sheet drawings, please let me know, then we can produce the machine for you.

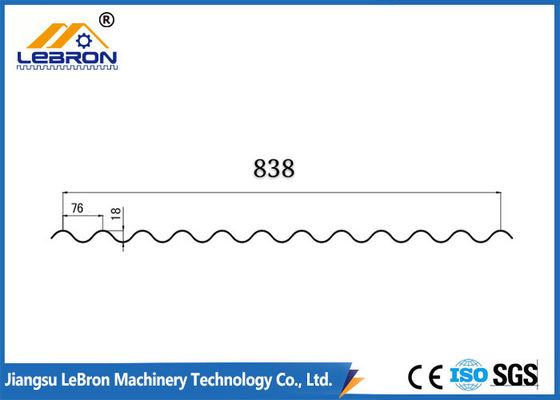

Generally, one Corrugated Roofing Sheet Making Machine can produce sinusoidal sheets for roofing and siding panels with 762/838/1080 effective widths, 76mm wave distance, and 18mm wave height. It’s worth repeating that one corrugated sheet roll forming machine can make all the above metal sheets.
Most importantly, the Corrugated Sheet Roll Forming Machine line can work both automatically and manually.
2. Technical parameters of Corrugated Sheet Roll Forming Machine
| No. | Item | Description | Remark |
| 1 | Raw Material | Color Steel Coil, Galvanized Steel Coil, Galvalume Steel Coil | |
| 2 | Yield strength | 235MPA-550MPA | |
| 3 | Raw Material Thickness | 0.3-0.8mm | |
| 4 | Raw Material Width | 914-1250mm | |
| 5 | Main Power | 5.5Kw | |
| 6 | Forming stations | 19stations | |
| 7 | Stands structure | Conjoint type OR Individual Type | |
| 8 | Machine Frame stand | 36# H Beam steel welded | |
| 9 | The thickness of Steel Frame | 18mm | can custom |
| 10 | Material of Roller | High grade 45# steel, Polished and coated with 0.05mm hard chrome | |
| 11 | Shaft Material | High grade 45# steel | |
| 12 | Diameter of shaft | Dia 70mm | can cutom |
| 13 | Hydraulic Cutter | Stop to cut | |
| 14 | Material of cutting dies | Cr12 steel | can custom |
| 15 | Hydraulic power for cutting | 4KW | |
| 16 | Cutting lengths and quantities | Clients can set required lengths and quantities through the touch screen on the PLC control box | |
| 17 | Control system | Panasonic PLC, Inverter, CHNT transformer, and Omron encoder |
3. Corrugated Sheet Roll Forming Machine Main Components
| Components For Corrugated Sheet Roll Forming Machine | |||
| Name | Quantity | Units | |
| Decoiler | 1 | Set | |
| Main Machine | Feeding device | 1 | Set |
| Roll forming system | 1 | Set | |
| Cut Equipment | 1 | Set | |
| Hydraulic system | 1 | Set | |
| Electric control system | 1 | Set | |
| Supporter/Automatic Stacker | 1 | Set | |
4. Why choose us?
1). We can make and design all kinds of roll forming machines according to customer’s requests.
2). This is very perfect and durable equipment. We have more than 12 years' experience.
3). This kind of machine has the best quality and the best price.
4). Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
