Soncap 838MM Colored Corrugated Sheet Roll Forming Machine

Soncap 838MM Colored Corrugated Sheet Roll Forming Machine
Soncap 838MM Colored Corrugated Sheet Roll Forming Machine Soncap 838MM Colored Corrugated Sheet Roll Forming Machine Soncap 838MM Colored Corrugated Sheet Roll Forming Machine Soncap 838MM Colored Corrugated Sheet Roll Forming Machine

Large Image :  Soncap 838MM Colored Corrugated Sheet Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: Lebron-Machinery
Certification: ISO/CSA/Soncap
Model Number: 838
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD8500~USD15000 per Set
Packaging Details: Export Sea-Worthy packing with each set tied and protected
Delivery Time: 35 working days
Payment Terms: L/C, T/T,
Supply Ability: 30 Sets per Month
Detailed Product Description
Main Power: 7.5Kw5 Forming Speed: 15~20m/min
Roller Station: 19 Stations Suitable Material: Color Steel Coil, Galvanized Steel Coil
Thickness: 0.3~0.8mm Hydraulic Power: 4 Kw
High Light:

Soncap Corrugated Sheet Roll Forming Machine

,

Soncap corrugated sheet rolling machine

,

colored corrugated sheet rolling machine

838 Type Blue Color Fully Automatic Corrugated Sheet Roll Forming Machine Siemens PLC





1. Description of Corrugated Sheet Roll Forming Machine



The Corrugated sheet roll forming machine is a common metal roll forming equipment that produces corrugated Metal Roofing and Siding Panels. In our daily life, we can see many fans of corrugated metal sheets.



This corrugated Roofing Sheet roll forming machine uses galvanized steel sheet, colored armor plate, or aluminum plate as the material plate. The products of it are used as the roof tile and wall panel outside of the building, to increase the beauty and durability of the roof tile and wall panel. This corrugated tile forming machine has no limit on processing length; you can set several different data on the computer control cabinet according to your own need. After pressing the button "Confirm", the machine can produce the panel automatically according to the set data. The molding plate surface smooth and not easy to be marked when it is being stamped.







2. Technical parameters of Corrugated Sheet Roll Forming Machine



No. Item Description Remark
1 Raw Material Color Steel Coil, Galvanized Steel Coil, Galvalume Steel Coil
2 Yield strength 235MPA-550MPA
3 Raw Material Thickness 0.3-0.8mm
4 Raw Material Width 914-1250mm
5 Main Power 5.5Kw
6 Forming stations 19stations
7 Stands structure Conjoint type OR Individual Type
8 Machine Frame stand 36# H Beam steel welded
9 The thickness of Steel Frame 18mm can custom
10 Material of Roller High grade 45# steel, Polished and coated with 0.05mm hard chrome
11 Shaft Material High grade 45# steel
12 Diameter of shaft Dia 70mm can cutom
13 Hydraulic Cutter Stop to cut
14 Material of cutting dies Cr12 steel can custom
15 Hydraulic power for cutting 4KW
16 Cutting lengths and quantities Clients can set required lengths and quantities through the touch screen on the PLC control box
17 Control system Panasonic PLC, Inverter, CHNT transformer, and Omron encoder
18 Voltage 380V/3Ph/50Hz Can custom







3. Main components of corrugated sheet roll forming machine



No. Item Quantity Remark
1 Manual decoiler 1 Set
2 Feeding guide 1 Set
3 Roll forming system 1 Set
4 Transmission system 1 Set
5 Hydraulic system 1 Set
6 Control system 1 Set
7 Hydraulic cutter 1 Set
8 Oil pump 1 Set
9 Run-out tables 1 Set







4. After-Sale Service



A. Foreign debugging

If you need it, we will arrange for our professional engineers to help you install and debug the machines well. The buyer should pay $60 per day



B. Guarantee period

The warranty will be a maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by humans are excluded).



C. Training

During installation and adjustment of the equipment, our engineers shall provide the training to

buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.



D. Lifetime services

Life-time services to every customer.

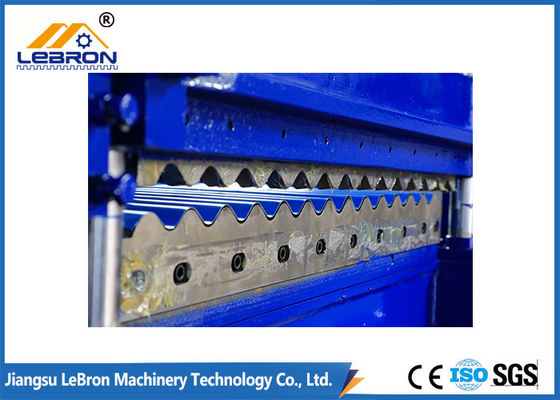

Soncap 838MM Colored Corrugated Sheet Roll Forming Machine 0

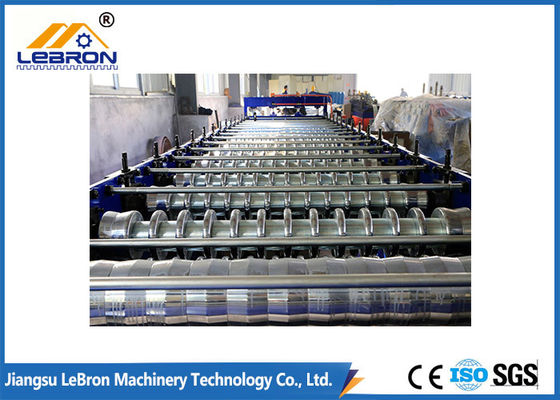

Soncap 838MM Colored Corrugated Sheet Roll Forming Machine 1

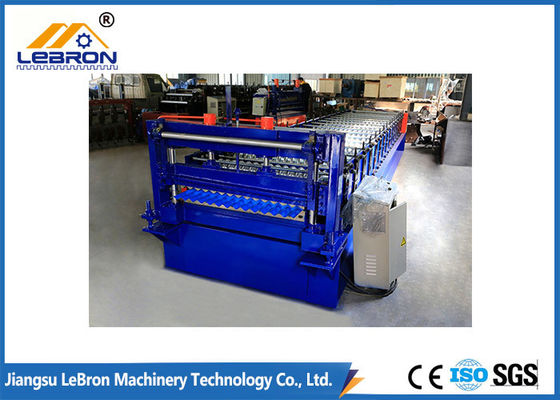

Soncap 838MM Colored Corrugated Sheet Roll Forming Machine 2
