Product Details:
Place of Origin: Wuxi City, Jiangsu
Brand Name: Lebron-Machinery
Certification: ISO, CE certificate
Model Number: YX55-200-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 30000~50000 per Set (Negotiation)
Packaging Details: Export Sea-worthy packing with steel wires tie and fixed in the container
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month

CE ISO Sheet Metal Roll Forming Machines , 20 Stations Metal Deck Forming Machine

Description
Main Power: 15KW Roller Stations: 20 Stations
Roller Material: 45# Steel Suitable Material: Galvanized Steel Coil
Shaft Diameter: 90mm Forming Speed: 12~15m/min
High Light:

ISO sheet metal roll forming machines

,

20 Stations sheet metal roll forming machines

,

CE metal deck forming machine

YX 55 200 600 Type Floor Deck Roll Forming Machine Siemens PLC Omron Encoder Automatic

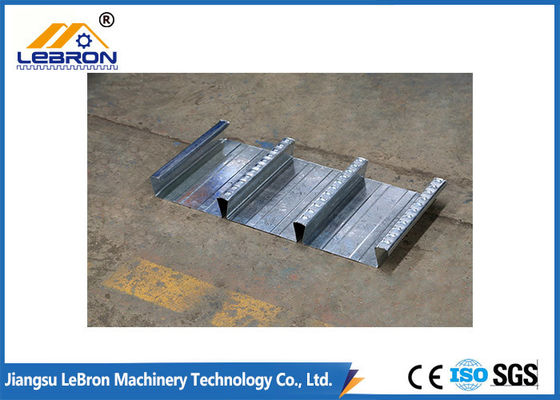

1. Description of floor deck roll forming machine



Steel floor decks are widely used in power plants, power equipment companies, automobile showrooms, steel structure workshops, cement warehouse, steel structure office, airport terminal, railway station, stadium, concert hall, grand theater, large supermarket, the logistics center, the Olympic stadium and the steel structure of the stadium.



To meet the requirements of rapid construction of the main steel structure, it can provide a firm working platform in a short time.



It can be used to lay special-shaped steel plates on multi-layer floors and flow construction of layered concrete slabs



There are many standard metal deck or steel deck profiles that a steel deck roll forming machine is technically capable to produce, and these deck sheets are widely used in a variety of applications.



Steel deck roll forming machines have been designed for the production of various types of metal decks which are usually applied for roofing and floor industries, and sometimes for bridge construction as well.





2. Main technical parameters of floor deck roll forming machine



No. Item Description
1 Suitable Material Hot-dipped galvanized steel coils
2 Thickness of Material 0.8mm-1.5mm
3 Roller Stations 20 stations
4 Diameter of Shaft 90mm
5 Material of Shaft 45# steel
6 Material of roller 45#steel with quenching treatment and coated with hard chrome 0.05mm thickness
7 Forming speed 12~15m/min
8 Main Power 15KW
9 Overall Dimension 13.5mx1.5mx1.3m
10 Weight of the machine Approx. 12 Tons
11 Cutting hydraulic cutting
12 Material of Cutting Blades Cr12 steel
13 Hydraulic Power 4KW
14 Control system Panasonic PLC, Inverter, CHNT transformer, and Omron encoder
