|Machine Size:||Aprrox. 13.5*1.5*1.3m||Suitable Material:||GL, AL Coil|
|Main Power:||15KW||Hydraulic Power:||4KW|
|Forming Speed:||12~15m/min||Weight:||Approx. 12 Tons|
12 Tons floor tiles manufacturing machines,
15KW floor tiles manufacturing machines,
Omron Encoder floor tiles manufacturing machines

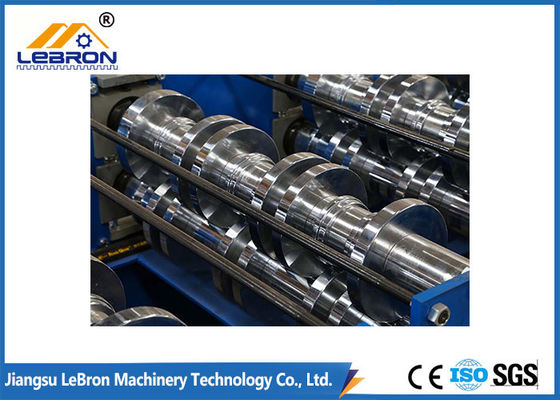

15KW Fully Automatic Type Floor Deck Roll Forming Machine Siemens PLC Omron Encoder
1. Description of floor deck roll forming machine
The floor calendering machine is manually used to produce steel floors. It can produce high-quality floors with no cutting deformation, high strength, and heavy workload. It can be directly mixed with steel mesh and concrete and has good adhesion. It is suitable for high-rise steel structure buildings. It can save steel formwork and reduce floor load. Under the same capacity, the amount of steel can be reduced, thereby saving costs.
The deck forming machine consists of an uncoiler and its base, coil guide equipment, roll forming system, post-cutting equipment, hydraulic station, Siemens PLC control system, and support table. The profile produced by this machine has high strength and large ribs, which can be well bonded to concrete. It is best used as the floor of high-rise buildings, and the construction cost of the floor is low.
1). The high-strength forming frame ensures the stable forming and uniforms the high quality of the final product.
2). Since the production line management can be automated by controlling the electronic system, higher productivity can be ensured.
3). The improved cutting method minimizes the tolerance of the cutting length.
2. Main technical parameters of floor deck roll forming machine
|1||Suitable Material||Hot-dipped galvanized steel coils|
|2||Thickness of Material||0.8mm-1.5mm|
|3||Roller Stations||20 stations|
|4||Diameter of Shaft||90mm|
|5||Material of Shaft||45# steel|
|6||Material of roller||45#steel with quenching treatment and coated with hard chrome 0.05mm thickness|
|10||Weight of the machine||Approx. 12 Tons|
|12||Material of Cutting Blades||Cr12 steel|
|14||Control system||Panasonic PLC, Inverter, CHNT transformer, and Omron encoder|
