ISO 15KW Shaft Dia90mm Step Floor Deck Roll Forming Machine Siemens PLC Control

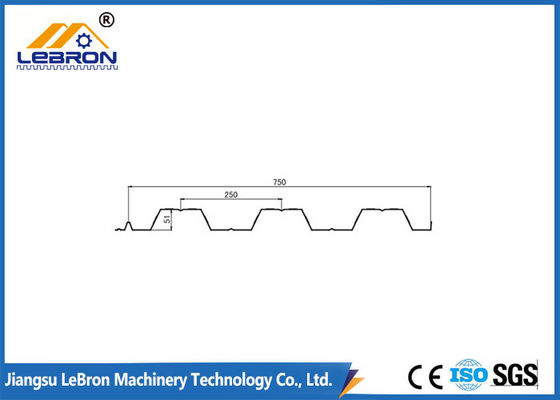

YX 51 250 750 Type Floor Deck Roll Forming Machine Siemens PLC Control Main Power 15KW

1. Description of floor deck roll forming machine

Steel floor decks are widely used in power plants, power equipment companies, automobile showrooms, steel structure workshops, cement warehouse, steel structure office, airport terminal, railway station, stadium, concert hall, grand theater, large supermarket, the logistics center, the Olympic stadium and the steel structure of the stadium.

To meet the requirements of rapid construction of the main steel structure, it can provide a firm working platform in a short time.

It can be used to lay special-shaped steel plates on multi-layer floors and flow construction of layered concrete slabs

The floor roll forming machine can form a flat plate into a customized shape, and the material of the floorboard is galvanized steel sheet.

2. Feature of Floor Decking

1. To meet the requirements of rapid construction of the main steel structure, it can provide a firm working platform in a short time

It can be used to lay special-shaped steel plates on multi-layer floors and flow construction of layered concrete slabs

2. In the use stage, the floor is used as the tensile steel bar of the concrete slab, which also improves the rigidity of the slab

And save the amount of steel and concrete. The floor is usually V-shaped, U-shaped, or trapezoidal, with much less concrete protrusions.

Unlike the soil plate, it is a flat plate. Floors can usually save one-third of the concrete. Concrete is very expensive now.

3. The embossing on the surface of the special-shaped board produces the greatest bonding force between the floor and the concrete,

In this way, the two are formed as a whole, with stiffeners, so that the floor deck system has a high load-bearing capacity.

4. In the cantilever condition, the floor slab is only used as permanent formwork.

The length of the cantilever can be determined according to the cross-sectional characteristics of the floor.

In order to prevent the cantilever plate from cracking, it is necessary to match the negative ribs on the support

Structural engineer's design.

5. The floor has a certain fire protection function. The floor material is galvanized steel. It is not easy to raise water and it is not easy to burn.

It can also stop the fire from spreading in a short time. To a certain extent, slow down the fire.

6. The floor also has some special functions, such as shock resistance. The floor is connected to steel beams.

The floor deck has a certain degree of toughness. For example, in the event of an earthquake, the floor cannot be destroyed like concrete.

Overall, this is a great opportunity to ensure the safety of people and property

7. Environmental protection. For short-term buildings, if they are demolished later, they can be reused 100%.

8. The floor deck is laid very quickly. If it is a high-rise building, it can be placed on multiple floors. When the concrete is poured together,

It saves a lot of time, manpower and financial resources, and the fixing of the floor slab is also very fast,

It will take a short time to use a special nailing machine. It is much simpler than traditional wooden boards.

2. Main technical parameters of floor deck roll forming machine
