Product Details:
Payment & Shipping Terms:
|
| Thickness: | 0.8-1.5mm | Material: | Galvanized Steel Coil |
|---|---|---|---|
| Roller: | 45# Steel | Shaft Diameter: | 80mm |
| Machine Size: | 13.5m*1.5m*1.3m | Weight: | Approx. 2 Tons |
| High Light: | t1.5mm metal deck forming machine,15KW metal deck forming machine,t1.5mm step tile roll forming machine |
||
Siemens PLC Control Fully Automatic Floor Deck Roll Forming Machine Main Power 15KW
1. Description of floor deck roll forming machine
Steel floor decks are widely used in power plants, power equipment companies, automobile showrooms, steel structure workshops, cement warehouse, steel structure office, airport terminal, railway station, stadium, concert hall, grand theater, large supermarket, the logistics center, the Olympic stadium and the steel structure of the stadium.
To meet the requirements of rapid construction of the main steel structure, it can provide a firm working platform in a short time.
It can be used to lay special-shaped steel plates on multi-layer floors and flow construction of layered concrete slabs

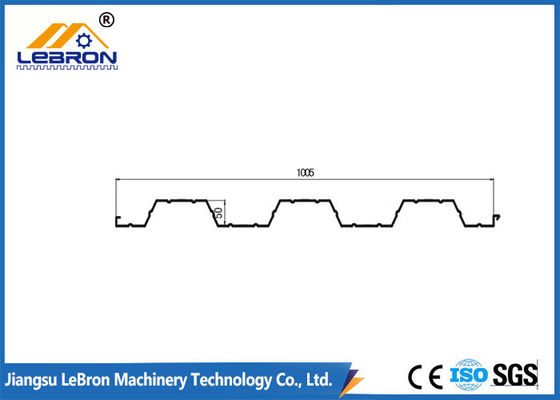

The floor roll forming machine can form a flat plate into a customized shape, and the material of the floorboard is galvanized steel sheet.
2. Main technical parameters of floor deck roll forming machine
| No. | Item | Description |
| 1 | Suitable Material | Hot-dipped galvanized steel coils |
| 2 | Thickness of Material | 0.8mm-1.5mm |
| 3 | Roller Stations | 20 stations |
| 4 | Diameter of Shaft | 80mm |
| 5 | Material of Shaft | 45# steel |
| 6 | Material of roller | 45#steel with quenching treatment and coated with hard chrome 0.05mm thickness |
| 7 | Forming speed | 12~15m/min |
| 8 | Main Power | 15KW |
| 9 | Overall Dimension | 13500mmx1500mmx1300mm |
| 10 | Weight of the machine | Approx. 12 Tons |
| 11 | Cutting | hydraulic cutting |
| 12 | Material of Cutting Blades | Cr12 steel |
| 13 | Hydraulic Power | 4KW |
| 14 | Control system | Panasonic PLC, Inverter, CHNT transformer, and Omron encoder |
3. Main components of floor deck roll forming machine
| COMPONENT FOR FLOOR DECK ROLL FORMING MACHINE | |||
| Name | Quantity | Units | |
| Decoiler | 1 | Set | |
| Main Machine | Feeding device | 1 | Set |
| Roll forming system | 1 | Set | |
| Cut Equipment | 1 | Set | |
| Hydraulic system | 1 | Set | |
| Electric control system | 1 | Set | |
| Supporter/Automatic Stacker | 1 | Set | |
