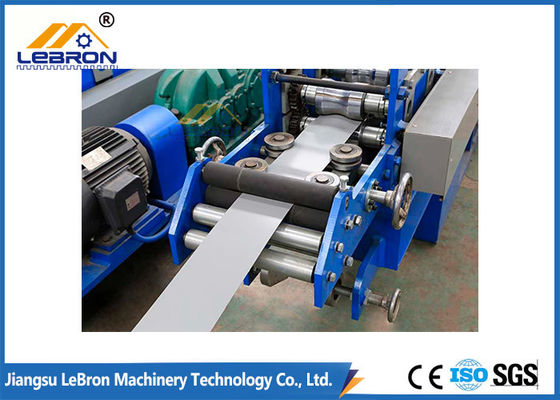

5.5KW Rolling Shutter Profile Making Machine With 65mm Shaft

5.5KW Rolling Shutter Profile Making Machine With 65mm Shaft
5.5KW Rolling Shutter Profile Making Machine With 65mm Shaft 5.5KW Rolling Shutter Profile Making Machine With 65mm Shaft 5.5KW Rolling Shutter Profile Making Machine With 65mm Shaft 5.5KW Rolling Shutter Profile Making Machine With 65mm Shaft

Large Image :  5.5KW Rolling Shutter Profile Making Machine With 65mm Shaft

Product Details:
Place of Origin: China
Brand Name: Lebron-Machinery
Certification: ISO/CE/CSA/Soncap
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD10000~20000 Per Set
Packaging Details: Standard export packing with each machine fixed and protected in the container
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month

5.5KW Rolling Shutter Profile Making Machine With 65mm Shaft

Description
Machine Weight: 5000Kgs Main Power: 5.5KW
Roller Stations: 19 Stations Shaft: No.45 Steel, Coated With Hard Chrome, Quenched
Shaft Diameter: 65mm Hydraulic Power: 4KW
High Light:

5.5KW shutter profile making machine

,

65mm shaft shutter profile making machine

,

5.5KW shutter roll forming machine

Custom Shutter Door Use Automatic Shutter Door Roll Forming Machine Shutter Door Slat



1. Description of shutter door roll forming machine:



For single-roll shutter slats, it refers to slats made of galvanized steel or color steel, without PU insulation. The raw material is usually 0.6-1.2mm GI steel or PPGI steel. The size of the single slats is too large to list all the coilers. Generally, an ordinary single-roll shutter slat forming machine can only produce one shutter plate and can choose to perforate.



The steel roller shutter forming machine is fully controlled automatically by PLC. Therefore, you only need to input the relevant production data, such as product quantity, length, and stamping size, the machine can start the production automatically.





2. Technical details of shutter door roll forming machine:



Raw material Pre-painted coils, Galvanized coils, Aluminum coils
Material thickness range 0.3-1.0mm
Rollers 19 Stations
Material of rollers 45# steel with chromed
Shaft material and diameter No.45 Steel. Dia 65mm
Forming speed 12-15m/min
Main motor power 5.5KW
Hydraulic power 4.0KW
Cutting type Hydraulic cutting
Controlling system PLC
Voltage 380V/3Phase/50Hz
Way of driven 1.0-inch single chain transmission
Total weight 5 tons
Size of the machine L*W*H 6*0.8*1m





3. Main components of shutter door roll forming machine



1. Uncoiler, 3 tons capacity, manual or electric
2. Roll forming machine, 14/19 forming steps, 5.5KW Systems motor, siding mill, or chrome-plated stand mill
3. Cutting device, hydraulic or sawing.
4. Punching device (optional)
5. Control system: Siemens or Panasonic PLC, Yaskawa inverter, Omron encoder, Siemens or MCGS touch screen
6. Hydraulic station, 2.2kw/3.75kw
7. Collection table, simple or automatic stacker



5.5KW Rolling Shutter Profile Making Machine With 65mm Shaft 0



5.5KW Rolling Shutter Profile Making Machine With 65mm Shaft 1



5.5KW Rolling Shutter Profile Making Machine With 65mm Shaft 2
