Product Details:
Payment & Shipping Terms:
|
| Name: | Roller Shutter Door Roll Forming Machine | Coil Thickness: | 1.2~2.0mm |
|---|---|---|---|
| Decoiler Type: | Hydraulic | Weight Capacity: | 6 Tons |
| Forming Station: | 22 Stations | Shaft Diameter: | 65mm |
| High Light: | 2.0mm steel door frame roll forming machine,T Profile rolling door roll forming machine |
||
Door Frame Roll Forming Machine Rolling Shutter Door T Profile Machine
Door Frame Roll Forming Machine Description
Rolling Shutter Door T Profile Machine are always required for the manufacturing of guide rails for rolling shutter doors to raise up and lowered down from galvanized steel strips of 1.2-2.0mm thickness.
A Rolling Shutter Door T Profile Machine for the production of rolling shutter door guide rails generally consists of a decoiler, leveler, main roll forming machine, transmission system (chain-brackets or gearbox), cutting tool, hydraulic oil pump, PLC control cabinet and runout tables.
Door Frame Roll Forming Machine Technical Parameters
| Suitable Material | Coil Type | GI, GL Coil |
| Coil Thickness | 1.2~2.0mm | |
| Coil Width | According to design | |
| Yield Strength | 250~350Mpa | |
| Decoiler | Decoiler type | Hydraulic |
| Weight Capacity | 6 Tons | |

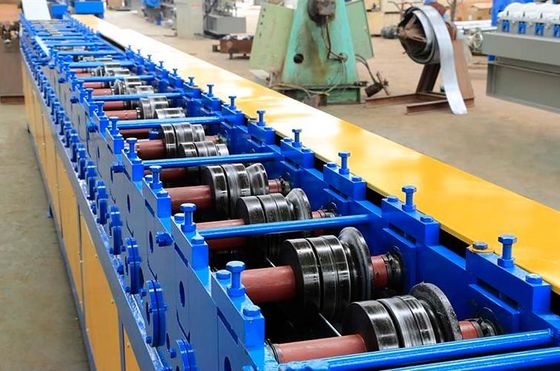

| Main Roll Forming | Forming Station | 22 stations |

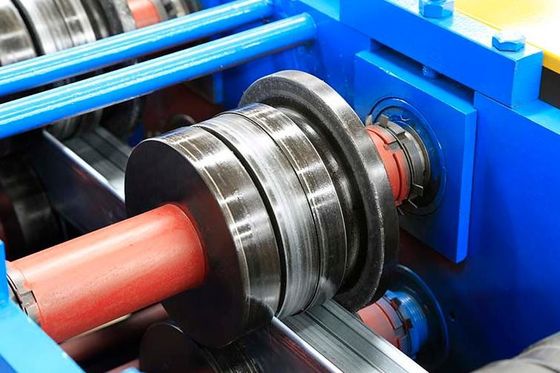

| Roller Material | 45# Steel. Quenched. 0.05mm hard chrome coated | |
| Shaft Material | 45# Steel. Quenched. 0.05mm hard chrome coated | |
| Shaft Diameter | 65mm | |
| Drive Type | Chain drive | |
| Forming Speed | 12~15m/min | |
| Main Power | 5.5 Kw | |
| Cutting device | Cutting Device | Hydraulic Cutting |
| Cutting die Material | Cr12MoV | |
| Cutting Tolerance | +/-1mm (10m) | |
| Hydraulic Station | 4 Kw, with 12Mpa pressure | |
| Electric System | PLC Brand | Panasonic |
| Converter | Yaskawa | |
| Encoder | Omron | |
| Reducer | Guomao | |
| Touch Screen | MCGS | |
| Electrical parts | Schneider | |
| Run-out Table | Type | No power with passive rollers |
| Function | Support the profiles after cutting | |
| Machine | Dimension | 3.5m*0.5m*0.8m (L*W*H) |
| Weight | 3.5 Tons |
After-Sale Service
Install and Training:
If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, manual and video are provided to show how to install and operate.
After-sale Service:
We provide a 24-hour online service for our customers.
a . The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller.
When the technique men go to the buyer's place to debug the machines, the buyer should pay the
expense of accommodation, and round-trip tickets for the seller’s men. and pay the technician USD60 per day.
b. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.
