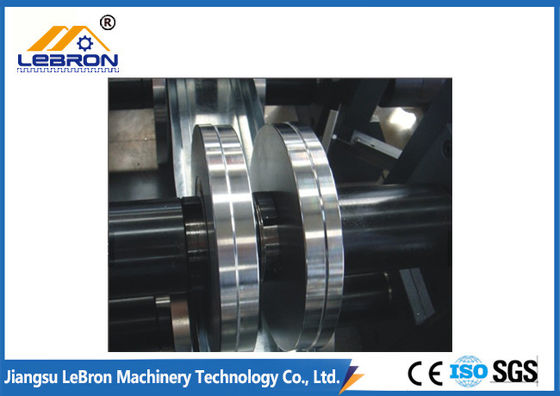

Metal Stud And Track Roll Forming Machine , High Speed Metal Stud Making Machine

Metal Stud And Track Roll Forming Machine , High Speed Metal Stud Making Machine
Metal Stud And Track Roll Forming Machine , High Speed Metal Stud Making Machine Metal Stud And Track Roll Forming Machine , High Speed Metal Stud Making Machine Metal Stud And Track Roll Forming Machine , High Speed Metal Stud Making Machine Metal Stud And Track Roll Forming Machine , High Speed Metal Stud Making Machine

Large Image :  Metal Stud And Track Roll Forming Machine , High Speed Metal Stud Making Machine

Product Details:
Place of Origin: Wuxi City, Jiangsu
Brand Name: Lebron-Machinery
Certification: ISO9001: 2008
Model Number: LBM-STM-010
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export sea worthy packing with each machine fixed and protected in the container
Delivery Time: 25 work days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month

Metal Stud And Track Roll Forming Machine , High Speed Metal Stud Making Machine

Description
Machine Size: 3.8m*1.0m*1.2m Weight: 3.5 Tons
Main Power: 5.5 KW Voltage: 380V 50HZ 3Phase
Shaft: 45# Steel, Plated With 0.05 Mm Hard Chrome Shaft Size: Dia 50mm
High Light:

metal stud and track roll forming machine

,

drywall stud roll forming machine

Automatic Drywall Partition Metal Stud And Track Roll Forming Machine UC Profiles





1. Description of stud and track roll forming machine



In modern buildings, people tend to use steel because steel is lightweight, recyclable, costs less money and time, compared to traditional clays, stones or bricks. In a lightweight or light gauge steel building, most of the building materials are made of steel, and most of these steel building materials are manufactured by roll forming machines, one of which is drywall stud and track roll forming machine that has been designed for the continuous and automatic production of metal c stud and u tracks applied for both exterior and partition walls in both individual and industrial buildings.



The Stud and Track Roll Forming Machine can produce the metal studs and tracks continuously. Comparing with the bending machine, the Stud and Track Roll Forming Machine is more effective, saving manual costs.



The Stud and Track Roll Forming Machine is used for producing various different shapes of studs and tracks. Such as C shape, C shape with holes, L shape, etc. These products are widely used in many kinds of industrial factories, civilian buildings, and wallboard for the attached part product. It has the advantages of pretty appearance, durable using and so on.



The complete Stud and Track Roll Forming Machine including the Decoiler, Main Roll Forming Machine, The PLC control system and Ran-out tables. The roll forming machine equipped with the computer control system. You just need to program in the computer the piece and length you need, then the roll forming machine produces it automatically. The machine is easy to operate and operate stably.





2. The main technical parameters of the stud and track roll forming machine



No. Part Name Unit Qty
1 Manual Decoiler set 1
2 Entry Beach set 1
3 Main Machine for roll forming set 1
4 Cutting System set 1
5 Punching Hole (Optional) set 1
6 Output Table set 1
7 Control System(PLC) set 1
8 Hydraulic station set 1





3. The main parameters of stud and track roll forming machine



Length of the main part 3800mm*1000mm*1200mm
Weight of main part 3.5 tons
Voltage 380V 50HZ 3Phase
Frame 300 H steel
Drive mode gear chains
Main axle material No.45 steel
Material of shafts 45# steel
Diameter of shafts φ50mm
Number of rollers 12 rollers
Main power 5.5kw
Forming speed 20m/min
Control system PLC control system





4. FAQ



Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after you inspect the machine well and before delivery. Of course, your payment terms are acceptable.
After we get down payment, we will arrange production. About 25-30 days for delivery.



Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.



Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.


Q4. What will you do if the machine is broken?
A4: We provide 12 months free warranty and free technical support for the whole life of any machine.





Metal Stud And Track Roll Forming Machine , High Speed Metal Stud Making Machine 0







Metal Stud And Track Roll Forming Machine , High Speed Metal Stud Making Machine 1







Metal Stud And Track Roll Forming Machine , High Speed Metal Stud Making Machine 2
