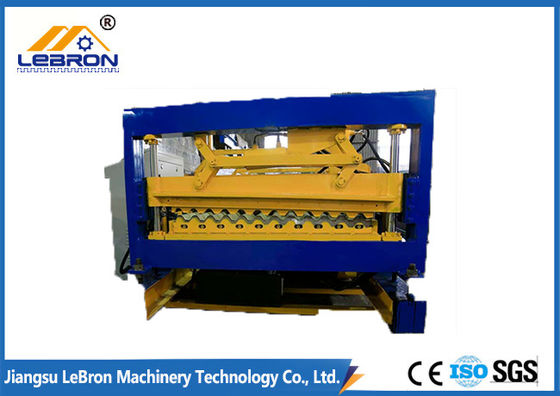

GI And GL Material Glazed Tile Roll Forming Machine , Joint Hidden Roof Panel Roll Forming Machine

GI And GL Material Glazed Tile Roll Forming Machine , Joint Hidden Roof Panel Roll Forming Machine
GI And GL Material Glazed Tile Roll Forming Machine , Joint Hidden Roof Panel Roll Forming Machine GI And GL Material Glazed Tile Roll Forming Machine , Joint Hidden Roof Panel Roll Forming Machine GI And GL Material Glazed Tile Roll Forming Machine , Joint Hidden Roof Panel Roll Forming Machine GI And GL Material Glazed Tile Roll Forming Machine , Joint Hidden Roof Panel Roll Forming Machine

Large Image :  GI And GL Material Glazed Tile Roll Forming Machine , Joint Hidden Roof Panel Roll Forming Machine

Product Details:
Place of Origin: Wuxi City, Jiangsu
Brand Name: LBM
Certification: ISO9001: 2008
Model Number: LBM-GTM-004
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Export sea worthy packing with each machine fixed and protected in the container
Delivery Time: 30-40 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 26 Sets per Month

GI And GL Material Glazed Tile Roll Forming Machine , Joint Hidden Roof Panel Roll Forming Machine

Description
Warranty Period: 18Months Cutter Material:: CR12 Mould Steel, With Quenched Treatment
Weight: Around 7 Tons Roller Stations: 20 Rollers
Cutter Material: Cr12 Steel Coated With Chrome, Quenched Main Motor Power: 5.5Kw
High Light:

glazed roof tile roll forming machine

,

roof tile manufacturing machine

GI And GL Material Joint Hidden Roof Panel Roll Forming Machine Hydraulic Cut



1. Description of LBM-GTM-004 joint hidden roof panel roll forming machine:



This type joint hidden roof panel roll forming machine is controled by Panasonic PLC control system, produces the YX25-205-820 type concealed metal roofing sheets.



This roll forming machine applies Panasonic PLC control system, including HMI, encoder, inverter and PLC etc, and manufactures the roofing sheets or roof panels fully automaitcally after the input of required cut lengths and quantities. 20 forming roller stations mounted ont the stands, 5.5KW motor equipped on the machine, the concealed roof panel roll forming machine works at a speed around 12-15m/min. The rollers are produced from 45# high grade steel and processed with heat treatment and surface chrome coating treatment etc.





2. Main technical details of LBM-GTM-004 joint hidden roof panel roll forming machine



Technical Items Details
Raw Material Type Aluminium & Steel Coils, PPGI, GI, PPGL
Width 400mm, 500mm, 600mm
Thickness 0.3-0.8 mm
Yield Strength 235-345 MPa or specially designed for 550 MPa
Finished Products Cover width It's up to the final design
Length Adjustable
Required Power Voltage 220V/380V/415V/440V
Driving Motor 5.5 KW
Cutting Motor 2.2 KW
Production Speed of Rollformer 900-1200 meters per hour
Coil Decoiler Info Type Un-powered or Powered
Capacity 5 tons
Rolling Stations 20 sets
Rollers Material #45 high quality steel coated with chrome
Rolling Shaft Diameter 75 mm
Driving Type Chains Transmission
Cutting Type Post-cutting
Operation System Mitsubishi PLC, transducer and touching screen
Supporting Tables 2 sets
Machine Size Around 7.5 x 1.1 x 1.4 meters
Machine Weight Around 7 tons







3. Main components of YX25-205-820 joint hidden roof panel roll forming machine



No. Items Quantity
1 Coil Decoiler 1 set
2 Main Roll Former Direction Guilder 1 set
Rolling System 1 set
Post-cutting Device 1 set
3 Supporting Tables for Finished Products 2 sets
4 Hydraulic Station for Cut Device 1 set
5 PLC Control System 1 set
6 Tools Box with Spare Parts 1 set





3.  LBM-GTM-004  joint hidden roof panel roll forming machine flow chart



GI And GL Material Glazed Tile Roll Forming Machine , Joint Hidden Roof Panel Roll Forming Machine 0





4. LBM-GTM-004 roof panel sketch



GI And GL Material Glazed Tile Roll Forming Machine , Joint Hidden Roof Panel Roll Forming Machine 1





5. Our service



Install and Training:

If buyers come to our factory to inspect, the training to install and operate is provided face to face.

If not, manual and video is provided to show how to install and operate.



During installation and adjustment of the equipment, our engineers shall provide the training to

buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.



After-sale Service:

We provide 12-hour online service for our customers. Phone: +86 15821208506

a .The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller.

When technique men go to the buyer's place to debug the machines, the buyer should pay the

expense of accommodation, and round-trip tickets for the seller’s men. and pay the technician USD60 per day.

b. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.





6. Delivery



GI And GL Material Glazed Tile Roll Forming Machine , Joint Hidden Roof Panel Roll Forming Machine 2

GI And GL Material Glazed Tile Roll Forming Machine , Joint Hidden Roof Panel Roll Forming Machine 3

GI And GL Material Glazed Tile Roll Forming Machine , Joint Hidden Roof Panel Roll Forming Machine 4
