Product Details:
|
Material Of The Profile: | GI Or Color Steel | Thickness Range: | 0.3-0.8mm |
---|---|---|---|
Main Motor Power: | 7.5 Kw | Roll Station: | 18 Stations |
Roll Forming Speed: | Not Less Than 15m/min | Forming Speed: | 10-15m/min |
High Light: | double deck roll forming machine,roofing sheet roll forming machine |
Galvanized Sheet Double Layer Roofing Sheet Roll Forming As Customer Request
1. Description of double layer roof roll forming machine
The double layer forming machine can make two different types wall and roof panels in one machine,including glazed roof tile,roof/wall panel style.
This design of the double layer roll forming machine could increase your productivity and save space,save the costs.The machine max roll speed can reach to 45m/min.This is very popular in abroad due to it high efficiency and can work automatic
2. Main technical details of double layer roof roll forming machine
No. | ||
1 | Material of the profile | GI or color steel |
2 | Thickness range | 0.3-0.8mm |
3 | Main motor power | 7.5kw |
4 | Electric Voltage | 380V, 50Hz, 3Phase |

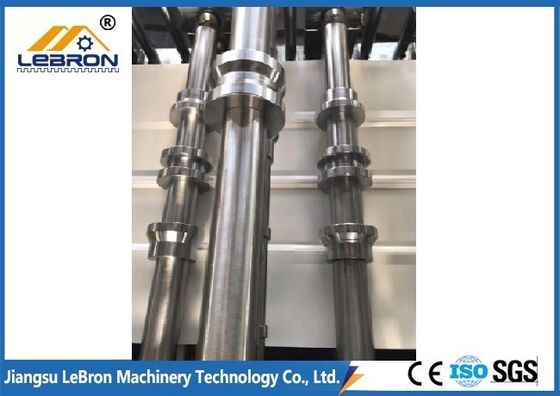

5 | Roll station | 18 stations |
6 | Roller material | ASTM1045 chrome plated surface with chrome,CNC |
7 | Shaft diameter | ¢70mm material: SAE1045 with quenching and tempering |
8 | roll forming speed | not less than 15m/min |
9 | Transmission | by chain, one inch, single line |
10 | Others | Roll former has leveling bolts in the base for adjust the leveling |
Machine base frame adopt H beam welding steel | ||
In the main roll forming machine have 2 buttons for urgency stop if happen any malfunction. | ||
Machine adopt new station to make machine more strong | ||
To avoid accidents,all of drive part adopt protect cover |
3. Main components of double layer roof roll forming machine
Name | Description |
1. Manual decoiler |
Dimensions: 1700mm*1000mm*800mm Width of feeding: 1250mm Inter diameter: 480-570mm Mode of expand &fight: inner expand &fight by manual |
2. Forming section |
Adjustable center of the forming rollers and of sufficient length to prevent lateral movement of the strip on its entry to flatten. Feeding width:900-1300mmmm Entrance and guide roller: diameter is ¢70mm, material is SAE1045,surface with chrome |
3. Hydraulic cutting |
Cutting after forming: Cut to length after roll forming Length measuring: Automatic encoder length measuring Brand: Omron The cutting sequence is also controlled by the same PLC program |
4. Receiving table |
Jointed by 60mm*40mm tube Two sets. |
5. Hydraulic station | Hydraulic power: 4Kw Working pressure: 12Mpa adjustable Solenoid valve: 1 group Hydraulic oil: 46# hydraulic oil Color: Blue (or base on customer request) |
6. Control cabinet |
1)Programmable setting of profile length and quantity 3)Operating system language: English and Chinese 4)Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved |
4. Double layer roof sheet roll forming machine
Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand
5. Our service
1). Install and Training:
If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, manual and video is provided to show how to install and operate.
2). After-sale Service:
We provide 12-hour online service for our customers. Phone/Skype: +86 15821208506
a .The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller.
When technique men go to the buyer's place to debug the machines, the buyer should pay the
expense of accommodation, and round-trip tickets for the seller’s men. and pay the technician USD60 per day.
b. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.
