Product Details:
|
Material: | GI, GL Coil | Main Power: | 11 Kw |
---|---|---|---|
Voltage: | 380V/50Hz/3 Phase | Forming Speed: | Approx 8~12m/min |
Roller: | Gcr15 Bearing Steel, Quenched, Coated Chrome | Shaft: | 45# Steel, Quenched, Coated With Hard Chrome |
Roller Station: | 18 Stations | Shaft Diameter: | Dia 65mm |
High Light: | steel door frame roll forming machine,steel door frame making machines |

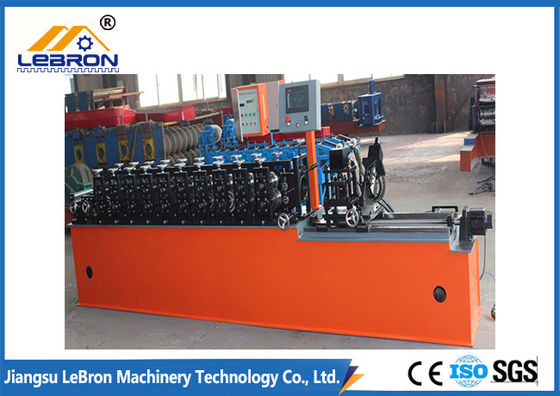

Panasonic plc system control door frame roll forming machine full automatic type
1. Description of Shutter Door Guide Roll Forming Machine
A Shutter Door Guide Roll Forming Machine has been designed for producing steel guide rails for roller shutter doors to open up and close down.
Rolling shutter door track or guide rails are usually made out of galvanized steel or cold rolled steel strips with thickness 1.2-2mm and whenever there is a roller shutter door or a sliding door installed, there will be the door track or guide rails.
A rolling shutter door track is a rail or channel in which rolling shutter doors (made up of small horizontal interlocking roller shutter slats or rolling shutter door panels) are guided when raised up and lowered down to open or close. There are different types of rolling shutter door track or guide rails used for rolling shutter doors and it is important to make clear what kind of door tracks used in your markets before the purchasing of a rolling shutter door track roll forming machine.
The Shutter Door Guide Roll Forming Machine is a complete production line which was used for manufacturing various shapes of metal shutter tracks and profiles.
2. Technical Parameters of Shutter Door Guide Roll Forming Machine
No. | Item | Description |
1 | Uncoiler | Manual Uncoiler |
2 | Loading Weight | 3T |
3 | Inner Diameter | 480-520mm |
4 | Outer Diameter | Max 1250mm |
5 | Leveler | with a Feeding Guide Unit |
6 | 7-Roller Leveler | 3 rollers up and 4 rollers down with no power |
7 | Leveling Thickness | 2mm maximum |
8 | Diameter of Leveling Roller | Dia 76mm |
9 | Main Structure of the Machine | 36# “H” Beam Steel |
10 | Rolling Stations | 18 stations |
11 | Forming Speed | Approx. 8-12m/min |
12 | Diameter of Shaft | 65mm |
13 | aterial of Shaft | 45# steel with heat treatment |
14 | Material of Roller | Gcr15 Bearing Steel |
15 | Transmission | Chains-bracket |
16 | Main Motor Power | 11KW (subjected to final design) |
17 | Cutting | Hydraulic cutting |
18 | Cutting Length and Quantity | Clients can set the required length and quantity on the PLC touch screen |
19 | Electrical Motor Power | 3KW (subjected to final design) |
20 | Tolerance of Cutting Length | +/-2mm |
21 | PLC Control Box | 700mmx1000mmx300mm |
22 | Computer Control System | Panasonic PLC |
23 | Encoder | Omron Brand |
24 | Voltage | 380V, 50Hz, 3 phase |
3. Main Components of Shutter Door Guide Roll Forming Machine
No. | Item | Quantity |
1 | Decoiler | 1 Set |
2 | Guide Device | 1 Set |
3 | Main Roll Forming System | 1 Set |
4 | Hydraulic Cutting device | 1 Set |
5 | Hydraulic Station | 1 Set |
6 | Run-out Table | 2 Sets |
7 | Control System | 1 Set |
4. After Sale Service
A. Foreign debugging
If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day
B. Guarantee period
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).
C. Training
During installation and adjustment of the equipment, our engineers shall provide the training to
buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.
D. Lifetime services
Life time services to every customer.
