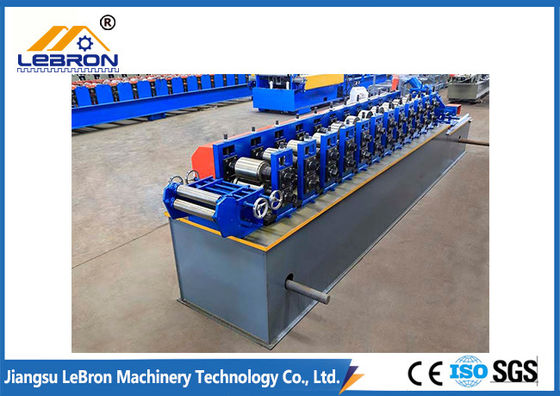

High Quality Fully Automatic High Speed Steel Stud And Track Roll Forming Machine

High Quality Fully Automatic High Speed Steel Stud And Track Roll Forming Machine
High Quality Fully Automatic High Speed Steel Stud And Track Roll Forming Machine

Large Image :  High Quality Fully Automatic High Speed Steel Stud And Track Roll Forming Machine

Product Details:
Place of Origin: Wuxi, Jiangsu, China
Brand Name: Lebron-Machinery
Certification: CE/CAS/Soncap Certificate
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 15000~25000 per Set
Packaging Details: Export sea worthy packing with each machine fixed and protected in the container
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 20 Sets per Month
Detailed Product Description
Main Power: 5.5KW Hydraulic Power: 4.0KW
Suitable Material: Galvanized Steel, Cold-rolled Steel Strip Roller Station: 12 Stations
Speed: Approx. 25m/min Voltage: 380V/50Hz/3Ph (can Customs)

High Quality Fully Automatic High Speed Steel Stud And Track Roll Forming Machine





1. Description of stud and track roll forming machine



The studs and track shapes mainly include C shape, U shape, W shape, C shape with holes, L shape, etc. These products are widely used in many kinds of buildings, such as industrial factories, civilian buildings, and wallboard for the attached part product. They have the advantages of pretty appearance, durable use, and so on.



A steel stud and track roll forming machine usually consists of a manual decoiler, a feeding guide unit, a punching tool, a roll forming unit, a cutting unit, a transmission unit, a hydraulic unit, a control unit, and run-out tables. Under the PLC control system, this drywall stud and track roll forming machine fully automatically produces 4-6 metal c studs or u tracks out of galvanized steel of 0.6-1.2mm thickness from punching, roll forming, and cutting.



The stud and track roll forming machine equips the Mitsubishi PLC system. A touchscreen can realize the friendly man-machine interaction. And the system is simple to learn and very easy to operate. Once you set the quantity and length data of the product, the machine will produce the products automatically.





2. Major technical parameters of the stud and track roll forming machine



No. Item Description Remark
1 Yield Strength of Material 550 MPa/ 350 MPa
2 Material Thickness 0.6-1.2 mm
3 Diameter of Main Shaft 60 mm Can be custom
4 Principal Axis Material Steel 45, Heat Treatment
5 Roller Material Cr12, Heat Treatment
6 Roll Station 10 Rows Can be custom
7 Main Motor Power 5.5 Kw Can be custom
8 Driving Mode By Gear Box Or Chain
9 Sprocket P-25.4
10 Hydraulic Station Power 4Kw With Cooling System Can be custom
11 Hydraulic Oil Pump CB-E310
12 Material of Blade Cr12, Heat Treatment Can be custom
13 Cutting Way Pause to Cutting, Non-stop
14 Electrical System PLC and HMI touch Screen
15 Voltage 380V/50Hz/3Ph Can be custom





3. Main components of the stud and track roll forming machine



Name Quantity Units
Passive Uncoiler 1 Set
Feeding Device 1 Set
The Main Roll Forming Unit 1 Set
Hydraulic Cutter 1 Set
Hydraulic Station 1 Set
PLC System 1 Set
Ran-out Table 1 Set





5. Our Advantage



Our factory has more than 11 years of working experience in researching and selling. Products are well sailed all over the world, got many compliments from customers.



1). Germany COPRA software design



2). 5 engineers with more than 20 years of experience



3). 15 professional technicians



4). 11 sets of advanced CNC production lines on site



5). Passionate Team



6). Installation engineers can reach your factory within 6 days



7). 1-year maintenance and whole life technical support





6. After-Sale FAQ:



1). Q: How to acquire service support?

A: Lebron-Machinery is doing its best to provide timely and convenient service support for the customers, the contents of services include before-sale technical counseling, field installation, operation technical training, application solution training, troubleshooting support, etc.



2). Q: After purchasing Lebron-Machinery’s machine, what kind of training could Lebron-Machinery provide?

A: Lebron-Machinery will provide 7 days of free training. The training place can be in Lebron-Machinery company or in places designated by the customer where installation takes place, this can all be predetermined by clients in the contract.



3). Q: What kind of warranty do Lebron-Machinery’s roll-forming machines provide?

A: Except for the consumables, the whole machine has a one-year limited warranty.



4). Q: After buying Lebron-Machinery’s equipment, are there technicians in charge of supporting on-site installation?

A: Yes, if the equipment is directly sold from Lebron-Machinery, we will arrange experienced technicians to support the installation and collaboration when the machine arrives. If the device is sold by Lebron-Machinery’s distributors, we will authorize them to send experienced engineers to support the installation and collaboration when the machine arrives. Except the contract made other agreements for the installation.
