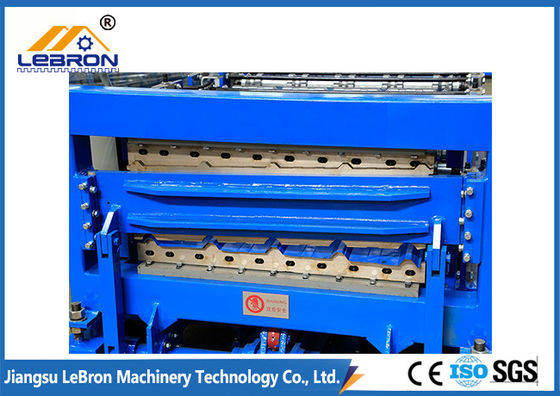

15Rows IBR Double Layer Roll Forming Machine Trapezoidal Sheet Roll Former

15Rows IBR Double Layer Roll Forming Machine Trapezoidal Sheet Roll Former
15Rows IBR Double Layer Roll Forming Machine Trapezoidal Sheet Roll Former
15Rows IBR Double Layer Roll Forming Machine Trapezoidal Sheet Roll Former 15Rows IBR Double Layer Roll Forming Machine Trapezoidal Sheet Roll Former 15Rows IBR Double Layer Roll Forming Machine Trapezoidal Sheet Roll Former 15Rows IBR Double Layer Roll Forming Machine Trapezoidal Sheet Roll Former 15Rows IBR Double Layer Roll Forming Machine Trapezoidal Sheet Roll Former

Large Image :  15Rows IBR Double Layer Roll Forming Machine Trapezoidal Sheet Roll Former

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lebron-Machinery
Certification: ISO CE
Model Number: Corrugated and Trapezoidal Double Layer
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 15000-25000 per Set
Packaging Details: Standard export packing with each machine tied and protected in the container
Delivery Time: 35 Workdays
Payment Terms: L/C, T/T
Supply Ability: 25 Sets per Month

15Rows IBR Double Layer Roll Forming Machine Trapezoidal Sheet Roll Former

Description
Main Power: 7.5Kw Machine Size: 10*1.8*1.5m
Machine Weight: About 10 Tons Roller Station: 14 Stations (upper) & 18 Stations (downer)
Hydraulic Power: 5.5KW Speed: 12~15m/min
High Light:

IBR Sheet Making Machine

,

15Rows Double Layer Roll Former

,

Double Layer Trapezoidal Sheet Roll Former

IBR Sheet Making Machine Double Layer Roll Forming Machine Fully Automatic



1. Description



This Double Layer Trapezoidal Sheet Roll Forming Machine is used to produce two kinds of trapezoid sheets



Compared to a single layer roof panel roll forming machine, a double layer roll forming machine is designed to produce two different kinds of metal sheets which can be one trapezoidal roofing and one roof/wall cladding sheet; or one trapezoidal roofing sheet and one corrugated roofing sheet; or one trapezoidal sheet and one metal roof tile; or one corrugated sheet and one metal glazed roof tile, etc. To sum up, any two of the metal roof panels can be produced by this same double deck roll forming machine.



The two-layer or two levels roll forming parts share the same motor and the change of running between the top and bottom roll forming part is made through a clutch equipped on this double layer roll forming machine.



A double sheet roll forming machine usually consists of a decoiler, two entry feeding guides with entry shearing optional, two roll forming systems, one Cutting frame with two cutting dies, one transmission system, one control system, and run-out tables.



Hydraulic decoiler and auto stacking machine are optional to this double layer roll forming machine as per requirements. For European customers, there are safety covers as well as a CE sign on the machine body.





2. Technical Parameters



No. Item Description
1 Suitable Material GI, PPGI, GL, PPGL Steel Coil
2 Roller

Upper layer: 13 Rows

Downer Layer: 15Rows

3 Dimensions 8*1.8*2m
4 Main Power 7.5Kw
5 Hydraulic Station Motor 4Kw
6 The thickness of the plate 0.3-0.8mm
7 Productivity 10-15m/min
8 Material of the cutting blade Cr12, Quenched treatment 58℃-60℃
9 Diameter of the roller Φ70mm
10 Weight About 5200kgs
11 The main structure of the machine 350H beams
12 Processing precision Within 1.0mm
13 The side panel of the machine 16mm
14 Chain Wheel and Cycle Chain 1.5 Inch
15 Voltage 380V 50Hz 3phases or as customers need
16 Control system PLC control (Siemens)
17 Frequency system Siemens
18 Drive mode Motor + Chain
20 Rolling materials 45# forging steel with chromium plate





3. FAQ:



1). Q: Are you a manufacturer, trading company?

A: We are a manufacturer, and we have built up our company since 2007.



2). Q: Where is your factory located?

A: Our factory address is: No. 551, the Zhenze West Road, Huazhuang Street, Binhu District, Wuxi City, Jiangsu, China



3). Q: How can I get to your factory?

A: Our factory is near Shanghai Airport, we can pick you up at the airport. Or you can by plane direct to Wuxi airport. We can pick you up.



4). Q: If I will need to stay in your place for a few days, is that possible to book the hotel for me?

A: It’s always my pleasure, a hotel booking service is available.





4. Quality Guarantee



The Seller shall guarantee the goods with materials and workmanship in accordance with the required on the drawings, brand new, unused, and correspond in all respects with the quality, specification, and performance as stipulated in drawings and guarantee a good smooth operation for 12 months after the date of shipment (except consumables). This guarantee excludes the parts that require normal plant maintenance. The guarantee is strictly limited to the repairing and the replacing of the mechanical parts supplied by us found to be defective provided that failure has occurred during the ordinary use of the equipment and it is not accepted and claimed due to damage to people, property, or loss of production.





5. Quality Assurance



The company organizes the production as per ISO9001:2008 standard. From design control, process control, inspection control to delivery, installed and service, we all operate a whole strict process control system. The running of the quality system performs quality manual, procedure files, work instruction, and related technical and management standards together with standard and regulation layout by the company. The quality system realizes the whole screw and whole procedure control completely.



15Rows IBR Double Layer Roll Forming Machine Trapezoidal Sheet Roll Former 0



15Rows IBR Double Layer Roll Forming Machine Trapezoidal Sheet Roll Former 1



15Rows IBR Double Layer Roll Forming Machine Trapezoidal Sheet Roll Former 2
