| Material: | GI/GL/PPGI/PPGL Coil | Thickness: | 0.3~0.8mm |
|---|---|---|---|
| Roller: | 45# Steel, Quenched, Coated With Hard Chrome | Roller Station: | 15~20 Stations |
| Shaft: | No. 45 Steel, Quenched, Dia 70~90mm | Blade: | Cr12 Mould Steel With Quenched Treatment 58-62 |
| High Light: | double deck roll forming machine,roofing sheet roll forming machine |
||

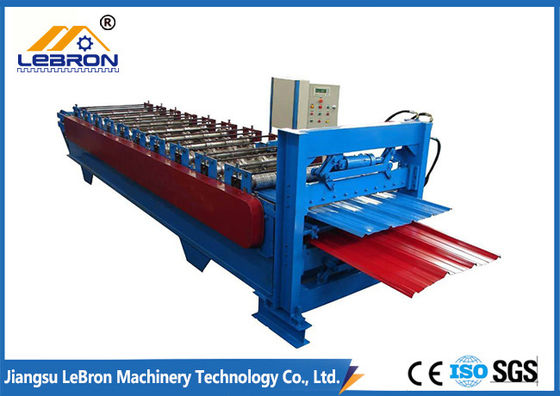

Color steel tile corrugated roof double layer roofing sheet roll forming machine
1. Description of Double Layer Roofing Sheet Roll Forming Machine
Compared to a single layer roof panel roll forming machine, a double layer roll forming machine is designed to produce two different kinds of metal sheets which can be one trapezoidal roofing and one roof/wall cladding sheet; or one trapezoidal roofing sheet and one corrugated roofing sheet; or one trapezoidal sheet and one metal roof tile; or one corrugated sheet and one metal glazed roof tile etc. To sum up, any two of the metal roof panels can be produced by this same double deck roll forming machine.
2. Main technical details of Double Layer Roofing Sheet Roll Forming Machine
| Item | Technical parameter | |
| Suitable Material | Type | PPGI/GI/PPGL |
| Thickness | 0.3-0.8mm | |
| Wide | 914mm/1000mm/1200mm/1250mm/1450mm | |
| Yield Strength | 230~550MPA | |
| Product Specs |
Profile | Customized profile |
| Effective width | Base on a customized profile | |
| Length | Any length | |
| Power Specs |
Voltage | 380V/3PH/50HZ, accept customization |
| Main Motor | 5.5kw | |
| Hydraulic motor | 4kw | |
| Hydraulic pressure | 10-12MPa | |
| Machine Specs |
Forming steps number | 13~20 steps |
| Shaft Material | 45 # steel tempered, 70~90mm | |
| Roller Material | 45 # steel chrome coated | |
| Main machine body | 350# H steel welded | |
| Transmission | Chain and Sprocket, chain size 1.5 inch | |
| Wall Plate | 16mm thickness | |
| Blade material | Cr12 mold steel with quenched treatment 60-62 | |
| Forming Speed | 8-12m/min for standard solution | |
| Cutting system | Length-set cutting after roll formed and could pre-cutting to switch off the coils |
|
| Control System | Delta PLC and Converter | |
| Manual uncoiler | Max width of coiling: 1000~1450mm Max weight of loading: 5000kg |
|
| Output Supporter | 2 Pcs Simple Supporter | |
| Dimension of the machine | 7.5m~11m1.5mm1.2m | |
| Weight of the machine | 3.5 ton ~6 ton | |
3. Main features of Double Layer Roofing Sheet Roll Forming Machine
1). This roll forming machine can roll form metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on the surface.
2). Roll forming process: uncoiler, roll forming, forming step effect, cut to length.
3). Fully Automatic Control System with PLC.
4). Easy operation: Key in the length and quantity on the control panel.
5). 18 months warranty.
4. Main Components of Double Layer Roofing Sheet Roll Forming Machine
| Name | Quantity | Units | |
| Decoiler | 1 | Set | |
| Main Machine | Feeding device | 1 | Set |
| Roll forming system | 1 | Set | |
| Cut Equipment | 1 | Set | |
| Hydraulic system | 1 | Set | |
| Electric control system | 1 | Set | |
| Ran-out Table | 2 | Sets | |
