Blue Full Automatic Roll Forming Machine For IBR Sheet And Corrugated Sheet

Blue Full Automatic Roll Forming Machine For IBR Sheet And Corrugated Sheet
Blue Full Automatic Roll Forming Machine For IBR Sheet And Corrugated Sheet Blue Full Automatic Roll Forming Machine For IBR Sheet And Corrugated Sheet Blue Full Automatic Roll Forming Machine For IBR Sheet And Corrugated Sheet Blue Full Automatic Roll Forming Machine For IBR Sheet And Corrugated Sheet

Large Image :  Blue Full Automatic Roll Forming Machine For IBR Sheet And Corrugated Sheet

Product Details:
Place of Origin: Wuxi, Jiangsu
Brand Name: Lebron-Machinery
Certification: ISO 9001: 2008
Model Number: 835 Corrugated & 840 IBR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD30000 per set
Packaging Details: Standard packing with each machine and components fixed and protected in the container
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 20 Sets per Month

Blue Full Automatic Roll Forming Machine For IBR Sheet And Corrugated Sheet

Description
Main Power: 15KW Upper: 14 Stations
Lower: 18 Stations Speed: 15~20m/min
Roller Material: No.45 Steel. Quenched Raw Material: GI, GL, PPGI & PPGL Coil
High Light:

metal sheet roof roll forming machine

,

roofing sheet roll forming machine



IBR Sheet and Corrugated Sheet Blue Double Layer Roll Forming Machine Full Automatic



1. Description of IBR Sheet and Corrugated Sheet Double Layer Roll Forming Machine



This kind of double layer roll forming machine is designed to produce two different kinds of metal sheets. One is IBR Sheet, another one is Corrugated Sheet.



However, the two layers of the roll forming parts cannot work at the same time, which means each one of the roll forming systems (top roll forming and bottom roll forming) will stop when the other is working.



The two-layer or two levels roll forming parts share the same motor and the change of running between the top and bottom roll forming part is made through a clutch equipped on this double layer roll forming machine.





2. Major Technical Parameters of IBR Sheet and Corrugated Sheet Double Layer Roll Forming Machine



Suitable

Material

Type GI Coil, PPGI & PPGL Coil
Thickness 0.3-0.8mm
Wide 1000/1250mm
Yield Strength 550Mpa max

Power

Specs

Voltage 380V/3PH/50HZ
Main Motor 7.5kw
Hydraulic motor 4kw
Hydraulic pressure 10-12MPa

Machine

Specs

Forming steps number 16~20 steps
Shaft Material No.45 steel. Quenched. Diameter: 70mm
Roller Material No. 45 steel, coated with hard chrome
Main machine body 350# H steel welded
Transmission Chain and Sprocket, chain size 1.5 inch
Wall Plate 20mm thickness
Blade material Cr12 mould steel with quenched treatment 60-62
Forming Speed 0-12m/min for standard solution





3. Major features of the IBR Sheet and Corrugated Sheet Double Layer Roll Forming Machine



1). This roll forming machine can roll form metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on the surface.

2). Roll forming process: uncoiler, roll forming, forming step effect, cut to length.

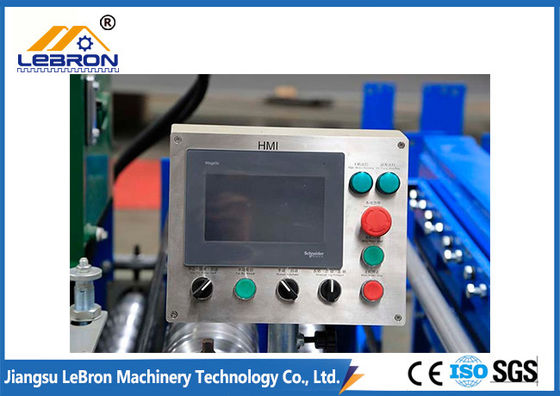

3). Fully Automatic Control System with PLC.

4). Easy operation: Key in the length and quantity on the control panel.

5). 18 months warranty.





4. Application



This double layer roll forming machine is widely used for the production of roofing sheets, roof tile, corrugated roofing sheets, etc.



Blue Full Automatic Roll Forming Machine For IBR Sheet And Corrugated Sheet 0



Blue Full Automatic Roll Forming Machine For IBR Sheet And Corrugated Sheet 1



Blue Full Automatic Roll Forming Machine For IBR Sheet And Corrugated Sheet 2
