Product Details:
|
| Main Power: | 11Kw | Machine Size: | 10*1.8*1.5m |
|---|---|---|---|
| Machine Weight: | About 10 Tons | Roller Station: | 14 Stations (upper) & 18 Stations (downer) |
| Hydraulic Power: | 5.5KW | Speed: | 12~15m/min |
| High Light: | 12m/min profile sheet making machine,trapezoidal metal sheet forming machine,0.8mm sheet metal forming equipment |
||

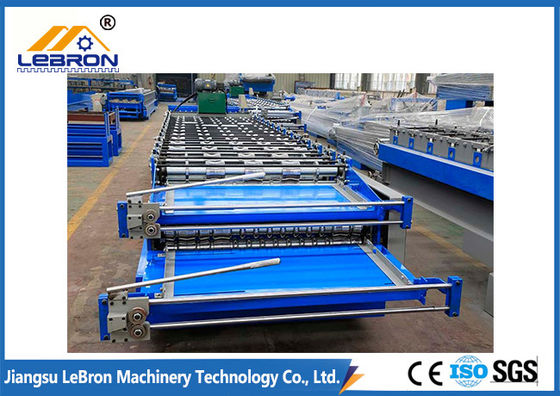

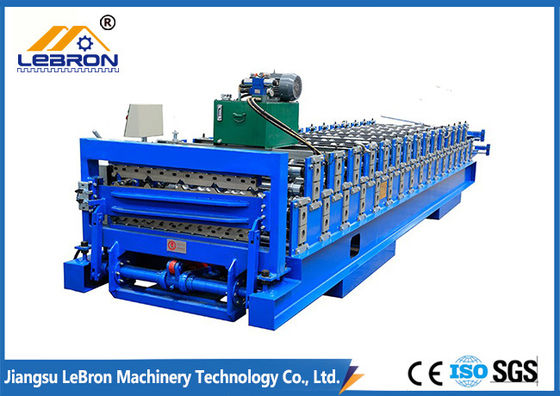

Fully Automatic Metal Sheet Roll Forming Machine Double Layer Roll Forming Machine
1. Description
When you need to produce two different metal sheets, cladding, trapezoidal, corrugated sheets, or metal tiles, a double layer roll forming machine is suitable for you.
Compared to a single layer roof panel roll forming machine, a double layer roll forming machine is designed to produce two different kinds of metal sheets which can be one trapezoidal roofing and one roof/wall cladding sheet; or one trapezoidal roofing sheet and one corrugated roofing sheet; or one trapezoidal sheet and one metal roof tile; or one corrugated sheet and one metal glazed roof tile, etc. To sum up, any two of the metal roof panels can be produced by this same double deck roll forming machine.
2. Technical Parameters
| No. | Item | Description |
| 1 | Coil width | 1000mm |
| 2 | Rolling Speed | 12-15m/min |
| 3 | Rolling Thickness | 0.3-0.8mm |
| 4 | Control System | Siemens PLC |
| 5 | Uncoiler | 10 Tons Manual uncoiler |
| 6 | Suitable material | GI, GL, PPGI, PPGL Coil |
| 7 | Roller Stations |
Up layer: 14 stations Down layer: 18 stations |
| 8 | Roller Material | No.45 steel. Coated with hard chrome |
| 9 | Shaft Material and Dia |
Dia 75mm material: 45# with quenching and tempering |
| 10 | Post cutting | The machine adopts hydraulic cutting system |
| 11 | Material Of Cutting | Cr12, 58-62 HRC hardness |
| 12 | Maim Motor Power | 11kw |
| 13 | Hydraulic Station Power | 7.5kw |
| 14 | Hydraulic Pressure | 12-16Mpa adjustable |
| 15 | Structure Of The Stations | Guide pillar |
| 16 | Tolerance | 3m+-1.5mm |
| 17 | Electric Source |
380V, 50HZ,3 phase According to customer’s require |
| 18 | Way Of Drive | By chain |
3. After Sale FAQ:
1). Q: How to acquire service support?
A: Lebron-Machinery is doing its best to provide timely and convenient service support for the customers, the contents of services including before-sale technical counseling, field installation, operate technical training, application solution training, and troubleshooting support, etc. You can gain service support from our distributors in your region.
2). Q: After purchase Lebron-Machinery’s machine, what kind of training could Lebron-Machinery provide?
A: Lebron-Machinery will provide 7 days’ free field training. The training place can be in Lebron-Machinery company or in places designated by customer where installation takes place, this can all be predetermined by clients in the contract.
3). Q: What kind of warranty does Lebron-Machinery’s gutter machine provide?
A: Except for the consumables, the whole machine has a one-year limited warranty.
4). Q: After buying Lebron-Machinery’s equipment, is there a technician in charge of supporting on-site installation?
A: Yes, if the equipment is directly sold from Lebron-Machinery, we will arrange experienced technicians to support the installation and collaboration when the machine arrives. If the device is sold by Lebron-Machinery’s distributors, LBM will authorize them to send experienced engineers to support the installation and collaboration when the machine arrives. Except the contract made other agreement for the installation.
