Hydraulic Trapezoidal Roofing PPGI Sheet Roll Forming Machine

Hydraulic Trapezoidal Roofing PPGI Sheet Roll Forming Machine
Hydraulic Trapezoidal Roofing PPGI Sheet Roll Forming Machine Hydraulic Trapezoidal Roofing PPGI Sheet Roll Forming Machine Hydraulic Trapezoidal Roofing PPGI Sheet Roll Forming Machine

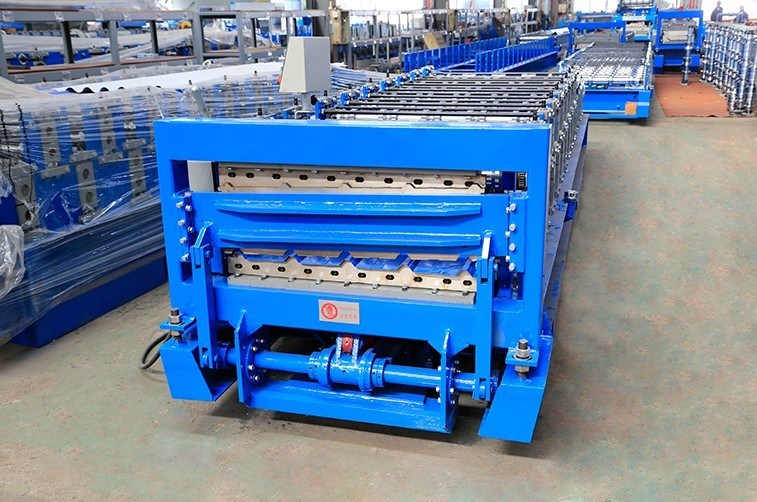

Large Image :  Hydraulic Trapezoidal Roofing PPGI Sheet Roll Forming Machine

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lebron
Certification: ISO 9001: 2008
Model Number: Double Layer Roll Forming Machine
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: USD 18000-25000 per Set
Packaging Details: Export sea-worthy packing with each machine tied and protected in the 40GP' container
Delivery Time: 30-35 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set per Month

Hydraulic Trapezoidal Roofing PPGI Sheet Roll Forming Machine

Description
Name: Sheet Roll Forming Machine Type: GI Coil, PPGI & PPGL Coil
Thickness: 0.3-0.8mm Wide: 914mm/1000mm/1200mm/1250mm/1450mm
Yield Strength: 230~550Mpa Voltage: 380V/3PH/50HZ
High Light:

Hydraulic metal roll forming machine

,

PPGI metal roof roll forming machine

IBR Sheet and Corrugated Sheet Double Layer Roll Forming Machine


Double Layer Roll Forming Machine Description



Compared to a single layer roof panel roll forming machine, this double layer roll forming machine is designed to produce two different kinds of metal sheets which can be one trapezoidal roofing and one metal roof tile



A double sheet roll forming machine usually consists of a decoiler, two entry feeding guides with entry shearing optional, two roll forming systems, one Cutting frame with two cutting dies, one transmission system, one control system and runout tables.



Double Layer Roll Forming Machine Technical Parameters



Suitable

Material

Type PPGI/GI/PPGL Coil
Thickness 0.3-0.8mm
Wide 914mm/1000mm/1200mm/1250mm/1450mm
Yield Strength 230~550Mpa

Power

Specs

Voltage 380V/3PH/50HZ, accept customization
Main Motor 7.5kw
Hydraulic motor 4kw
Hydraulic pressure 10-12MPa

Machine

Specs

Forming steps number 16~22 steps
Shaft Material 45 # steel tempered, 70mm
Roller Material 45 # steel coated with hard chrome
Main machine body 350# H steel welded
Transmission Chain and Sprocket, chain size 1.5 inch
Wall Plate 18mm thickness
Blade material Cr12 mould steel with quenched treatment 60-62
Forming Speed 0-12m/min for standard solution
Cutting system Length-set cutting after roll formed
Control System Delta PLC and Converter
Manual decoiler

Max width of coiling: 762~1250mm

Max weight of loading: 5000kg

Output Supporter 2 Pcs Simple Supporter
Dimension of the machine 7.5m*1.5m*1.2m (L*W*H)
Weight of the machine 6 ton


Double Layer Roll Forming Machine Details



Hydraulic Trapezoidal Roofing PPGI Sheet Roll Forming Machine 0

Hydraulic Trapezoidal Roofing PPGI Sheet Roll Forming Machine 1



FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
