Material: | Q235 Galvanized Strip | Thickness: | 1.0~2.0mm |
---|---|---|---|
Roller Station: | 18~20 Stations | Forming Speed: | 8~10m/min (can Be Designed To Higher Speed) |
Production Speed: | 3m/min | Shaft Material: | No. 45 Steel, Quenched, Coated With Hard Chrome |
Shaft Dia: | 90mm | Control System: | Mitsubishi PLC System |
High Light: | cable tray manufacturing machine,cable tray punching machine |

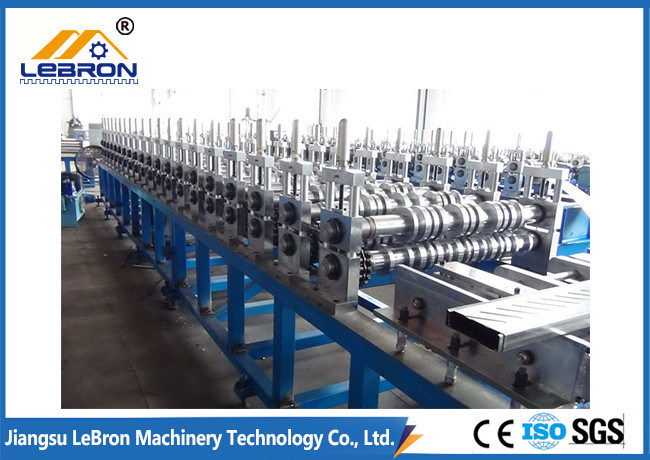

Mitsubishi PLC Control Cable Tray Roll Forming Machine Q235 Carbon Steel Strip Galvanized Strip
1. Description of Cable Tray Roll Forming Machine
Roll forming, also spelled roll formed, is a type of rolling involving the continuous bending of a long strip of sheet metal (typically coiled steel) into the desired cross-section. The strip passed through sets of rolls mounted on consecutive stands, each set performing only an incremental part of the bend until the desired cross-section (profile) is obtained.
The Cable Tray Roll Forming Machine Produced by Lebron-Machinery®, is used for producing cable trays that are used in different kind of factories and buildings. We offering you to Cable Tray Machine that comprise of efficient Punching Press, Hydraulic Press, Electric Control panel and much other Equipment, which make it an ideal option for many. The Cable Tray Roll Forming Machine can Manufacture both superiority and quantity cable trays in less time.
2. Major Technical Parameters of Cable Tray Roll Forming Machine
Machine Specifications | |
Weight | About 8000kgs |
Size | About 10.5m x 1.6m x 1.5m (L x W x H) |
Color | Main color: blue |
Warning color: yellow | |
Suitable Raw Material | |
Material | Q235A Galvanized Steel Coils |
Thickness | 1.0-2.0mm |
Coil width | According to products size |
Yield strength | 235Mpa |
Main Technical Parameters | |
Quantity of forming rollers stations | 18~20 stations |
Diameter of forming rollers shafts | 90mm |
Roll Forming Speed | 8~10m/min |
Production Speed | 3m/min |
Forming rollers material | Gcr15 mold steel, with quenched treatment |
Cutter material | CR12 mold steel, with quenched treatment |
Controlling system | PLC and Converter |
Electric power requirement | Total Main motor power: 35kw |
Hydraulic unit motor power: 5.5kw | |
Electric voltage | According to customers requirement |
3. Major Components of Cable Tray Roll Forming Machine
No | Item | Quantity |
1 | Uncoiler | 1 Set |
2 | Heavy duty presser | 1 Set |
3 | Feeder | 1 Set |
4 | Guider | 1 Set |
5 | Roll Former | 1 Set |
6 | Hydraulic Cutting | 1 Set |
7 | Receive Table | 2 Sets |
4. Our service
Install and Training:
If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, manual and video are provided to show how to install and operate.
After-sale Service:
We provide 12-hour online service for our customers. Phone: +86 15821208506
a.The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller.
When technique men go to the buyer's place to debug the machines, the buyer should pay the
expense of accommodation, and round-trip tickets for the seller’s men. and pay the technician USD60 per day.
b. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.
Contact Person: Alfred
Tel: +8618121549786
