Product Details:
|
Main Power: | 18.5 Kw | Hydraulic Power: | 7.5Kw |
---|---|---|---|
Material: | Galvanized Steel Coil | Thickness : | 1.5~3.0mm |
Roller Station: | 16 Stations | Speed: | Approx. 8-12m/min |
Size: | Approx. 10.0m*1.5m*1.2m | Weight: | 10 Tons |

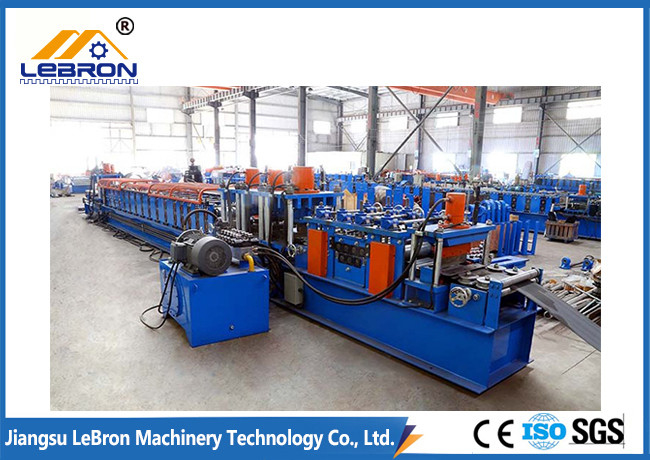

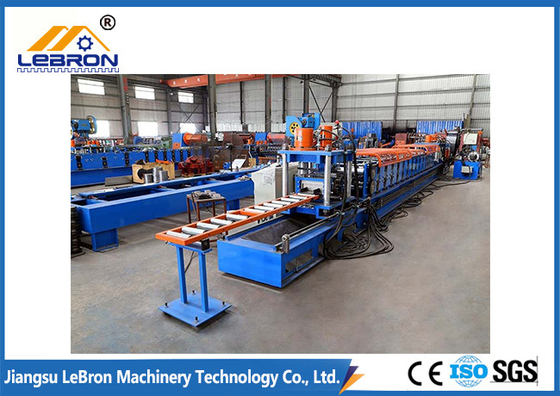

High Efficiency High Speed Durable Fully Automatic C Purlin Roll Forming Machine
1. Description of C purlin roll forming machine
C purlin production process: use the steel strip as the raw material, the processes such as Leveling, Rolling, Punching, standard length Cutting, etc. become the final product. It can be used for the significant stress structure of large and middle-sized industrial constructions and civilian constructions. The roof load-bearing and wall panel support the plants, warehouses, engine houses, hangars, exhibition halls, cinemas, gymnasiums, fair flower stands, etc.
This C purlin roll forming machine is for steel sheet cold-form industries. It can form the steel sheet to the C shape according to the customer’s requirement continuously, automatically cut to length. The equipment adopts PLC control, AC frequency, and adjusting the speed technology. And it has many advantages, just as high forming speed, low noise, stable transmission, easy operation, good appearance, and so on.

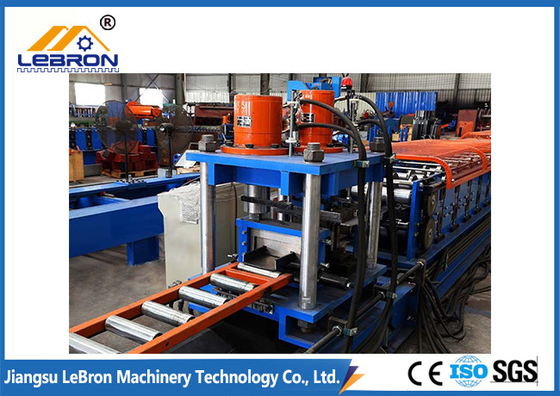

The main components of a C Channel Roll Forming Machine include a manual decoiler, a feeding guide for materials of different sizes, a leveling device, a front hydraulic punching for holes or slots on flanges, a roll forming part, a rear hydraulic punching for holes or slots on the web, a hydraulic cutting for a cut to length, a PLC control cabinet, and a hydraulic oil pump.
LBM factory manufactures high-quality C purlin roll forming machines and exports them to foreign countries such as Australia, India, Uzbekistan, Indonesia, Croatia, Thailand, etc.
2. Technical Parameters of C Purlin Roll Forming Machine
No. |
Item |
Description |
1 |
Suitable Material |
GI, GL, PPGI, PPGL Coil, Q235 Coil |
2 |
Suitable Thickness |
1.5~3.0mm |
3 |
Roller Station |
16 stations |
4 |
Forming Speed |
8~12m/min (including the punching and cutting) |
5 |
Roller Material |
GCr15 Bearing Steel. Quenched. Hardness: 58~62 HRC |
6 |
Main Motor Power |
15 KW |
7 |
Shaft Material |
Cr40 steel, Tempering, and Quenching |
8 |
Shaft Diameter |
70mm |
9 |
Cutting |
Hydraulic Cutting |
10 |
Blade Material |
C12MoV, Quenched |
11 |
Hydraulic Station Power |
7.5 KW |
12 |
Drive Type |
Single row Chain Drive |
13 |
Machine Size |
10500mmx1500mmx1200mm (L*W*H) |
14 |
Machine Weight |
Approx 10 tons |
15 |
Machine Frame |
48mm Thick Plate |
16 |
PLC Control System |
Panasonic |
3. Main Components of CZ Purlin Roll Forming Machine
No. |
Name |
Quantity |
Remark |
1 |
5Tmanual decoiler |
1 |
As one complete part |
2 |
Guiding device |
1 |
|
3 |
Pre-cutter |
1 |
|
4 |
Forming system |
1 |
|
5 |
Transmission system |
1 |
|
6 |
Hydraulic guillotine |
2 |
|
7 |
Support table |
2 |
|
8 |
Hydraulic station |
1 |
|
9 |
Control box |
1 |
|
10 |
Spare parts and tools |
1 |
As attaching list |
4. Our Service
A. Foreign debugging
If you need it, we will arrange for our professional engineers to help you install and debug the machines well. The buyer should pay $100 per day
B. Guarantee period
The warranty will be a maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by humans are excluded).
C. Training
During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.
5. FAQ:
1Q: Are you a factory or trading company?
1A: We are a factory.
2Q: Where is your factory located?
2A: Our factory is located in Wuxi City, Jiangsu Province, China. You are warmly welcome to visit us!
3Q: What should I provide if I would love to customize the machine?
3A: We need profile drawing, and material information, such as feeding width, thickness, yield strength of steel coil, voltage, and your special requirements.
4Q: What I should do if I just start to know roll forming machinery?
4A: Contact us immediately, we provide free consultant pre-sales service.
5Q: Can you make the machine according to my design or phototype?
5A: Yes. We have a professional designer for working out the most suitable design and production plan for the machine that you are going to book with us
6Q: How can I trust you that machines passed testing running before shipping?
6A: We record the testing video for your reference. You are welcome to visit us and test the machine in our factory.
7Q: Do you provide installing and training overseas?
7A: Overseas machine installation and worker training services are optional.
8Q: How is your after-sales support?
8A: We provide technical support online as well as overseas services by skillful technicians.
9Q: Guarantee period:
9A: Within one year from the date of finishing commissioning. The guarantee covers all the electric, mechanic, and hydraulic parts in the line except for the easy-worn parts.
Contact Person: Alfred
Tel: +8618115330187
