Product Details:
|
Main Power: | 5.5KW | Hydraulic Power: | 4.0KW |
---|---|---|---|
Suitale Thcikness: | 1.2-2.0mm | Roller Station: | 20 Stations |
Speed: | 12~15m/min | Weight: | About 6Tons |
High Light: | Shutter Door Roll Forming Machine Automatic,Shutter Door Roll Forming Machine 5.5KW,Shutter Door Roll Forming Machine 2.0mm |
High Quality Long Service Time Fully Automatic Shutter Door Roll Forming Machine
1. Description of shutter door roll forming machine:
There are a variety of rolling shutter door profiles on the market, such as C shape, W shape, T shape, etc. Rolling Shutter Making Machines are always required for the manufacturing of profiles for rolling shutter doors to raise up and lowered down. Normally, the regular thickness of the galvanized steel strips which for roll-form shutter door profiles is 1.2-2.0mm thickness.

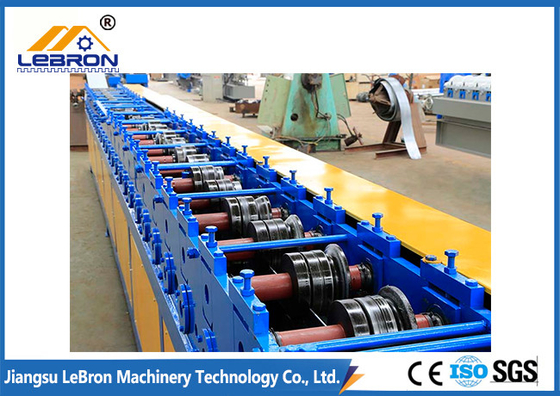

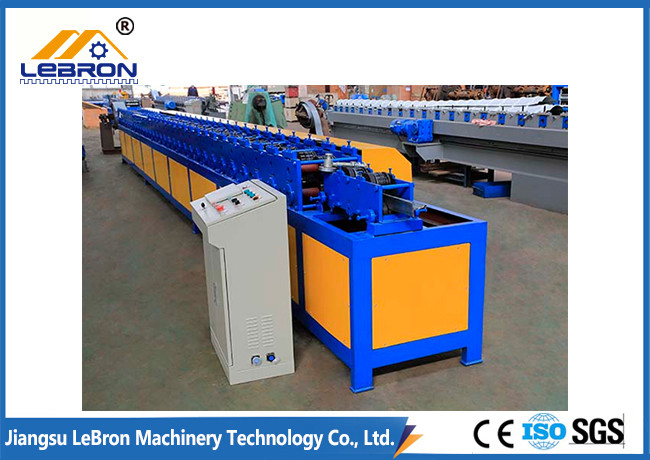

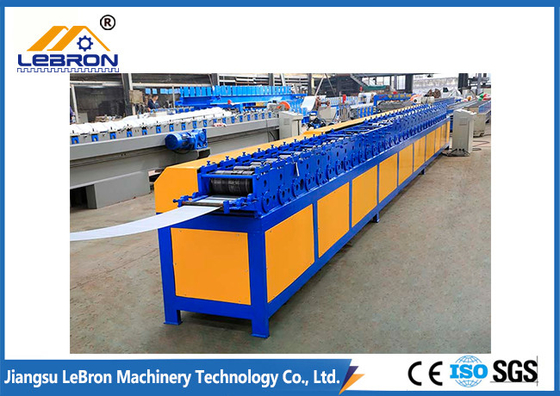

Normally, a Rolling Shutter Door Making Machine for the production of rolling shutter door profiles generally consists of a Uncoiler, Leveler device, main Roll Forming system, Transmission system (chain-brackets or gearbox), Cutting Device, Hydraulic Station, PLC control cabinet and run-out tables.
Our Shutter Door T Profile Roll Forming Machine is customized, we can design and produce a rolling shutter door slat roll forming machine according to your outline drawing. Here I am attaching a profile drawing of our rolling door for your reference, you can choose what you want and then tell me, and we will produce the machine according to the profile drawing you choose.
Lebron-Machinery is manufacturing high-quality Shutter Door Roll Forming Machines, and most of the machines are exported to Australia, the UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore, Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique, Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
2. Technical details of shutter door roll forming machine:
Suitable Material | Coil Type | GI, GL Coil |
Coil Thickness | 1.2~2.0mm | |
Coil Width | According to design | |
Yield Strength | 250~350Mpa | |
Decoiler | Decoiler type | Hydraulic |
Weight Capacity | 6 Tons | |

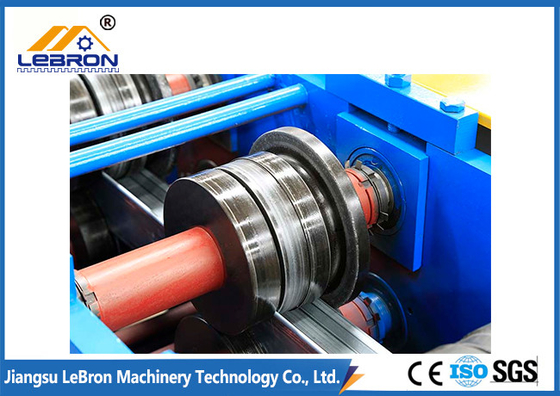

Main Roll Forming | Forming Station | 22 stations |
Roller Material | 45# Steel. Quenched. 0.05mm hard chrome coated | |
Shaft Material | 45# Steel. Quenched. 0.05mm hard chrome coated | |
Shaft Diameter | 65mm | |
Drive Type | Chain drive | |
Forming Speed | 12~15m/min | |
Main Power | 5.5 KW | |
Cutting device | Cutting Device | Hydraulic Cutting |
Cutting die Material | Cr12MoV | |
Cutting Tolerance | +/-1mm (10m) | |
Hydraulic Station | 4 KW, with 12Mpa pressure | |
Electric System | PLC Brand | Panasonic |
Converter | Yaskawa | |
Encoder | Omron | |
Reducer | Guomao | |
Touch Screen | MCGS | |
Electrical parts | Schneider | |
Run-out Table | Type | No power with passive rollers |
Function | Support the profiles after cutting | |
Machine | Dimension | 3.5m*0.5m*0.8m (L*W*H) |
Weight | 3.5 Tons |
3. Main components of shutter door roll forming machine
No. |
Name |
Quantity |
1 |
Uncoiler |
1set |
2 |
Guiding and Leveling Device |
1set |
3 |
Main Roll Forming System |
1set |
4 |
Hydraulic Cutting Device |
1set |
5 |
Hydraulic Station |
1set |
6 |
Electric Control Cabinet |
1set |
7 |
Receiving Table |
1set |
4. Our Advantage
1). We are a factory with over 10 years of experience in manufacturing Roll Forming Machines;
2). We have our own powerful research and development team
3). We have more than 15 technicians.
4). 5 engineers with more than 20 years of experience
5). We have an advanced Laser Cutting Machine, CNC Machining Center, Polishing Line, Painting Line, etc. This advanced production equipment guarantees the good quality of each part and the appearance of our machines;
6). Our machines have reached International Inspection Standards;
5. FAQ:
1. Q: Are you a manufacturer?
A: Yes, we are a manufacturer with over 11 years of experience.
2. Q: If I am new in this field. How could I understand the machine very well?
A: We have a very professional sales team and technology team. We will provide you the detailed introductions by photos, videos, and technical proposals. If you have any questions, we can reply to you in the shortest time.
3. Q: I have no Whatsapp or Skype, how could I contact with you
A: Send one email to me (alfred@lebron-machinery.com). Leave your contact information for me. I will contact you. It is free.
4. Q: How should I do if I would like to order my machine
A: Send us your design drawing if you have any. Or tell us your design idea. we arrange for our engineers to make the drawing for your confirmation first. After every technical detail is confirmed, meantime, we reach an agreement on the price, delivery time, after-sales service, etc. We can sign a contract then
5. Q: Can you use other brands of spare parts for me if I want?
A: Yes. We can.
