Product Details:
|
| Main Power: | 15 Kw | Hydraulic Power: | 7.5Kw |
|---|---|---|---|
| Material: | Galvanized Steel Coil | Thickness : | 1.0~3.0mm |
| Roller station: | 18 Stations | Speed: | 16~20m/min |
| Size: | Approx. 10m*1.5m*1.8m | Weight: | 10 Tons |
| High Light: | 70mm CZ Purlin Roll Forming Machine,16m/min CZ Purlin Roll Forming Machine,PPGL CZ Purlin Roll Forming Machine |
||
High Quality Long Service Time Fully Automatic CZ Purlin Roll Forming Machine
1. Description of CZ purlin roll forming machine

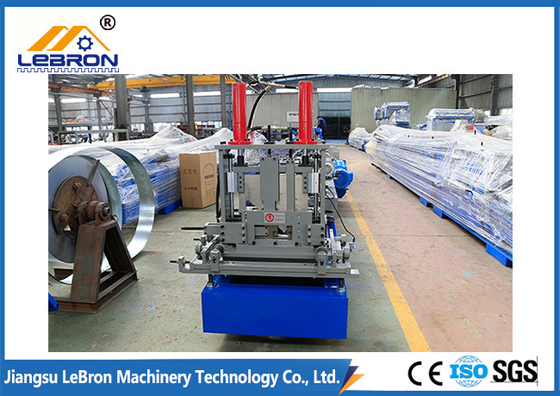

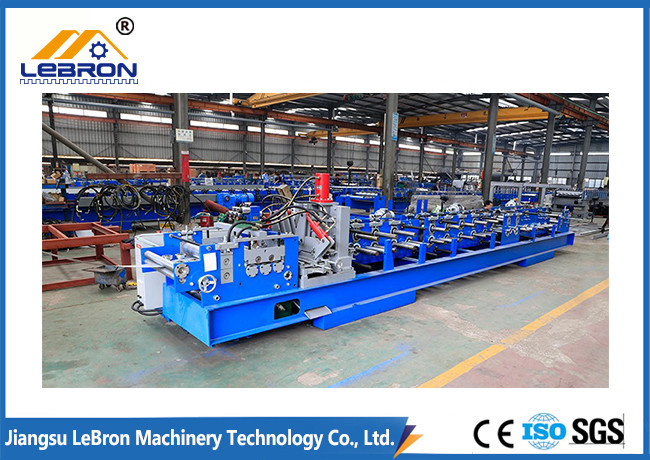

CZ Interchangeable Purlin Roll Forming Machine is a Purlin equipment that combines C-type purlin and Z-type purlin. It is a highly automated purlin roll-forming machine. Through PLC system control, It can realize the interchangeable production of C/Z type and specification purlins in a short time.

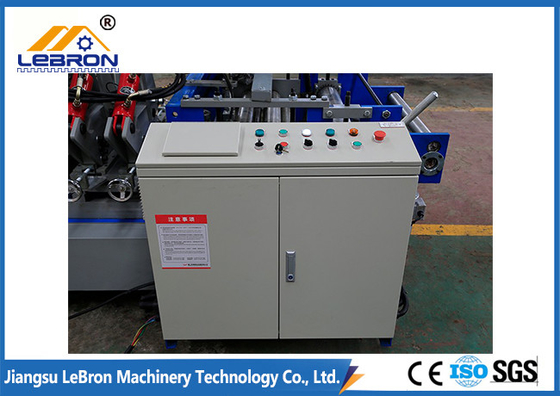

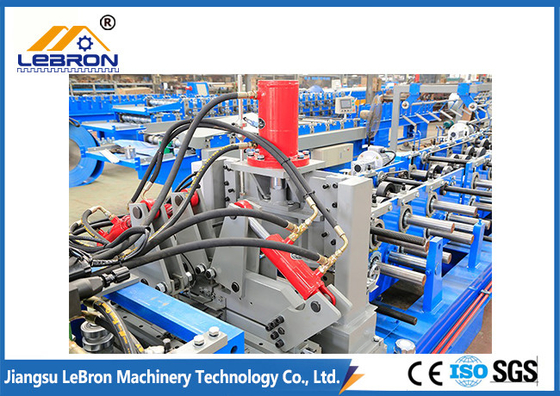

CZ Interchangeable Purlin Roll Forming Machine consists of a guider, leveling device, 2 hydraulic punching devices, a hydraulic cutting device, electric control system, a hydraulic system, and so on.
The equipment uses three reducers to fix and rotate the fixed shaft through the sprocket gear to realize the exchange of different types of purlins.
Lebron-Machinery is manufacturing high-quality Door Frame Roll Forming Machines, and most of the machines are exported to Australia, the UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore, Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique, Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
2. Technical Parameters of CZ Purlin Roll Forming Machine
| No. | Item | Description |
| 1 | Suitable Material | GI, GL, PPGI, PPGL Coil, Q235 Coil |
| 2 | Suitable Thickness | 1.5~3.0mm |
| 3 | Roller Station | 16 stations |
| 4 | Forming Speed | 8~12m/min (including the punching and cutting) |
| 5 | Roller Material | GCr15 Bearing Steel. Quenched. Hardness: 58~62 HRC |
| 6 | Main Motor Power | 15 KW |
| 7 | Shaft Material | Cr40 steel, Tempering, and Quenching |
| 8 | Shaft Diameter | 70mm |
| 9 | Cutting | Hydraulic Cutting |
| 10 | Blade Material | C12MoV, Quenched |
| 11 | Hydraulic Station Power | 7.5 KW |
| 12 | Drive Type | Single row Chain Drive |
| 13 | Machine Size | 10500mmx900mmx1500mm (L*W*H) |
| 14 | Machine Weight | Approx 8 tons |
| 15 | Machine Frame | 48mm Thick Plate |
| 16 | PLC Control System | Panasonic |
| 17 | Frequency converter | Yaskawa |
| 18 | Encoder | Omron |
| 19 | Servo motor | Yaskawa |
| 20 | Other Electrical Components | Schneider |
3. Main components of CZ Purlin Roll Forming Machine
| 1 | 5Tmanual decoiler | 1 | As one complete part |
| 2 | Guiding device | 1 | |
| 3 | Pre-cutter | 1 | |
| 4 | Forming system | 1 | |
| 5 | Transmission system | 1 | |
| 6 | Hydraulic guillotine | 2 | |
| 7 | Support table | 2 | |
| 8 | Hydraulic station | 1 | |
| 9 | Control box | 1 | |
| 10 | Spare parts and tools | 1 | As attaching list |
4. Advantages
Our factory has more than 12 years of working experience in researching and selling. Products are well sailed all over the world, got many compliments from customers.
1). Germany COPRA software design
2). 5 engineers with more than 20 years of experience
3). 15 professional technicians
4). 11 sets of advanced CNC production lines on site
5). Passionate Team
6). Installation engineers can reach your factory within 6 days
7). 1-year maintenance and whole life technical support
5. FAQ:
1Q: Are you a factory or trading company?
1A: We are a factory.
2Q: Where is your factory located?
2A: Our factory is located in Wuxi City, Jiangsu Province, China. You are warmly welcome to visit us!
3Q: What should I provide if I would love to customize the machine?
3A: We need profile drawing, and material information, such as feeding width, thickness, yield strength of steel coil, voltage and your special requirements.
4Q: What I should do if I just start to know roll forming machinery?
4A: Contact us immediately, we provide free consultant pre-sales service.
5Q: Can you make the machine according to my design or phototype?
5A: Yes. We have a professional designer for working out the most suitable design and production plan for the machine that you are going to book with us
6Q: How can I trust you that machines passed testing running before shipping?
6A: We record the testing video for your reference. You are welcome to visit us and test the machine in our factory.
7Q: Do you provide installing and training overseas?
7A: Overseas machine installation and worker training services are optional.
8Q: How is your after-sales support?
8A: We provide technical support online as well as overseas services by skillful technicians.
9Q: Guarantee period:
9A: Within one year from the date of finishing commissioning. The guarantee covers all the electric, mechanic, and hydraulic parts in the line except for the easy-worn parts.
Contact Person: Alfred
Tel: +8618115330187
