Product Details:
|
Main Power: | 15 Kw | Hydraulic Power: | 7.5Kw |
---|---|---|---|
Material: | Galvanized Steel Coil | Thickness : | 1.0~3.0mm |
Roller station: | 18 Stations | Speed: | 16~20m/min |
Size: | Approx. 10m*1.5m*1.8m | Weight: | 10 Tons |
High Light: | High Speed CZ Roll Forming Machine,1.5mm CZ Roll Forming Machine,CZ Roll Forming Machine 8m/min |
High-Quality High Speed Durable Fully Automatic CZ Purlin Roll Forming Machine
1. Description of CZ purlin roll forming machine

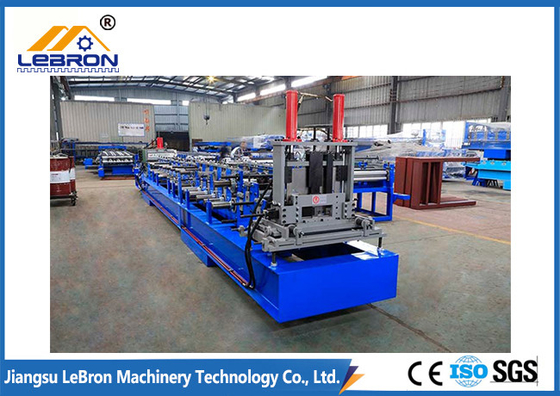

The fully automatic CZ steel integrated machine is also called C/Z interchangeable roll forming machine. It is a high-automatic purlin forming equipment controlled by a PLC computer, which can realize the interchangeable production of C/Z two types and various specifications of purlins in a short time. In the production process, the computer is automatically controlled, and there is no need to replace the forming roller when changing specifications, which changes the history of using C and Z to process two different types of purlins, saving a lot of investment cost and site space for users.

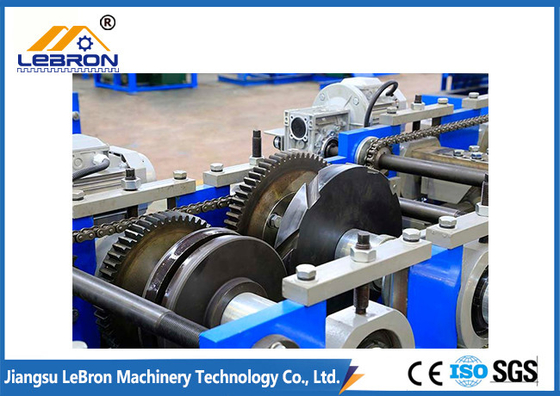

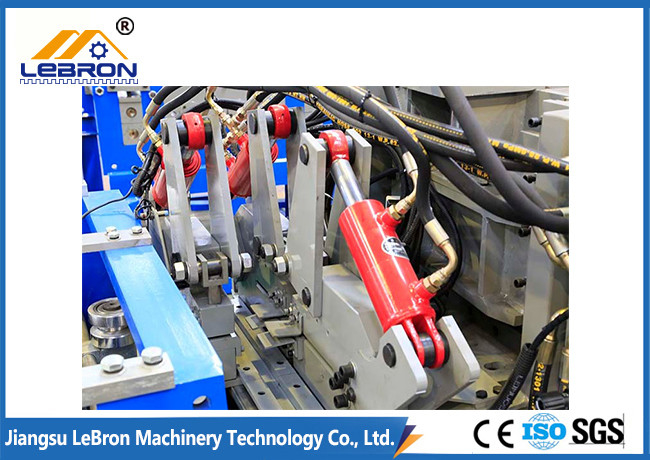

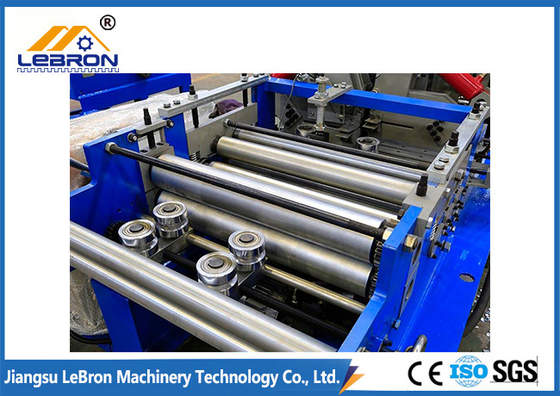

Lebron-Machinery’s CZ Purlin Roll Forming Machines are composed of guide rails, leveling devices, two hydraulic punching devices, hydraulic cutting devices, electrical control systems, hydraulic systems, etc. The equipment is rotated and fixed by the sprocket gear through three reducers Axle to realize purlin replacement of different types of purlins. C/Z swapping can be achieved by manually rotating the fixed rotating plate. The equipment can automatically punch and form according to the purlin length, longitudinal hole spacing, quantity and other parameters. The automatic C/Z Purlin Roll Forming Machine runs stably and reliably, with high punching precision and high output, which brings convenience to the users.
Lebron-Machinery is manufacturing high-quality Door Frame Roll Forming Machines, and most of the machines are exported to Australia, the UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore, Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique, Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
2. Technical Parameters of CZ Purlin Roll Forming Machine
No. | Item | Description |
1 | Suitable Material | GI, GL, PPGI, PPGL Coil, Q235 Coil |
2 | Suitable Thickness | 1.5~3.0mm |
3 | Roller Station | 16 stations |
4 | Forming Speed | 8~12m/min (including the punching and cutting) |
5 | Roller Material | GCr15 Bearing Steel. Quenched. Hardness: 58~62 HRC |
6 | Main Motor Power | 15 KW |
7 | Shaft Material | Cr40 steel, Tempering, and Quenching |
8 | Shaft Diameter | 70mm |
9 | Cutting | Hydraulic Cutting |
10 | Blade Material | C12MoV, Quenched |
11 | Hydraulic Station Power | 7.5 KW |
12 | Drive Type | Single row Chain Drive |
13 | Machine Size | 10500mmx900mmx1500mm (L*W*H) |
14 | Machine Weight | Approx 8 tons |
15 | Machine Frame | 48mm Thick Plate |
16 | PLC Control System | Panasonic |
17 | Frequency converter | Yaskawa |
18 | Encoder | Omron |
19 | Servo motor | Yaskawa |
20 | Other Electrical Components | Schneider |
3. Main components of CZ Purlin Roll Forming Machine
1 | 5Tmanual decoiler | 1 | As one complete part |
2 | Guiding device | 1 | |
3 | Pre-cutter | 1 | |
4 | Forming system | 1 | |
5 | Transmission system | 1 | |
6 | Hydraulic guillotine | 2 | |
7 | Support table | 2 | |
8 | Hydraulic station | 1 | |
9 | Control box | 1 | |
10 | Spare parts and tools | 1 | As attaching list |
4. Advantages
Our factory has more than 12 years of working experience in researching and selling. Products are well sailed all over the world, got many compliments from customers.
1). Germany COPRA software design
2). 5 engineers with more than 20 years of experience
3). 15 professional technicians
4). 11 sets of advanced CNC production lines on site
5). Passionate Team
6). Installation engineers can reach your factory within 6 days
7). 1-year maintenance and whole-life technical support
5. FAQ:
Q: How to maintain it?
A: If used frequently, best coating lubricant on the chain and two ends of the shaft every month, replace the hydraulic oil every 1-2 years.
Q: Can you be responsible for transport?
A: Yes, please tell me the destination port or address. we have rich experience in transport.
Q: Can you make the machine according to my design or phototype?
A: Yes. We have an experienced team for working out the most suitable design and production
Q: Can you supply the raw materials?
A: Yes, we can supply the galvanized steel coil, aluminum steel coil, color steel coil
Q: How is this machine's service life?
A: In normal maintenance, the service life is at least 10 years.
