|Main Power:||22kw||Hydraulic Power:||7.5Kw|
|Material:||Galvanized Steel Coil||Thickness :||1.0~3.0mm|
|Roller station:||18 Stations||Speed:||16~20m/min|
|Size:||Approx. 10m*1.5m*1.8m||Weight:||10 Tons|
High Speed CZ Purlin Forming Machine,
Automatic 20m/min CZ Purlin Forming Machine,
PPGI CZ Purlin Forming Machine
Fully Automatic High Efficiency CZ Purlin Roll Forming Machine High Speed

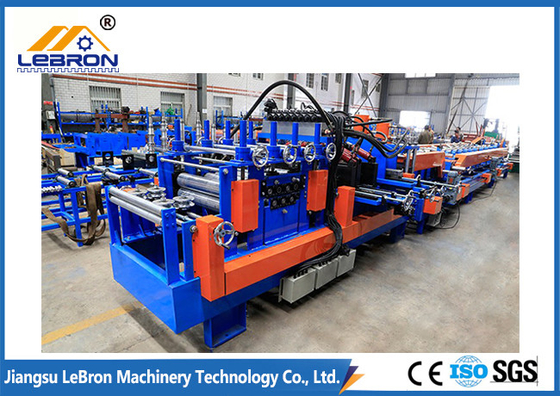

1. Description of CZ purlin roll forming machine
CZ Interchangeable Purlin Roll Forming Machine is a Purlin equipment that combines C-type purlin and Z-type purlin. It is a highly automated Purlin Roll Forming machine. Through PLC system control, It can realize the interchangeable production of C/Z type and specification purlins in a short time. The production process of Lebron Machinery's fully automatic C, Z exchange purlin machine is fully automatically controlled, and there is no need to replace the forming roller when changing specifications. It saves a lot of investment costs and site space for users.
Advantages of CZ Interchangeable Purlin Roll Forming Machine:
1). The produced C-type purlins have good straightness and good compression and bending resistance;
2). The produced Z-type purlins can be installed in reverse lap to increase the installation strength of the connection points;
3). The electrical automatic control system is equipped with an error-reporting device to ensure the safety and stability of the production line;
4). The transmission adopts a deceleration motor plus frequency conversion control, speed control, accurate and reliable length positioning;
5). Two different configuration files of CZ can be rolled, saving the user's purchase cost and floor space;
6). The conversion of the two profiles can be realized without changing the forming roller, with high speed and high efficiency.
Lebron-Machinery is manufacturing high-quality Door Frame Roll Forming Machines, and most of the machines are exported to: Australia, UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore, Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique, Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
2. Technical Parameters of CZ Purlin Roll Forming Machine
|1||Suitable Material||GI, GL, PPGI, PPGL Coil, Q235 Coil|
|3||Roller Station||16 stations|
|4||Forming Speed||8~12m/min (including the punching and cutting)|
|5||Roller Material||GCr15 Bearing Steel. Quenched. Hardness: 58~62 HRC|
|6||Main Motor Power||15 KW|
|7||Shaft Material||Cr40 steel, Tempering, and Quenching|
|10||Blade Material||C12MoV, Quenched|
|11||Hydraulic Station Power||7.5 KW|
|12||Drive Type||Single row Chain Drive|
|13||Machine Size||10500mmx900mmx1500mm (L*W*H)|
|14||Machine Weight||Approx 8 tons|
|15||Machine Frame||48mm Thick Plate|
|16||PLC Control System||Panasonic|
|20||Other Electrical Components||Schneider|
3. Main components of CZ Purlin Roll Forming Machine
|1||5Tmanual decoiler||1||As one complete part|
|10||Spare parts and tools||1||As attaching list|
4. Our Advantages
1). We are a factory with over 10 years of experience in manufacturing Roll Forming Machines;
2). We have our own powerful research and development team
3). We have more than 15 technicians.
4). 5 engineers with more than 20 years of experience
5). We have an advanced Laser Cutting Machine, CNC Machining Center, Polishing Line, Painting Line, etc. This advanced production equipment guarantees the good quality of each part and the appearance of our machines;
6). Our machines have reached International Inspection Standards;
Q1. What is your advantage?
A1: We have over 12 years of experience in roll-forming machine production. Experienced engineers and workers will be helpful for quality control.
Q2. Do you have after-sales support?
A2: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers' specifications, using top-brand components.
Q4. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. We have rich experience in transporting.
Q5. How to visit your company?
A5: 1). Fly to Wuxi airport, and we will pick you up.
2). Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao railway station to Wuxi railway station, then we can pick you up.
