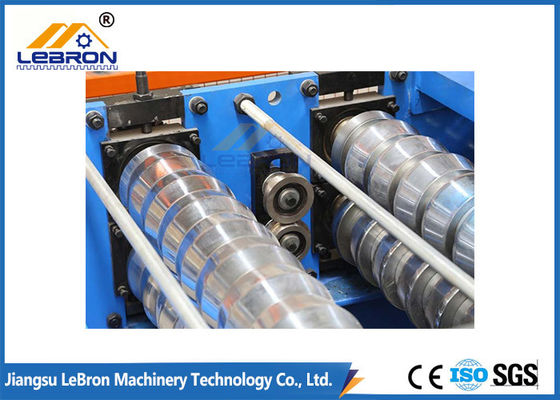

Automatic 0.3mm PPGI Corrugated Sheet Roll Forming Machine 235MPA High Capacity

Automatic 0.3mm PPGI Corrugated Sheet Roll Forming Machine 235MPA High Capacity
Automatic 0.3mm PPGI Corrugated Sheet Roll Forming Machine 235MPA High Capacity

Large Image :  Automatic 0.3mm PPGI Corrugated Sheet Roll Forming Machine 235MPA High Capacity

Product Details:
Place of Origin: China
Brand Name: Lebron-Machinery
Certification: ISO/CSA/Soncap
Model Number: YX19-76.2-1181
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD8500~USD15000 per Set
Packaging Details: Export Sea-Worthy packing with each set tied and protected
Delivery Time: 35 working days
Payment Terms: L/C, T/T,
Supply Ability: 30 Sets per Month
Detailed Product Description
Feeding Material: GI, PPGI, GL, PPGL Coil Yield Strength: 235MPA-550MPA
Raw Material Thickness: 0.3-0.8mm Raw Material Width: 1250mm
Roller Station: 20 Stations Forming Speed: 15-20m/min
High Light:

PPGI Corrugated Sheet Roll Forming Machine

,

0.3mm Corrugated Sheet Roll Forming Machine

,

Corrugated Sheet 235MPA Roll Forming Machine

Long Service Time High Capacity Automatic Corrugated Sheet Roll Forming Machine





1. Description of Corrugated Sheet Roll Forming Machine



Corrugated roof sheet roll forming machine is widely used nowadays all around the world, it can produce different shapes and types of roof tile sheets, the forming speed of the manual roof tile machine can reach 16 meters per minute. Our corrugated roof sheet roll forming machines are customized, if you have the roof tile sheet drawings, please let me know, then we can produce the machine for you.



This YX19-76.2-1181 Corrugated Sheet Roll Forming Machine is a common metal roll forming equipment that produces YX19-76.2-1181 Corrugated Sheets, which are used for the cover on the Stacker. It makes the corrugated sheets from materials of 0.3-0.8mm thickness, and 1250mm width of steel coil. The effective width is 1181mm, the wave distance is 76.2mm, and the wave height is 19mm



LBM factory is manufacturing high-quality storage rack roll forming machines and exports them to foreign countries such as India, Malaysia, Indonesia, Vietnam, Thailand, Russia, Syria, Saudi Arabia, Singapore, etc.





2. Major Technical Parameters of Corrugated sheet roll forming machine



No. Item Description Remark
1 Machine Size 9000mm*1500mm*1200mm
2 Machine Weight Approx. 8 Tons
3 Feeding Material GI, PPGI, GL, PPGL Coil
4 Yield strength 235MPA-550MPA
5 Raw Material Thickness 0.3-0.8mm
6 Raw Material Width 1250mm
7 Main Power 7.5 KW
8 Forming Speed 15-20m/min
9 Forming stations 19 stations
10 Machine Base 350H Beam Welding
11 Wall Panel Thickness 20mm
12 Roller 45# steel, quenched, coated with 0.05mm hard chrome
13 Shaft Material High grade 45# steel
14 Shaft Diameter Dia 80mm
15 Hydraulic Cutter Type Post Cut
16 Material of cutting dies Cr12 steel, heat treatment
17 Hydraulic Power 4.0 KW
18 PLC brand Siemens





3. Major Components



No Name Quantity
1 Decoiler 1 Set
2 Main machine Feeding device 1 Set
Roll forming system 1 Set
Punch device 1 Set
Post cutting device 1 Set
Hydraulic system 1 Set
3 Electric control system 1 Set
4 Out-put Table 2 Sets





4. FAQ:



1. Q: Are you a manufacturer?

A: Yes, we are a manufacturer with over 11 years of experience.



2. Q: If I am new in this field. How could I understand the machine very well?

A: We have a very professional sales team and technology team. We will provide you the detailed introductions by photos, videos, and technical proposals. If you have any questions, we can reply to you in the shortest time.



3. Q: I have no Whatsapp and Skype, how could I contact with you

A: Send one email to me (alfred@lebron-machinery.com). Leave your contact information for me. I will contact you. It is free.



4. Q: How should I do if I would like to order my machine

A: Send us your design drawing if you have any. Or tell us your design idea. we arrange for our engineers to make the drawing for your confirmation first. After every technical detail is confirmed, meantime, we reach an agreement on the price, delivery time, after-sales service, etc. We can sign a contract then



5. Q: Can you use other brands of spare parts for me if I want.

A: Yes. We can.





5. Our Advantages




1). We are a factory with over 10 years of experience in manufacturing Roll Forming Machines;



2). We have our own powerful research and development team



3). We have more than 15 technicians.



4). 5 engineers with more than 20 years of experience



5). We have an advanced Laser Cutting Machine, CNC Machining Center, Polishing Line, Painting Line, etc. This advanced production equipment guarantees the good quality of each part and the appearance of our machines;



6). Our machines have reached the International Inspection Standards;





Automatic 0.3mm PPGI Corrugated Sheet Roll Forming Machine 235MPA High Capacity 0





Automatic 0.3mm PPGI Corrugated Sheet Roll Forming Machine 235MPA High Capacity 1









Automatic 0.3mm PPGI Corrugated Sheet Roll Forming Machine 235MPA High Capacity 2





Automatic 0.3mm PPGI Corrugated Sheet Roll Forming Machine 235MPA High Capacity 3
