Product Details:
Payment & Shipping Terms:
|
| Raw Material: | Galvanized Steel, Color Steel Coil | Thickness: | 0.3~0.8mm |
|---|---|---|---|

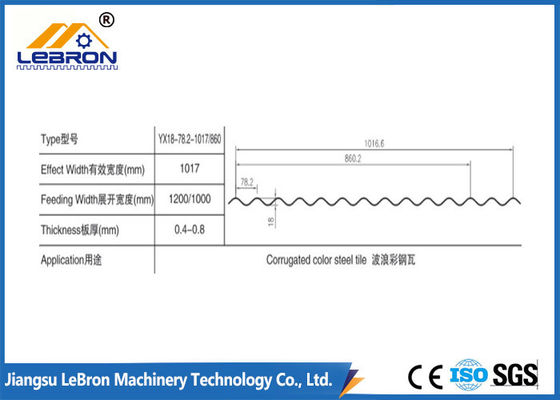

| Feeding Width: | 1250mm | Cover Width: | 1017/860mm |
| Power: | 5.5KW | Voltage: | 380V/50Ph/3Phase |
| High Light: | corrugated roof roll forming machine,roofing corrugated sheet roll forming machine |
||
High-Efficiency Blue Color Corrugated Sheet Roll Forming Machine Mitsubishi PLC
1. Main Technical Parameters of corrugated roofing sheet roll forming machine:
1). Main Motor Power: 5.5KW
2). Drive Type: Chain
3). Machine Frame: The machine frame and structural parts are made of national standard 350H steel, reduce the stress after welding
4). Side-wall Panel: Material: Q235, Thickness: 25mm. Finish-machining
5). Welding material: Use high-grade Flux-core welding wire. The strength of the machine frame and structure parts is nearly the same as Vessel parts quality standard
6). Roller: Material: No. 45 steel, Finishing-machining. coated with hard chrome, Chrome thickness: 0.05mm. Quench heat-treatment. Machining key-ways on the roller, set pin-keys
7). Roller Shafts: Material: No. 45 Steel. Finishing-machining. Diameter: φ75 mm.
All the roller shafts machining key-ways, set pin-keys.
8). Cutter Blade Material: High-quality Cr12 steel. Finishing-machining. Quenched heat-treatment. HRC 58-62. Wire-electrode Cutting. Finish-grinding.
9). Liner Bushing: 45# Steel Seamless Pipe. Finishing-machining. Make sure the size and parallelism. Black painting treatment.
10). Bearing: Type: 6210 types, etc. Brand: SXM. Origin: Jiangsu, China
11). Rack rows: 22 rows
12). Forming Roller rows: 21 rows
13). Roll forming speed: approx 10~16m/min (Without cut time)
14). Machine Size: About 8500*1700*1500mm
2. Electric Appliances
1). Frequency converter: Mitsubishi Brand
2). Computer PLC: Mitsubishi Brand
3). Touch Screen: Mitsubishi Brand
4). Low Voltage Apparatus: Schneider Brand
5). Encoder: Mitsubishi Brand
6). Hydraulic Pump Station Motor Power: 2.2 Kw
7). Hydraulic Oil Pump type: YBI-10
8). Hydraulic Valve: Beijing Huade Brand
3. Main Components of corrugated roofing sheet roll forming machine
| No. | Items | Quantity | |
| 1 | 5-Ton Coil Decoiler | 1 set | |
| 2 | Main Roll Former | Direction Guilder | 1 set |
| Rolling System | 1 set | ||
| Post-cutting Device | 1 set | ||
| 3 | Supporting Tables for Finished Products | 2 sets | |
| 4 | Hydraulic Station for Cut Device | 1 set | |
| 5 | PLC Control System cabinet | 1 set | |
| 6 | Tools Box with Spare Parts | 1 set | |
