Product Details:
|
| Size: | 8.0m*1.5m*1.2m (L*W*H) | Weight: | Approx 12 Tons |
|---|---|---|---|
| Speed: | 14~16m/min | Roller: | GCr15 Steel, CNC Lathes, Quenched, |
| Shaft: | Dia 95mm | Cut Blade: | C12MoV Steel, Quenched |
| High Light: | customized Storage Rack Roll Forming Machine,CSA Storage Rack Roll Forming Machine,CSA Rack Roll Forming equipment |
||

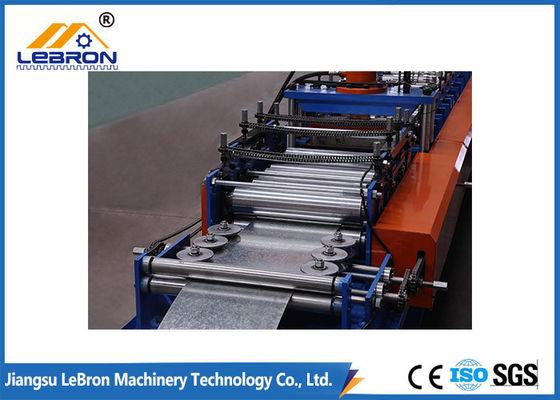

1. Description of Storage Rack Roll Forming Machine
The storage rack roll forming machine is customized equipment, designed and produced according to the production requirements and drawings provided by the customer, and the entire production line can be operated by one person.
The processing flow of automatic equipment for rack column forming:
Uncoiling-feeding-passive leveling-stamping-forming-cutting and receiving
Product advantages of shelf column forming automation equipment:
Customized equipment: Customers can customize according to their own production requirements, product requirements, plant requirements, etc., to meet customers' different requirements.
Automation: Using technology, integrating many production processes, one person can complete the operation, saving labor and production costs.
High speed: highly automated and intelligent, saving production cycle and improving production efficiency.
Safety: PLC controller is adopted and multiple safety protections are built-in to avoid accidental injury.
Many types of parts are used, such as Japan's Mitsubishi, Schneider, Pepperl+Fuchs, Omron, etc., to reduce failure rates, save production time costs, improve production efficiency, and reduce maintenance costs.
2. Technical Parameters Of Storage Rack Roll Forming Machine
| Suitable material: | Galvanized Steel, Cold Rolled Steel, Stainless Steel Coil |
| The thickness of Raw material | 2.0-3.0mm |
| Yield strength of the material | 340Mpa-550Mpa |
| Forming speed: | about 14~16m/min |
| Main motor power: | 30Kw |
| Hydraulic station power | 7.5Kw |
| Controlling system | Siemens PLC, Yaskawa Converter |
| Machines weight | about 12T |
| Machines size | about 8.0m×1.5m× 1.2m |
| Roller Material | GCr15 steel, coated with chrome, quenched heat treatment |
| Shaft Material | No.45 carbon wrought steel, precision machined, quenched |
| Shaft Diameter | Dia 95mm |
| Cutter blade and punch dies | Cr12MoV mold steel with quenched treatment |
| No. of Work Station | 30 stations |
| Frame |
Outside is cast iron, the surface needed polish and paint. Inside is 60# forge and press metal |
3. Main Components Of Storage Rack Roll Forming Machine
| No. | Item | Quantity | Remark |
| 1 | 5-Ton Hydraulic Decoiler | 1 | As one complete part |
| 2 | Feeding Guide & Leveling device | 1 | |
| 3 | Roll Forming Unit | 1 | |
| 4 | Post Hydraulic Cutting Device | 1 | |
| 5 | Electric Control Cabinet | 1 | |
| 6 | Hydraulic Station | 2 | |
| 7 | Support Table | 2 |
4. FAQ
1). Q: Are you a manufacturer, trading company?
A: We are a manufacturer, and we have built up our company since 2007.
2). Q: Where is your factory located?
A: Our factory address is: No. 551, the Zhenze West Road, Huazhuang Street, Binhu District, Wuxi City, Jiangsu, China
3). Q: How can I get to your factory?
A: Our factory is near Shanghai Airport, we can pick you up at the airport. Or you can by plane direct to Wuxi airport. We can pick you up.
4). Q: If I will need to stay in your place for a few days, is that possible to book the hotel for me?
A: It’s always my pleasure, a hotel booking service is available.
5. Our Advantages
1). We can make and design all kinds of roll forming machines according to customers’ requests.
2). This is very perfect and durable equipment. We have more than 11 years' experience.
3). This kind of machine has the best quality and the best price.
4). Our product has been exported to many regions and won a high reputation because of the high quality and reasonable price.
