Product Details:
Payment & Shipping Terms:
|
| Weight: | About 10000Kgs | Size: | About 25m X 2m X 1.6m (L X W X H) |
|---|---|---|---|
| Rollers Stations: | 22-26 Rolls | Diameter Of Forming Rollers Shafts: | 82mm |
| Production Speed: | 4-6m/min | ||
| High Light: | upright roll forming machine,rack roll forming machine |
||

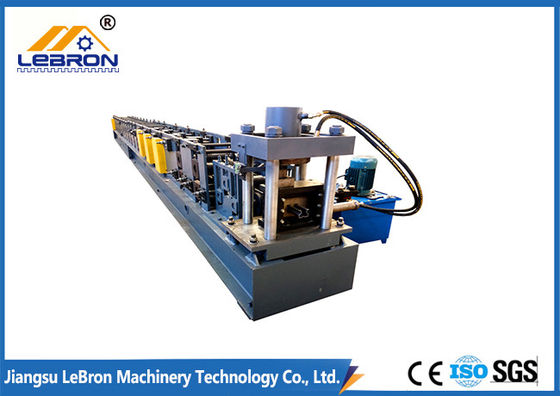

1. Description of storage rack roll forming machine:
Our machine can produce the decoration buckles, light-gauge steel joists, shelf columns, door frame parts and other profiled accessories. It has the advantages such as high production efficiency, stable product sizes, less investments, etc.
Company according to the different industry use produce the different profiled accessory roll forming machines. It is widely used in the areas such as construction decorations, doors manufacturing, shelf fabrication, logistics, etc.
LBM factory is manufacturing high quality storage rack roll forming machines, and exported to the foreign countries such as India, Malaysia, Indonesia, Vietnam, Thailand, Russia, Syria, Saudi Arabia, Singapore, etc.
2. Storage rack roll forming machine technical details:
| Machine Specifications | |
| Weight | About 10000kgs |
| Whole line’s dimension | About 25m x 2m x 1.6m (L x W x H) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized or Galvalume Coils |
| Thickness | 2.0-2.5mm |
| Coil width | 238mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 22-26 |
| Diameter of forming rollers shafts | 82mm |
| Roll Forming Speed | 8-10m/min |
| Production Speed | 4-6m/min |
| Forming rollers material | CR12 mould steel, with quenched treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 15kw |
| Hydraulic unit motor power: 7.5kw | |
| Electric voltage | According to customer’s requirement |
3. Main Componets
| Decoiler (manual and automatic for options) | 1 set |
| Guiding device | 1 set |
| Leveling system | 1 set |
| Punching system | 1 set |
| Roll Forming system | 1 set |
| Hydraulic Cutting system | 1 set |
| PLC control box | 1 set |
| Hydraulic unit | 1 set |
| Run outs tables | 1 set |
4. Our Service and Advantages:
