Product Details:
|
| Main Power: | 30Kw | Hydraulic Power: | 7.5Kw |
|---|---|---|---|
| Speed: | 14~16m/min | Roller Station: | 30 Stations |
| Shaft: | Dia 95mm | Cut Blade: | C12MoV Steel, Quenched |
| High Light: | PLC Storage Rack Roll Forming Machine,95mm Shaft rack roll forming machine,PLC c channel roll forming machine |
||

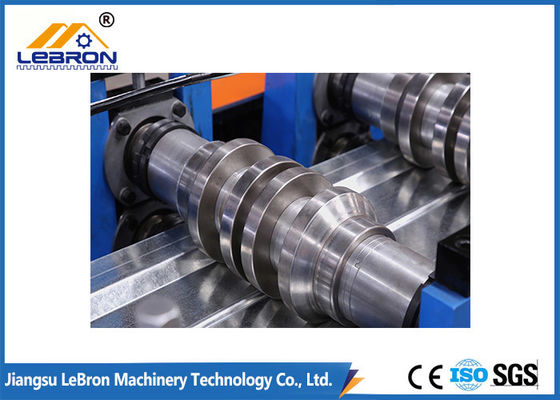

1. Description of Storage Rack Roll Forming Machine
Storage Rack Roll Forming Machine could be used to make storage racks in batch fully automatic. The thickness could be from 2.0 to 3.5 mm. Different from the medium-sized shelf, for filling the heavy work, there are some basic elements of the design of heavy goods racks to obey.
1.The weight of the cargo and the pallet
Heavy shelves of goods, in general, to be put on the shelf through the tray, so when designing pillar, we have to take total weight of the goods into consideration.
2.How many layers want to bear
For heavy-duty, normally two layers. This is an important basis for us to calculate the length of each layer of the load and the length of each pillar.
3.The net height of the workshop and forklift lifting height for heavy-duty, also use forklift lifting, so if height is higher than space will be a troublesome thing. And there are also many other elements, but when design machines and checking customer design, we will take those elements into consideration.
2. Technical Parameters Of Storage Rack Roll Forming Machine
| Suitable material: | Galvanized Steel, Cold Rolled Steel, Stainless Steel Coil |
| The thickness of Raw material | 2.0-3.0mm |
| Yield strength of the material | 340Mpa-550Mpa |
| Forming speed: | about 14~16m/min |
| Main motor power: | 30Kw |
| Hydraulic station power | 7.5Kw |
| Controlling system | Siemens PLC, Yaskawa Converter |
| Machines weight | about 12T |
| Machines size | about 8.0m×1.5m× 1.2m |
| Roller Material | GCr15 steel, coated with chrome, quenched heat treatment |
| Shaft Material | No.45 carbon wrought steel, precision machined, quenched |
| Shaft Diameter | Dia 95mm |
| Cutter blade and punch dies | Cr12MoV mold steel with quenched treatment |
| No. of Work Station | 30 stations |
| Frame |
Outside is cast iron, the surface needed polish and paint. Inside is 60# forge and press metal |
3. Main Components Of Storage Rack Roll Forming Machine
| No. | Item | Quantity | Remark |
| 1 | 5-Ton Hydraulic Decoiler | 1 | As one complete part |
| 2 | Feeding Guide & Leveling device | 1 | |
| 3 | Roll Forming Unit | 1 | |
| 4 | Post Hydraulic Cutting Device | 1 | |
| 5 | Electric Control Cabinet | 1 | |
| 6 | Hydraulic Station | 2 | |
| 7 | Support Table | 2 |
4. After-sell service
A. Foreign debugging
If you need it, we will arrange for our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day
B. Guarantee period
The warranty will be a maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by humans are excluded).
C. Training
During installation and adjustment of the equipment, our engineers shall provide the training to
buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.
D. Lifetime services
Life-time services to every customer.
