14m/Min GCr15 Roller Steel Roll Forming Machine with 30 stations

14m/Min GCr15 Roller Steel Roll Forming Machine with 30 stations
14m/Min GCr15 Roller Steel Roll Forming Machine with 30 stations 14m/Min GCr15 Roller Steel Roll Forming Machine with 30 stations 14m/Min GCr15 Roller Steel Roll Forming Machine with 30 stations 14m/Min GCr15 Roller Steel Roll Forming Machine with 30 stations

Large Image :  14m/Min GCr15 Roller Steel Roll Forming Machine with 30 stations

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lebron-Machinery
Certification: ISO/CSA/Soncap
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD20000~40000 Per Set
Packaging Details: Standard Export Packing with each machine tied and protected in the container
Delivery Time: 30-40 Days
Payment Terms: L/C, T/T,
Supply Ability: 25 Sets per Month

14m/Min GCr15 Roller Steel Roll Forming Machine with 30 stations

Description
Size: 8.0m*1.5m*1.2m (L*W*H) Weight: Approx 12 Tons
Speed: 14~16m/min Roller: GCr15 Steel, CNC Lathes, Quenched,
Shaft: Dia 95mm Cut Blade: C12MoV Steel, Quenched
High Light:

GCr15 Roller profile sheet manufacturing machine

,

GCr15 Roller channel rolling machine

,

14m/min channel making machine

Siemens PLC Control GCr15 Steel Roller Storage Rack Roll Roll Forming Machine



1. Description of Storage Rack Roll Forming Machine

Storage rack forming machine uses steel as raw material, by continuous cold rolling molding to produce complex profiles section, type multiple, versatile. We can according to customer design, manufacture different specifications of cold-formed, paint unit equipment.

Lebron-Machinery is producing high-quality storage rack roll forming machines and exported to foreign countries, such as Saudi Arabia, Singapore, India, Russia, Ethiopia, Angola, etc.


2. Technical Parameters Of Storage Rack Roll Forming Machine


Suitable material: Galvanized Steel, Cold Rolled Steel, Stainless Steel Coil
The thickness of Raw material 2.0-3.0mm
Yield strength of the material 340Mpa-550Mpa
Forming speed: about 14~16m/min
Main motor power: 30Kw
Hydraulic station power 7.5Kw
Controlling system Siemens PLC, Yaskawa Converter
Machines weight about 12T
Machines size about 8.0m×1.5m× 1.2m
Roller Material GCr15 steel, coated with chrome, quenched heat treatment
Shaft Material No.45 carbon wrought steel, precision machined, quenched
Shaft Diameter Dia 95mm
Cutter blade and punch dies Cr12MoV mold steel with quenched treatment
No. of Work Station 30 stations
Frame

Outside is cast iron, the surface needed polish and paint. Inside is 60# forge and press metal


3. Main Components Of Storage Rack Roll Forming Machine


No. Item Quantity Remark
1 5-Ton Hydraulic Decoiler 1 As one complete part
2 Feeding Guide & Leveling device 1
3 Roll Forming Unit 1
4 Post Hydraulic Cutting Device 1

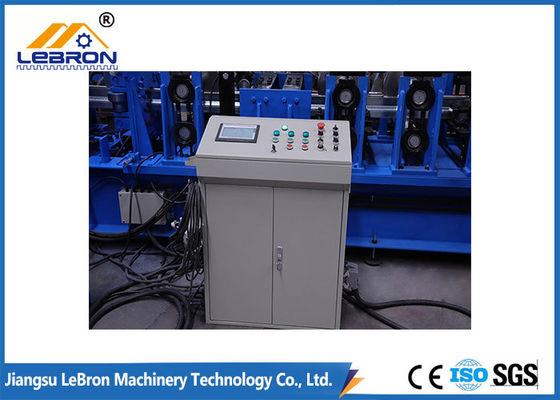

5 Electric Control Cabinet 1
6 Hydraulic Station 2
7 Support Table 2




4. FAQ

1). You are a trade company or factory?
A1): Funded in 2007, LBM is a professional manufacturer with over 10 years of experience

2). How long will the machine be made?
A2): Normally, a storage rack roll forming machine could be made within 35 working days. If you need machines in a hurry, we can make it for you in less than a month.

3). How to visit your company?
A3): a.Fly to Wuxi airport, we can pick you up.
b.Fly to Shanghai Airport: By high-speed train From Shanghai Hongqiao to Wuxi Railway station, we will pick you up.

4. Does one machine can only produce one style panel profile?
A4): Not exactly. For wider and double layer making machine. It can produce more than 6 kinds of panels.
