Product Details:
|
| Suitable Material: | PPGI, PPGL, GI, GL Coil | Thickness: | 0.3~0.8mm |
|---|---|---|---|
| Shaft: | 45#Steel. Precesion Machined. Quenched | Diameter: | 70mm |
| Forming Speed: | 15~20m/min | Roller Station: | 19 Stations |
| High Light: | automatic Corrugated Sheet Roll Forming Machine,0.8mm Corrugated Sheet Roll Forming Machine,GGPL corrugated roof sheet making machine |
||
5.5Kw High Speed Fully Automatic Corrugated Sheet Roll Forming Machine Siemens PLC
1. Description of Corrugated Sheet Roll Forming Machine
YX 18-76-838 Corrugated Roof Sheet Roll Forming Machine is a common metal roll forming equipment that produces YX18-76-838 corrugated Metal Roofing and Siding Panels. In our daily life, we can see many fans of corrugated metal sheets.
Compared to traditional clay tiles, stone or brick cladding, corrugated sheets give a traditional look, yet weigh lighter and have a longer life circle. In fact, corrugated metal roofing is the only cladding that should be used in conservation areas.
YX18-76-838 Corrugated Roof Sheet Roll Forming Machine makes metal roofing and siding panels from materials of 0.3-0.8mm thickness and 914-1250mm widths. 838mm effective width, 76mm wave distance, and 18mm wave height.
Lebron-Machinery factory is manufacturing high-quality storage rack roll forming machines and exported them to foreign countries such as India, Malaysia, Indonesia, Vietnam, Thailand, Russia, Syria, Saudi Arabia, Singapore, etc.
2. Technical parameters of Corrugated Sheet Roll Forming Machine
| Machine Specifications | |
| Weight | About 12000kgs |
| Size | About 9.5m*1.8m*1.5m (Length*Width*Height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | GI, GL, GGPI, GGPL |
| Thickness | 0.3-0.8mm |
| Coil width | 1000mm, 1100mm, 1250mm |
| Yield Strength | 245Mpa-550Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 19 |
| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mold steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 5.5kw |
| Hydraulic unit motor power: 4kw | |
| Electric voltage | 380v/50hz/3phase (or custom) |
3. Corrugated Sheet Roll Forming Machine Main Components
| NO. | Name | Unit | Qty |
| 1. | Roll Forming Machine | Set | 1 |
| 2. | Hydraulic/Manual Decoiler | Set | 1 |
| 3. | Feeding & Leveling | Set | 1 |
| 4. | PLC Control System | Set | 1 |
| 5. | Hydraulic Punching Device | Set | 1 |

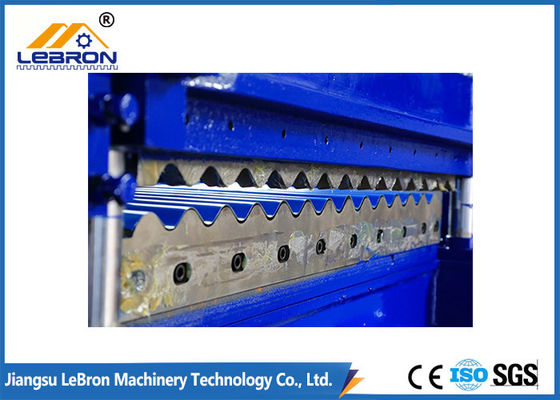

| 6. | Hydraulic Cutting Device | Set | 1 |
| 7. | Hydraulic Station | Set | 1 |
| 8. | Manual Out Table | Set | 2 |
4. FAQ:
Q1. What is your advantage?
A1: We have over 11 years of experience in roll-forming machine production. Experienced engineers and workers will be helpful for quality control.
Q2. Do you have after-sales support?
A2: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers' specifications, using top brand components.
Q4. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. We have rich experience in transporting.
Q5. How to visit your company?
A5: 1). Fly to Wuxi airport, we will pick you up.
2). Fly to Shanghai Airport: By high-speed train From Shanghai Hongqiao railway station to Wuxi railway station, then we can pick you up.
