|Feeding Material:||Galvanized Steel/Color Steel Coil||Suitable Thickness:||0.3~0.8mm|
|Roller:||45# Steel. Precision Machined. Quenched||Roller Station:||16 Stations|
|Shaft Dia.:||Dia 75mm||Voltage:||380V/50Hz/3Ph|
Hat metal roll forming machine,
0.8mm metal roll forming machine,
0.8mm steel roll forming machine

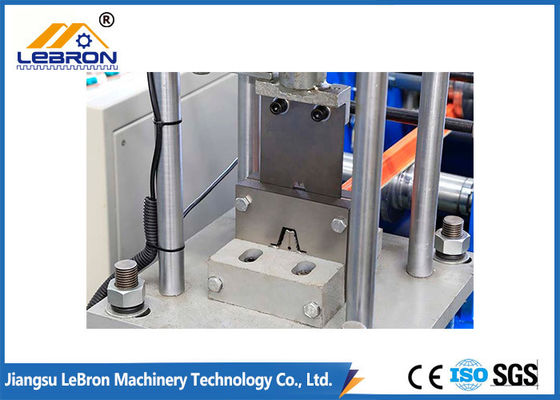

Easy Operation Automatic Light Steel Keel Roll Forming Machine Hat Shape Roll Forming Machine
1. Hat Shape Roll Forming Machine Description:
The Hat Shape Roll Forming Machine can produce hat shape profiles continuously. Comparing with producing by the bending machines, the former is more effective, saving manual costs.
The complete Hat Shape Roll Forming Machine including the Decoiler, Main Roll Forming Machine, The PLC control system, and Ran-out tables. Our roll forming machine equipped with a computer control system. You just need to program in the computer the piece and length you need, then the roll forming machine produces it automatically. The machine is easy to operate and operate stably.
2. Technical Parameters of Hat Shape Roll Forming Machine
|1||Suitable Material||Galvanized Steel Coil, Color Steel Coil|
|2||Thickness of sheet||0.3-0.8mm|
|3||Voltage||380V/50Hz/3Ph (can custom)|
|5||Feeding Width||Approx 104mm|
|7||Main Power||7.5 Kw|
|8||Hydraulic Power||4 Kw|
|9||Roller Station||16 stations|
|10||Roller Material||45# steel. Precision machined. Quenched|
|11||Shaft Material||45# steel. Precision machined. Quenched|
|13||Forming Speed||Over 18m/min|
|14||Weight||Approx 8 Tons|
3. Main Components of Hat Shape Roll Forming Machine
|2||Guider $ Leveler||set||1|
|3||Main Roll Forming Machine||set||1|
4. After-Sale FAQ:
1). Q: How to acquire service support?
A: Lebron-Machinery is doing its best to provide timely and convenient service support for the customers, the contents of services including before-sale technical counseling, field installation, operate technical training, application solution training, and troubleshooting support, etc.
2). Q: After purchase Lebron-Machinery’s machine, what kind of training could Lebron-Machinery provide?
A: Lebron-Machinery will provide 7 days’ free training. The training place can be in Lebron-Machinery company or in places designated by the customer where installation takes place, this can all be predetermined by clients in the contract.
3). Q: What kind of warranty do Lebron-Machinery’s roll forming machines provide?
A: Except for the consumables, the whole machine has a one-year limited warranty.
4). Q: After buying Lebron-Machinery’s equipment, are there technicians in charge of supporting on-site installation?
A: Yes, if the equipment is directly sold from Lebron-Machinery, we will arrange experienced technicians to support the installation and collaboration when the machine arrives. If the device is sold by Lebron-Machinery’s distributors, we will authorize them to send experienced engineers to support the installation and collaboration when the machine arrives. Except the contract made other agreements for the installation.
5. Our Service
Install and Training:
If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, manual and video are provided to show how to install and operate.
We provide 24-hour online service for our customers.
a.The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller.
When technique men go to the buyer's place to debug the machines, the buyer should pay the
the expense of accommodation, and round-trip tickets for the seller’s men. and pay the technician USD100 per day.
b. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.
