Product Details:
Payment & Shipping Terms:
|
Main Power: | 7.5KW | Hydraulic Power: | 4KW |
---|---|---|---|
Feeding Width: | Approx 104mm | Roller Stations: | 16 Stations |
Forming Speed: | Over 18m/min | Weight: | Approx 8 Tons |
High Light: | 104mm light steel frame machine,PLC light steel frame machine,CE light gauge steel machine |
Siemens PLC Control Hat Shape Roll Forming Machine Light Steel Keel Roll Forming Machine
1. Hat Shape Roll Forming Machine Description:

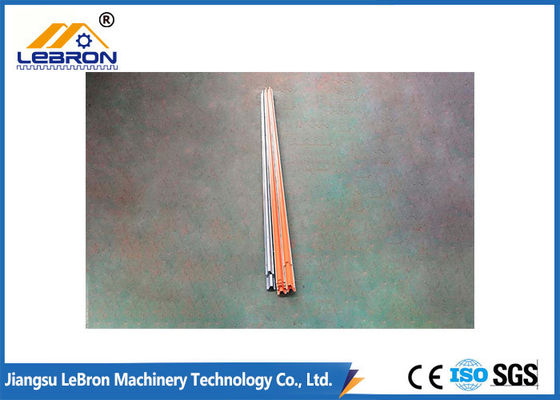

The Hat Shape Roll Forming Machine can produce hat shape profiles continuously. Comparing with producing by the bending machines, the former is more effective, saving manual costs.
The complete Hat Shape Roll Forming Machine including the Decoiler, Main Roll Forming Machine, The PLC control system, and Ran-out tables. Our roll forming machine equipped with a computer control system. You just need to program in the computer the piece and length you need, then the roll forming machine produces it automatically. The machine is easy to operate and operate stably.
2. Technical Parameters of Hat Shape Roll Forming Machine
No. | Item | Description |
1 | Suitable Material | Galvanized Steel Coil, Color Steel Coil |
2 | Thickness of sheet | 0.3-0.8mm |
3 | Voltage | 380V/50Hz/3Ph (can custom) |
4 | Shaft Diameter | 75mm |
5 | Feeding Width | Approx 104mm |
6 | Machine Size | 4000mm*1000mm*1200mm |
7 | Main Power | 7.5 Kw |
8 | Hydraulic Power | 4 Kw |
9 | Roller Station | 16 stations |
10 | Roller Material | 45# steel. Precision machined. Quenched |
11 | Shaft Material | 45# steel. Precision machined. Quenched |
12 | Drive Mode | Chain |
13 | Forming Speed | Over 18m/min |
14 | Weight | Approx 8 Tons |
3. Main Components of Hat Shape Roll Forming Machine
No. | Name | Unit | Qty |
1 | Decoiler | set | 1 |
2 | Guider $ Leveler | set | 1 |
3 | Main Roll Forming Machine | set | 1 |
4 | Cutting System | set | 1 |
5 | Output Table | set | 1 |
6 | Control System(PLC) | set | 1 |
7 | Hydraulic station | set | 1 |
4. Our Advantages
Our factory has more than 10 years’ working experience in researching and selling. Products are well sailed all over the world, got many compliments from customers.
1). Germany COPRA software design
2). 5 engineers with more than 20 years of experience
3). 15 professional technician
4). 11 sets advanced CNC production lines on site
5). Passionate Team
6). Installation engineers can reach your factory within 6 days
7). 2 years maintenance and whole life technical support
5. FAQ:
1. Q: Are you a manufacturer, trading company?
A: We are a manufacturer, and we have built up our company since 2007.
2. Q: Where is your factory located?
A: Our factory address is: No. 551, the Zhenze West Road, Huazhuang Street, Binhu District, Wuxi City, Jiangsu, China
3. Q: How can I get to your factory?
A: Our factory is near Shanghai Airport, we can pick you up at the airport. Or you can by plane direct to Wuxi airport. We can pick you up.
4. Q: If I will need to stay in your place for a few days, is that possible to book the hotel for me?
A: It’s always my pleasure, a hotel booking service is available.
